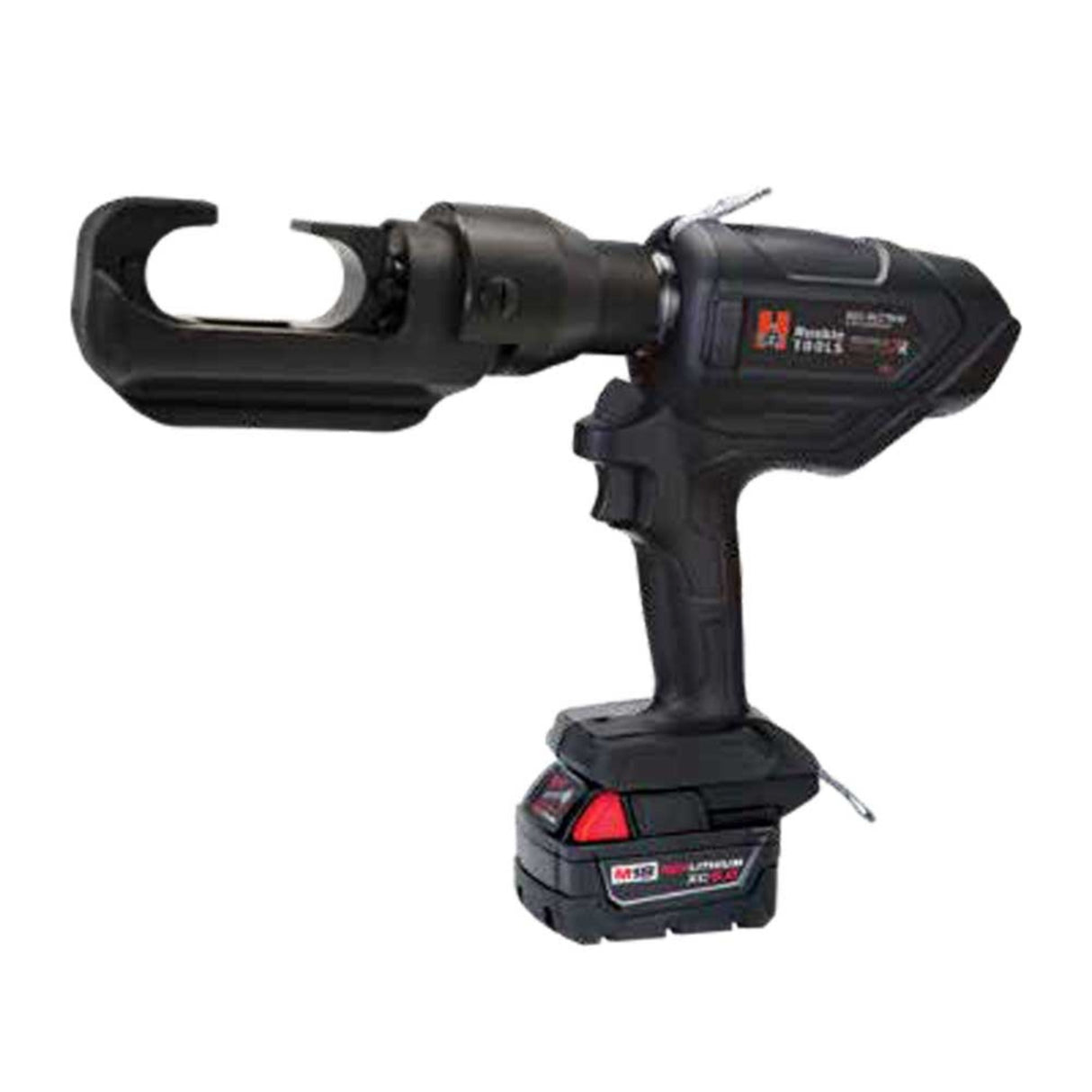

15-Ton Pistol Grip C-Head Crimping Tool | REC-RLC7610 | Milwaukee M18
15 Ton Pistol Grip C-Head Crimping Tool | REC-RLC7610 | Milwaukee M18 Compatible — Product Overview
Engineered for the demanding requirements of utility linemen, the Huskie REC-RLC7610 15 Ton Pistol Grip Crimping Tool Kit delivers exceptional power, durability, and precision for overhead and underground electrical applications. Featuring an open "C" head design with a generous 2-inch jaw opening, this hydraulic crimper makes it easy to position over connectors without the need to close a latch, improving speed and efficiency on every job.
Powered by Milwaukee REDLITHIUM™ 5.0Ah batteries, the REC-RLC7610 provides reliable cordless performance with up to 95 crimps per charge on 750 MCM copper. Its 15-ton hydraulic output easily handles aluminum conductors from #8 AWG to 1250 MCM, copper conductors from #8 AWG to 1500 MCM, and H-Taps up to 750/750, making it an excellent choice for large underground cables, compression lugs, terminals, sleeves, and tension connections.
Designed with operator safety and productivity in mind, the tool features Auto-Retract with Jog + Hold trigger control, allowing precise positioning before completing the crimp while reducing fatigue during repetitive work. A 180° rotating head improves access in confined spaces, while the protective rubber boot helps prevent accidental contact with energized circuits. Built with a steel hydraulic body for long-term durability, the REC-RLC7610 is 75kV live line rated and backed by Huskie's 5-year tool warranty and 3-year battery warranty.
Compatible with all industry-standard P-Type dies, the tool also accepts U-Type dies when used with the PU-15 die adapter, providing maximum flexibility for utility professionals.
Key Features
- 15-ton hydraulic crimping force for demanding utility applications
- Open "C" head design with a 2" jaw opening for faster connector placement
- 180° rotating head for easy operation in tight working spaces
- Auto-Retract with Jog + Hold trigger for improved control and reduced operator fatigue
- Rapid Advance hydraulic system minimizes cycle times and increases productivity
- Protective rubber boot helps reduce accidental contact with energized circuits
- Steel hydraulic body provides exceptional durability and long service life
- Compatible with P-Type industry-standard dies and U-Type dies using the PU-15 adapter
- 75kV live line rated for utility work
- Includes (2) Milwaukee REDLITHIUM™ 5.0Ah batteries, 120VAC charger, and heavy-duty tool bag
Estimated Performance
- Up to 95 crimps per charge on 750 MCM copper using the included 5.0Ah Milwaukee REDLITHIUM™ battery.
Kit Includes
- Huskie REC-RLC7610 15 Ton Hydraulic Crimping Tool
- (2) Milwaukee REDLITHIUM™ 5.0Ah Batteries
- 120VAC Battery Charger
- Heavy-duty Tool Bag
Built for utility professionals who demand dependable performance in the field, the Huskie REC-RLC7610 combines powerful 15-ton hydraulic crimping force, cordless Milwaukee battery technology, and rugged construction to deliver fast, accurate, and reliable compression connections on every job.
DOCUMENTATION:
Order Guide
| PRODUCT NO. | KIT INCLUDES |
|---|---|
| REC-RLC7610-1 | 15 Ton Crimping Tool, (1) 5.0Ah Battery, 120VAC Charger, Tool Bag |
| REC-RLC7610DC-1 | 15 Ton Crimping Tool, (1) 5.0Ah Battery, 12VDC Charger, Tool Bag |
| REC-RLC7610X | 15 Ton Crimping Tool, Bare Tool with Tool Bag |
Specifications
| SPECIFICATION | DETAILS |
|---|---|
| Crimp Force | 15 Ton |
| Weight | 20.9 lbs (9.48 kg) |
| Dimensions (H × L × W) | 20.5" × 4" × 13" (520 × 101 × 330 mm) |
Connector Range
| TYPE | CAPACITY |
|---|---|
| Aluminum | #8 AWG to 1250 MCM |
| Copper | #8 AWG to 1500 MCM |
| H-Taps | Up to 750/750 MCM |
Crimping Estimates (5.0Ah Battery)
| APPLICATION | CYCLES/CHARGE |
|---|---|
| 750 MCM Cu | 95 Cycles per Charge |
Upgrade your large-capacity crimping capabilities with the REC-RLC7610—a powerful, field-ready solution built for demanding crimping applications where strength, speed, and reliability matter.
