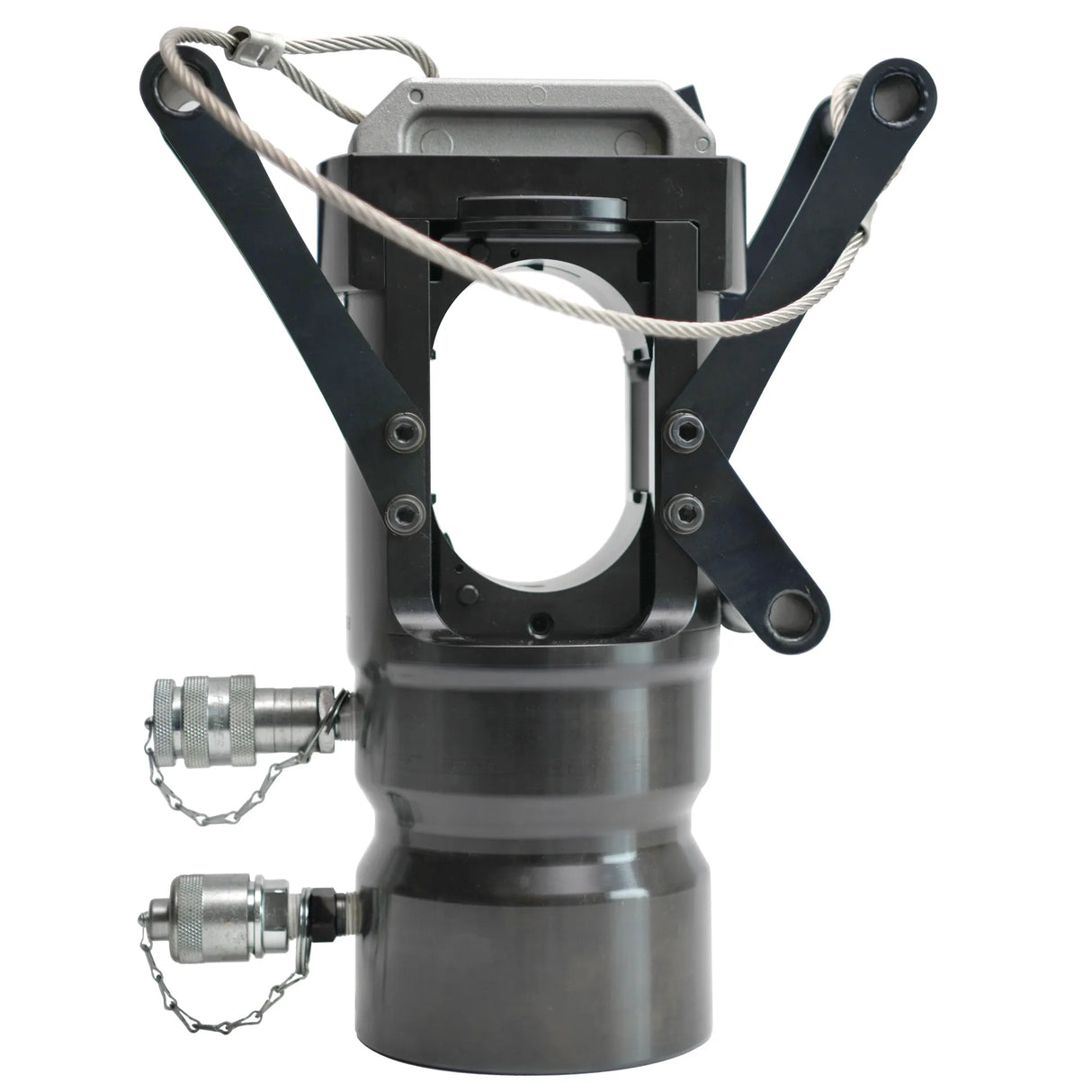

60 Ton Double Acting Hydraulic Press | 3 Models Avail | Steel Or Titanium Body Options — Product Overview

Experience unparalleled power and precision with the 60 Ton Double Acting Hydraulic Press, engineered for transmission and distribution professionals. Available in both steel and titanium models, this tool delivers 60 tons of compression force in a compact, highly portable frame—ideal for high-capacity crimping on ACSR and ACAR cable installations.

Double Acting Hydraulic Performance

The double acting cylinder design hydraulically advances and retracts the ram, ensuring quick cycle times and eliminating jamming—no prying or spring resets required. This setup improves efficiency and tool longevity in the field.

Steel vs. Titanium Options

Choose between the steel body model (EP-60D2) or the titanium versions (EP-60DT / EP-60DTSC). Titanium delivers the same strength as steel at nearly 30% less weight, reducing operator fatigue and enabling easier positioning, especially for helicopter line installs or overhead work.

Key Features:

• 60 Ton Capacity – Delivers exceptional compression for large electrical connectors and overhead lines.
• Double Acting Cylinder – Hydraulic push and pull action improves reliability and speed.
• Coupler Options – A snap-coupler configuration is available on the titanium model (EP-60DTSC) for quick hydraulic hose attachment.
• Removable Die Cap & Base – Makes it easier to maneuver and service in the field.
• Lifting Ring – Oblong ring ensures safe and stable overhead transport.

ORDERING OPTIONS:

Specifications:

Hose & Pump Requirements:

• Requires a 10,000 psi hydraulic pump (sold separately).
• Always use 10,000 psi-rated non-conductive hose — the Huskie NC-16 series is recommended.

Compatible Dies:

• 60 Ton HA60 Series Dies (Burndy Equivalent)
• SH Series Dies & Adapters (Alcoa Equivalent)

Documentation:

• Tool Manual
• Tool Facts
• Tool Breakdown
