INTEGRITY FUSION  |  SKU: 30070979  |  MPN: 100470

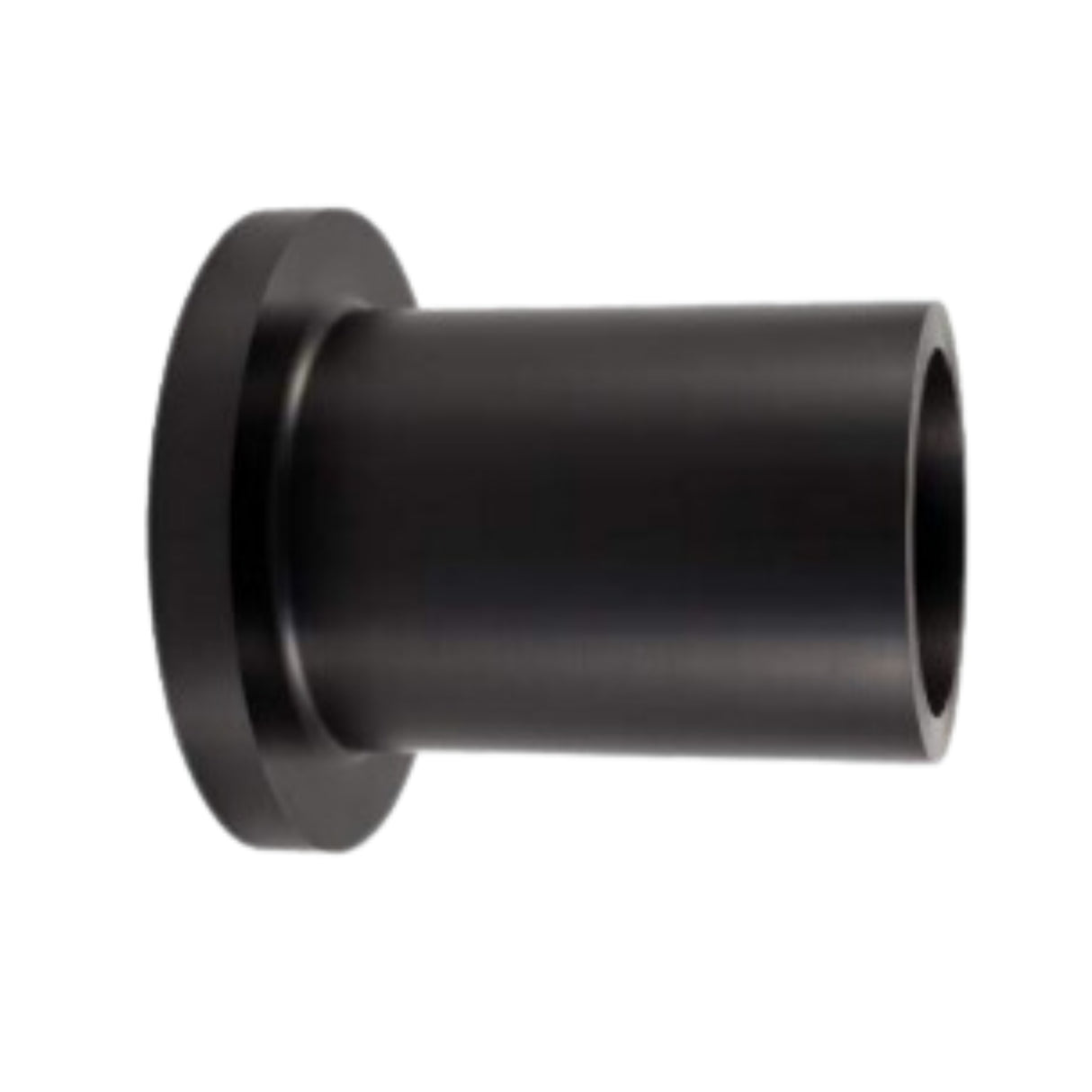

Molded Flange Adapter | 60° Beveled | IPS | SDR 11 | 200 PSI

$11.00
price per each (min. order qty 15)
Size | Spec | Part #
  • 60° Beveled Seal Design – Provides improved gasket seating and reliable flange engagement
  • PE4710/PE100 Resin – High strength, long service life, and excellent pressure capability
  • Precision-Molded Body – Ensures accurate bolt-circle alignment and consistent assembly
  • ANSI/ASME B16.5 Compatible – Works with standard steel flange bolt patterns and gaskets
  • SDR 11 Rated 200 PSI – Suitable for potable water, industrial, mining, and geothermal systems
📄 Download Spec Sheet

Molded Flange Adapter | 60° Beveled | IPS | SDR 11 — Product Overview

Integrity Fusion 60° Beveled Flange Adapters provide a high-strength, pressure-rated transition from IPS HDPE pipe to ANSI/ASME B16.5 steel flanges. Manufactured from durable PE4710/PE100 bi-modal resin, these molded adapters ensure consistent sealing performance, accurate geometry, and long-term reliability in demanding water and industrial applications.

Designed for SDR 11 piping systems and rated to 200 PSI (MAOP @ 73.4°F), the molded 60° bevel increases gasket contact area, improves alignment during bolt-up, and helps achieve a dependable, uniform flange seal.

Key Features & Benefits

  • 60° Molded Bevel – Improved gasket seating and more forgiving flange alignment
  • PE4710/PE100 Resin – High strength, excellent pressure capability, long service life
  • Precision-Molded Body – Accurate bolt-circle alignment and consistent installation
  • ANSI/ASME B16.5 Compatible – Works with standard steel flange bolt patterns and gaskets
  • Industry-Rated Performance – Suitable for potable water, industrial fluids, mining, and geothermal systems

Applications

  • Municipal and industrial water systems
  • Mining and slurry transport
  • Industrial process piping
  • Geothermal and energy systems

IPS SDR 11 — Dimensions, Weights & Item Codes (200 PSI)

Nominal Size A (OD) [in.] B [in.] C [in.] D (Length) [in.] E (Wall) [in.] Weight (lbs.) Item Code
2″ IPS 2.375 3.940 0.57 6.00 0.216 0.50 100470
3″ IPS 3.500 5.000 0.76 6.00 0.318 1.00 100472
4″ IPS 4.500 6.000 1.17 6.80 0.409 2.15 100474
6″ IPS 6.625 8.500 1.39 8.00 0.946 TBD 100476
8″ IPS 8.625 10.60 1.82 9.00 1.232 TBD Coming Soon
10″ IPS 10.75 12.80 2.24 10.75 1.536 TBD Coming Soon
12″ IPS 12.75 15.25 2.55 11.00 1.821 TBD Coming Soon

Refer to the downloadable spec sheet for full technical details.
