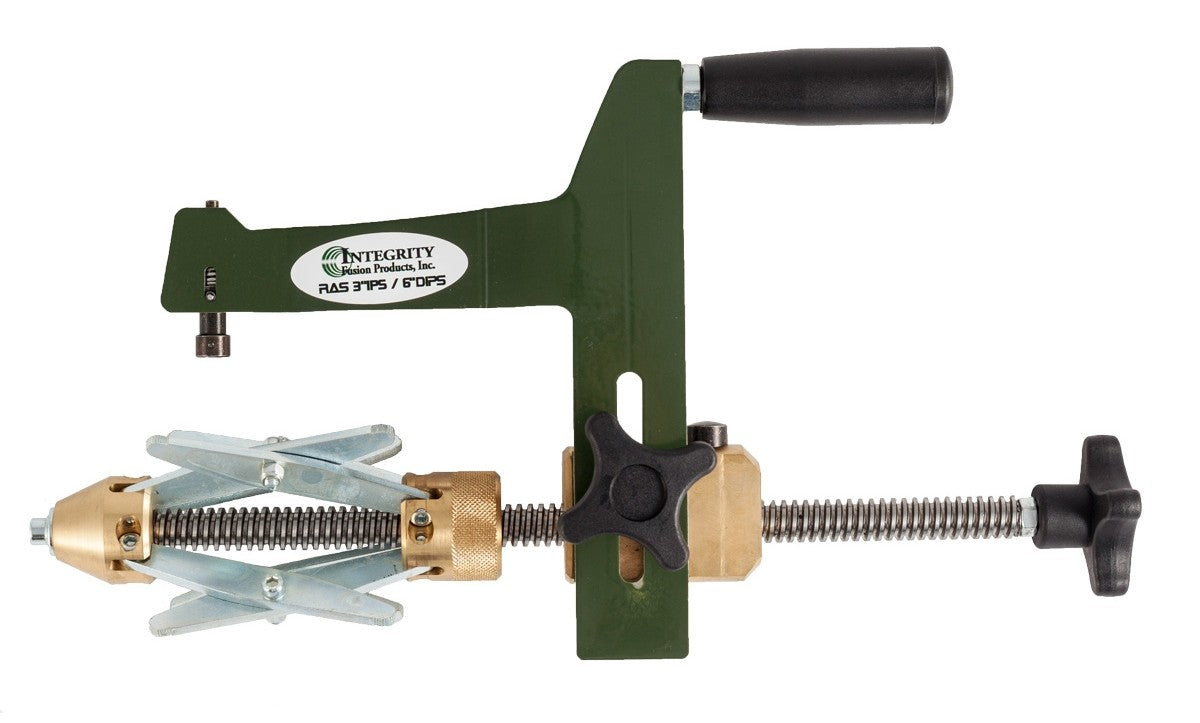

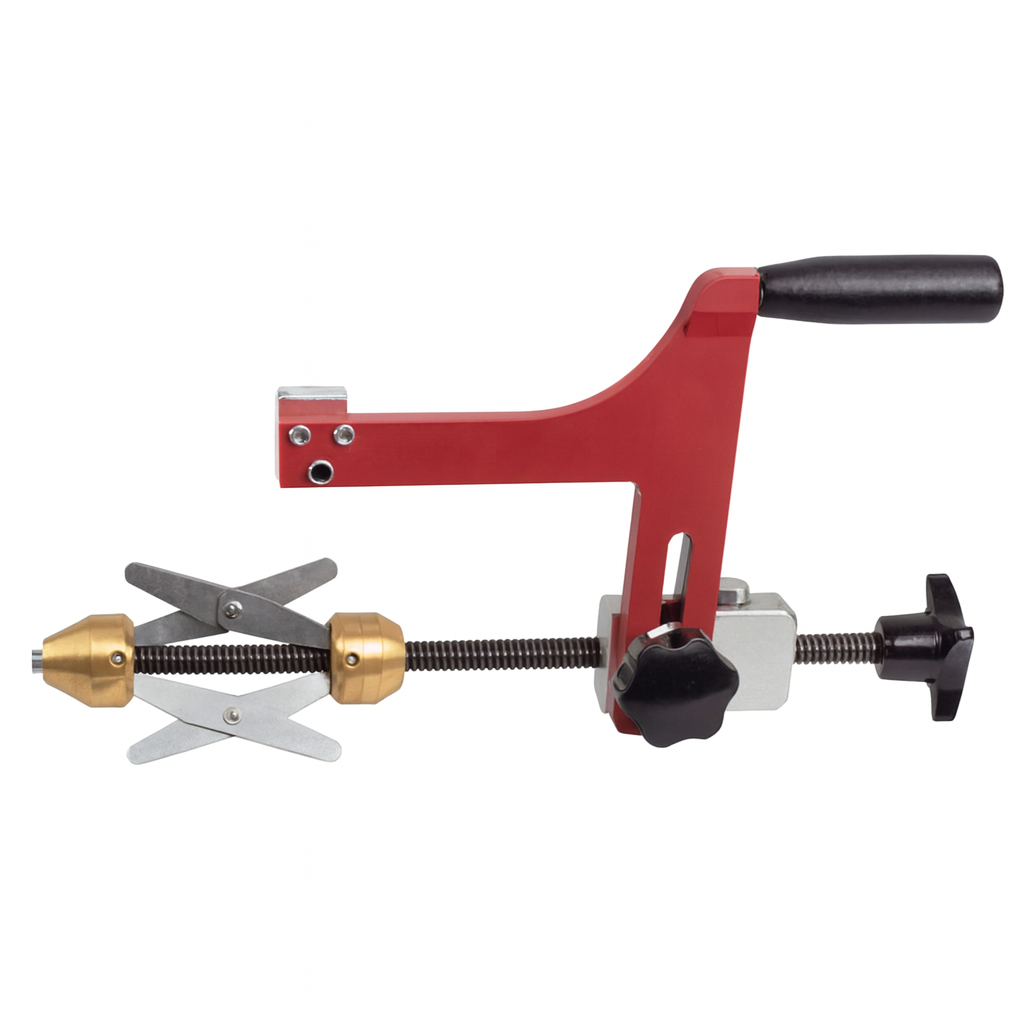

Rotary Scraper / Peeler | End-of-Pipe | 3″–16″ Pipe
$1,339.00
Unit price
/
Select Option
Rotary Scraper / Peeler | End-of-Pipe | 3″–16″ — Product Overview
Integrity Fusion Rotary Scraper/Peeler Tools are engineered to remove the oxidized surface layer from the end of HDPE pipe—a critical requirement for successful electrofusion joints. By peeling away a minimum of 0.007″ of material, these tools expose clean, virgin PE required for reliable fusion bonding.
Rotary Peelers are inserted into the pipe end and remove material evenly around the full circumference. They prepare pipe ends for electrofusion couplings, tapping saddles, and side-wall fittings. Two model ranges accommodate pipe sizes from 3″ through 16″.
Key Features & Benefits
- End-of-Pipe Scraping – Removes oxidation only in the insertion zone
- Consistent Scrape Depth – Removes 0.25″–0.35″ of material for proper fusion prep
- Precision Cutting Head – Ensures uniform material removal around full pipe diameter
- Durable Construction – Built for PE, PE-HD, PE-X, and PP piping systems
- Portable Tooling – Includes protective hard-shell field case
Rotary Scraper / Peeler Specifications
| Model | Pipe Range (IPS / DIPS) | Scraping Range | Overall Length (in.) | Package Dimensions (in.) | Package Weight (lbs.) |
|---|---|---|---|---|---|
| Rotary Scraper / Peeler | 3″ IPS – 6″ DIPS | 0.25″ – 0.35″ | 17.0 | 24 × 12 × 8 | 18 lb |
| Rotary Scraper / Peeler | 8″ IPS – 16″ IPS | 0.25″ – 0.35″ | 23.0 | 29 × 14 × 10 | 26 lb |
Refer to the downloadable spec sheet for complete details.
