HDPE Pressure Pipe compliant with AWWA C906 (DR 13.5) delivers a 160 PSI pressure class for potable water, sewer force mains, reclaimed water, and industrial systems. Manufactured from PE4710, it installs easily in open-trench or trenchless work and provides a fully fused, leak-free system with excellent resistance to slow crack growth (SCG) and rapid crack propagation (RCP).
Key Features & Benefits
- AWWA C906 DR 13.5 – 160 PSI class for municipal & industrial water and sewer pressure service.
- 100-Year Design Life – PE4710 resists corrosion, SCG/RCP, freeze/thaw, and seismic conditions.
- IPS & DIPS Options – Available in Iron Pipe Size and Ductile Iron Pipe Size to match fittings.
- Stick Lengths – 40′ typical for smaller sizes; 50′ standard for ≥14″; coil options available in select small sizes.
- Hydraulic Efficiency – Smooth bore (Hazen-Williams C ≈ 150) reduces friction loss and pumping energy.
Spec Sheets

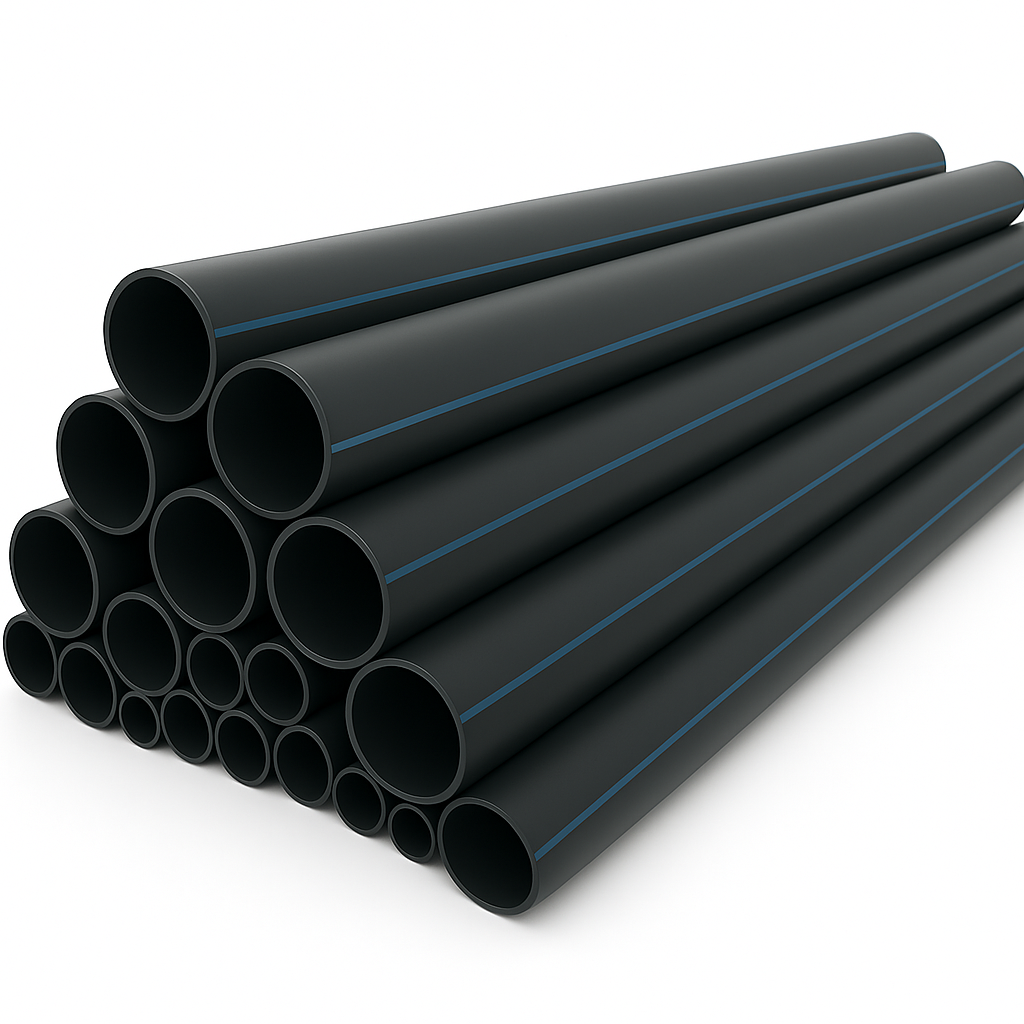

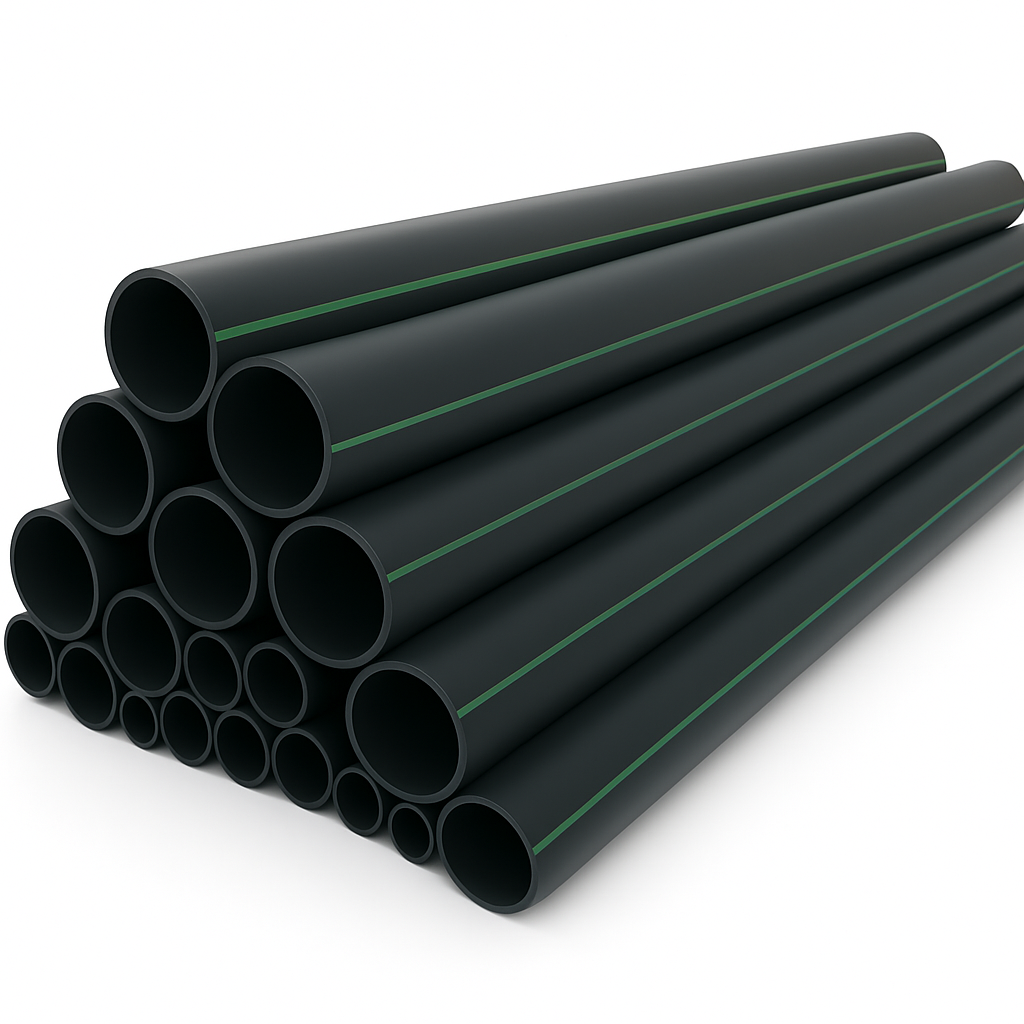

On-page options: Size • Stripe Color (Blue = Potable, Green = Sewer, Purple = Reclaimed) • Pipe Size Standard (IPS/DIPS) • Length (40′/50′; coil for select small sizes).
HDPE PRESSURE PIPE – IPS – DR 13.5 (160 PSI)
| PIPE SIZE (IPS) | AVG. O.D. (IN) | MIN. T. (IN) | AVG. I.D. (IN) | WGT (LB/FT) |
|---|---|---|---|---|
| 4″ | 4.500 | 0.333 | 3.794 | 1.91 |
| 5″ | 5.563 | 0.412 | 4.531 | 2.73 |
| 6″ | 6.625 | 0.491 | 5.584 | 4.15 |
| 7″ | 7.125 | 0.528 | 6.006 | 4.80 |
| 8″ | 8.625 | 0.639 | 7.270 | 7.03 |
| 10″ | 10.750 | 0.796 | 9.062 | 10.92 |
| 12″ | 12.750 | 0.944 | 10.749 | 15.36 |
| 14″ | 14.000 | 1.037 | 11.802 | 18.52 |
| 16″ | 16.000 | 1.185 | 13.488 | 24.19 |
| 18″ | 18.000 | 1.333 | 15.174 | 30.61 |
| 20″ | 20.000 | 1.481 | 16.860 | 37.76 |
| 22″ | 22.000 | 1.630 | 18.544 | 45.75 |
| 24″ | 24.000 | 1.778 | 20.231 | 54.44 |
| 26″ | 26.000 | 1.926 | 21.917 | 63.89 |
| 28″ | 28.000 | 2.074 | 23.603 | 74.09 |
| 30″ | 30.000 | 2.222 | 25.289 | 85.04 |
| 32″ | 32.000 | 2.370 | 26.967 | 96.76 |
| 34″ | 34.000 | 2.519 | 28.660 | 109.26 |
| 36″ | 36.000 | 2.667 | 30.346 | 122.49 |
| 42″ | 42.000 | 3.111 | 35.404 | 166.70 |
| 48″ | 48.000 | 3.556 | 40.462 | 217.76 |
| 54″ | 54.000 | 4.000 | 45.520 | 275.56 |
HDPE PRESSURE PIPE – DIPS – DR 13.5 (160 PSI)
| PIPE SIZE (DIPS) | AVG. O.D. (IN) | MIN. T. (IN) | AVG. I.D. (IN) | WGT (LB/FT) |
|---|---|---|---|---|
| 4″ | 4.800 | 0.356 | 4.045 | 2.18 |
| 6″ | 6.900 | 0.511 | 5.817 | 4.50 |
| 8″ | 9.050 | 0.670 | 7.630 | 7.74 |
| 10″ | 11.100 | 0.822 | 9.375 | 11.64 |
| 12″ | 13.200 | 0.978 | 11.127 | 16.47 |
| 14″ | 15.300 | 1.133 | 12.898 | 22.12 |
| 16″ | 17.400 | 1.289 | 14.667 | 28.61 |
| 18″ | 19.500 | 1.444 | 16.439 | 35.92 |
| 20″ | 21.600 | 1.600 | 18.208 | 44.09 |
| 24″ | 25.800 | 1.911 | 21.749 | 62.90 |
| 30″ | 32.000 | 2.370 | 26.976 | 96.76 |
| 36″ | 38.300 | 2.837 | 32.286 | 138.62 |
| 42″ | 44.500 | 3.296 | 37.512 | 187.12 |
| 48″ | 50.800 | 3.763 | 42.822 | 243.87 |
Ordering & MOQ – C906 DR 13.5 (IPS 4″–54″)
| Size (in) | MOQ (Per Bundle) | ~ Bundles / Truckload | Truckload (FT) |
|---|---|---|---|
| 4″ | 2,280 ft (57 pcs) | ≈ 8 | 18,240 ft |
| 5.375″ | 1,520 ft (38 pcs) | ≈ 8 | 12,160 ft |
| 6″ | 1,040 ft (26 pcs) | ≈ 8 | 8,320 ft |
| 7.125″ | 960 ft (24 pcs) | ≈ 8 | 7,200 ft |
| 8″ | 560 ft (14 pcs) | ≈ 8 | 4,480 ft |
| 10″ | 200 ft (5 pcs) | ≈ 14 | 2,800 ft |
| 12″ | 160 ft (4 pcs) | ≈ 14 | 2,240 ft |
| 14″ | 150 ft (3 pcs) | ≈ 14 | 2,100 ft |
| 16″ | 150 ft (3 pcs) | ≈ 12 | 1,800 ft |
| 18″ | 100 ft (2 pcs) | ≈ 13 | 1,250 ft |
| 20″ | 100 ft (2 pcs) | ≈ 10 | 1,000 ft |
| 22″ | 100 ft (2 pcs) | ≈ 8 | 800 ft |
| 24″ | 100 ft (2 pcs) | ≈ 8 | 800 ft |
| 26″ | 100 ft (2 pcs) | ≈ 5 | 450 ft |
| 28″ | 100 ft (2 pcs) | ≈ 5 | 450 ft |
| 30″ | 100 ft (2 pcs) | ≈ 4 | 400 ft |
| 32″ | 100 ft (2 pcs) | ≈ 3 | 300 ft |
| 34″ | 100 ft (2 pcs) | ≈ 2 | 200 ft |
| 36″ | 50 ft (1 pc) | ≈ 4 | 200 ft |
| 42″ | 50 ft (1 pc) | ≈ 4 | 200 ft |
| 48″ | 50 ft (1 pc) | ≈ 4 | 200 ft |
| 54″ | 50 ft (1 pc) | ≈ 2 | 100 ft |
Directional guidance: For DR 13.5 IPS, 40′ loading is assumed for 4″–12″ and 50′ loading applies for ≥14″. Counts are approximate and reflect typical plant packaging and the JM Eagle loading chart; confirm exact bundles/truck and stick lengths at quote time.
Dimensions and weights reflect current IPS & DIPS DR 13.5 submittals. Stick lengths and coil availability vary by plant/size—confirm at quote time.
