HDPE Pressure Pipe compliant with AWWA C906 (DR 17) delivers a robust Pressure Class ~125 PSI for potable water, sewer force mains, reclaimed water, and industrial systems. Manufactured from PE4710, it installs quickly (open-trench or trenchless) and provides a fully fused, leak-free system.
Key Features & Benefits
- AWWA C906 DR 17 – Standard for municipal water & sewer pressure service (~125 PSI class).
- 100-Year Design Life – PE4710 resists corrosion, SCG/RCP, freeze/thaw, and seismic movement.
- IPS & DIPS Options – Available in Iron Pipe Size (IPS) or Ductile Iron Pipe Size (DIPS) to match fittings.
- 50′ Sticks Standard – 40′ sticks common in 4″–12″; 50′ sticks typical for 14″+ and truckload efficiency.
- Hydraulic Efficiency – Smooth bore (Hazen-Williams C ≈ 150) lowers friction loss and pumping energy.
Spec Sheets

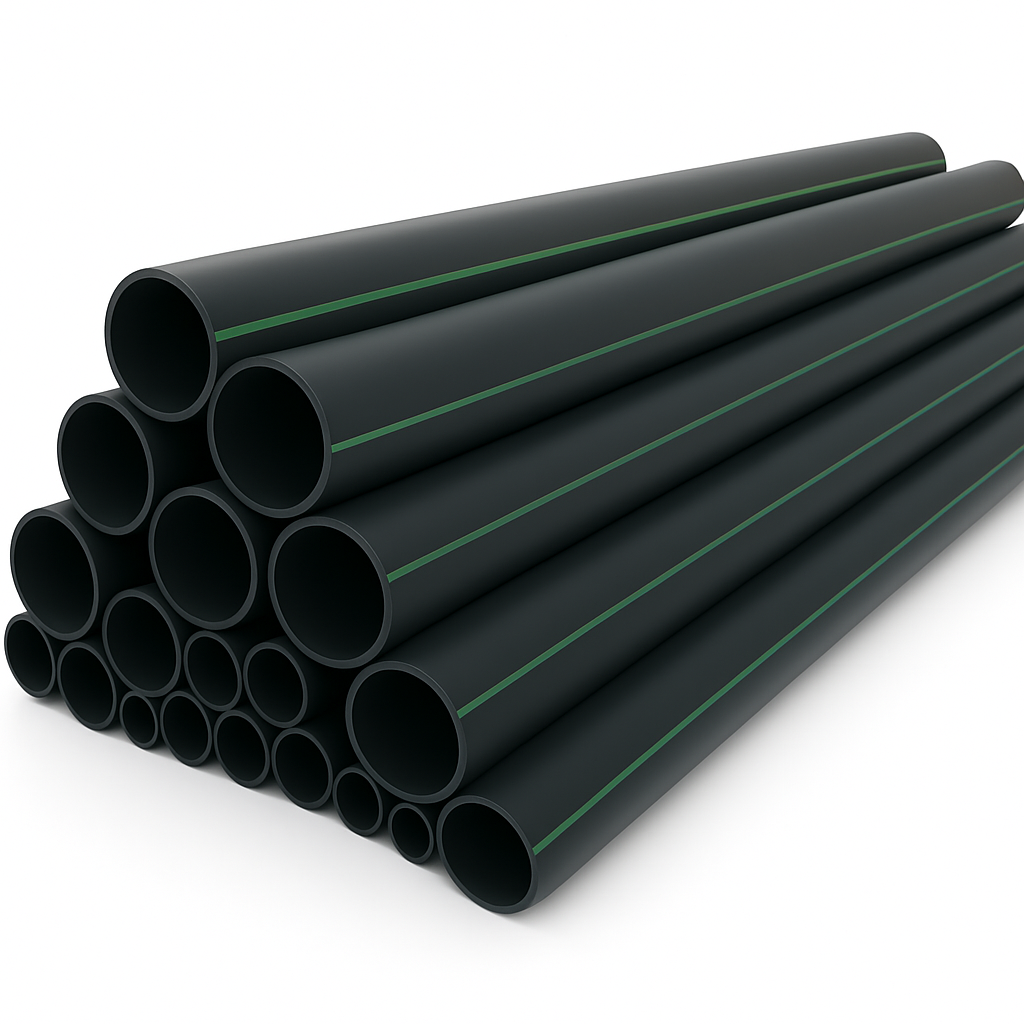

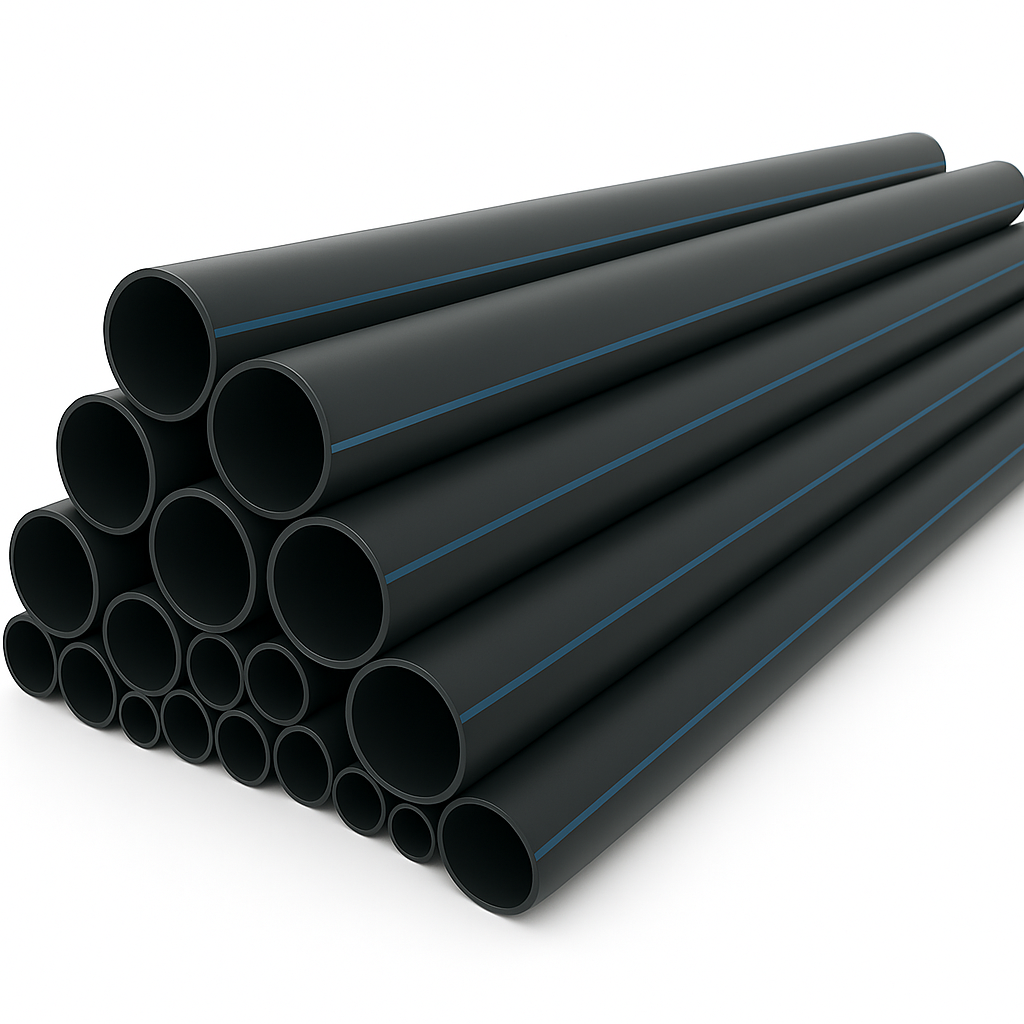

On-page options: Size • Stripe Color (Blue = Potable, Green = Sewer, Purple = Reclaimed) • Pipe Size Standard (IPS/DIPS) • Length (50′ standard; 40′ available).
HDPE PRESSURE PIPE – IPS – DR 17 (Quick Specs)
| PIPE SIZE (IPS) | AVG. O.D. (in) | MIN. WALL (in) | DR |
|---|---|---|---|
| 4″ IPS | 4.500 | 0.265 | DR 17 |
| 5″ IPS | 5.563 | 0.327 | DR 17 |
| 6″ IPS | 6.625 | 0.390 | DR 17 |
| 7″ IPS | 7.125 | 0.419 | DR 17 |
| 8″ IPS | 8.625 | 0.507 | DR 17 |
| 10″ IPS | 10.750 | 0.632 | DR 17 |
| 12″ IPS | 12.750 | 0.750 | DR 17 |
| 14″ IPS | 14.000 | 0.824 | DR 17 |
| 16″ IPS | 16.000 | 0.941 | DR 17 |
| 18″ IPS | 18.000 | 1.059 | DR 17 |
| 20″ IPS | 20.000 | 1.176 | DR 17 |
| 22″ IPS | 22.000 | 1.294 | DR 17 |
| 24″ IPS | 24.000 | 1.412 | DR 17 |
| 26″ IPS | 26.000 | 1.529 | DR 17 |
| 28″ IPS | 28.000 | 1.647 | DR 17 |
| 30″ IPS | 30.000 | 1.765 | DR 17 |
| 32″ IPS | 32.000 | 1.882 | DR 17 |
| 34″ IPS | 34.000 | 2.000 | DR 17 |
| 36″ IPS | 36.000 | 2.118 | DR 17 |
For full dimensions (ID, weight/ft, pressure ratings by temperature/design factor), see the spec sheets above.
HDPE PRESSURE PIPE – DIPS – DR 17 (Quick Specs)
| PIPE SIZE (DIPS) | AVG. O.D. (in) | MIN. WALL (in) | DR |
|---|---|---|---|
| 4″ DIPS | 4.800 | 0.282 | DR 17 |
| 6″ DIPS | 6.900 | 0.406 | DR 17 |
| 8″ DIPS | 9.050 | 0.532 | DR 17 |
| 10″ DIPS | 11.100 | 0.653 | DR 17 |
| 12″ DIPS | 13.200 | 0.776 | DR 17 |
| 14″ DIPS | 15.300 | 0.900 | DR 17 |
| 16″ DIPS | 17.400 | 1.024 | DR 17 |
| 18″ DIPS | 19.500 | 1.147 | DR 17 |
| 20″ DIPS | 21.600 | 1.271 | DR 17 |
| 24″ DIPS | 25.800 | 1.518 | DR 17 |
| 30″ DIPS | 32.000 | 1.882 | DR 17 |
| 36″ DIPS | 38.300 | 2.253 | DR 17 |
Ordering & MOQ – C906 DR 17 (IPS, 40′ for 4″–12″; 50′ for ≥14″)
| Size (in) | MOQ (Per Bundle) | ~ Bundles / Truckload | Truckload (FT) |
|---|---|---|---|
| 4″ | 2,280 ft (57 pcs) | ≈ 8 | 18,240 ft |
| 5.375″ | 1,520 ft (38 pcs) | ≈ 8 | 12,160 ft |
| 6″ | 1,040 ft (26 pcs) | ≈ 8 | 8,320 ft |
| 7.125″ | 960 ft (24 pcs) | ≈ 8 | 7,200 ft |
| 8″ | 560 ft (14 pcs) | ≈ 8 | 4,480 ft |
| 10″ | 200 ft (5 pcs) | ≈ 14 | 2,800 ft |
| 12″ | 160 ft (4 pcs) | ≈ 14 | 2,240 ft |
| 14″ | 200 ft (4 pcs) | ≈ 11 | 2,100 ft |
| 16″ | 150 ft (3 pcs) | ≈ 12 | 1,800 ft |
| 18″ | 150 ft (3 pcs) | ≈ 8 | 1,250 ft |
| 20″ | 150 ft (3 pcs) | ≈ 7 | 1,000 ft |
| 22″ | 100 ft (2 pcs) | ≈ 8 | 800 ft |
| 24″ | 100 ft (2 pcs) | ≈ 8 | 800 ft |
| 26″ | 100 ft (2 pcs) | ≈ 5 | 450 ft |
| 28″ | 100 ft (2 pcs) | ≈ 5 | 450 ft |
| 30″ | 100 ft (2 pcs) | ≈ 4 | 400 ft |
| 32″ | 100 ft (2 pcs) | ≈ 3 | 300 ft |
| 34″ | 100 ft (2 pcs) | ≈ 3 | 300 ft |
| 36″ | 50 ft (1 pc) | ≈ 4 | 200 ft |
| 42″ | 50 ft (1 pc) | ≈ 4 | 200 ft |
| 48″ | 50 ft (1 pc) | ≈ 4 | 200 ft |
| 54″ | 50 ft (1 pc) | ≈ 2 | 100 ft |
Directional guidance: For DR 17, 40′ loading is assumed for 4″–12″, while 50′ loading applies for ≥14″. Values use manufacturer FT/Load and FT/Unit columns; bundles/truck are approximate and rounded. Always confirm packaging with plant at quote time. DIPS equivalents or 40′ lengths available on request.
