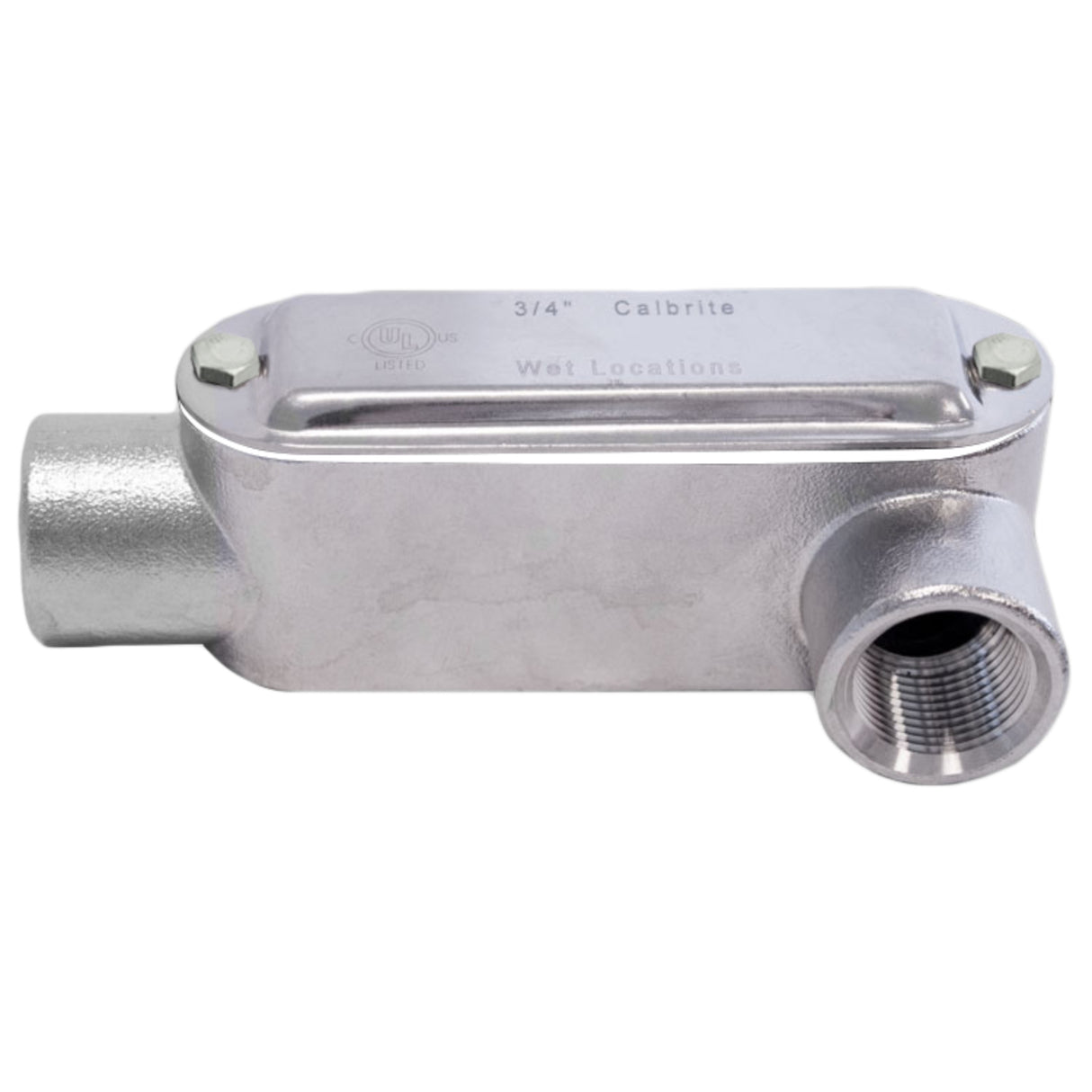

Calbrite Form 8 Stainless Steel Conduit Bodies (Type LL) provide a robust, corrosion-resistant solution for connecting conduit runs and changing direction while maintaining full access for pulling and splicing wires. Manufactured from Type 316 stainless steel, these conduit bodies are built to perform in industrial, marine, and food-grade environments where sanitation, durability, and corrosion resistance are critical.
The brite polished finish enhances both the appearance and protective performance of each body, while the flat-back design increases wiring capacity for cleaner, more efficient installations. Each unit includes a cover and gasket set, providing a complete, ready-to-install configuration that ensures a reliable seal and long-term service life.
Key Features & Benefits
- Durable 316 Stainless Steel Construction – Exceptional corrosion resistance in wet, chemical, or outdoor conditions.
- Sleek Brite Polished Finish – Professional appearance and added protection against rust and wear.
- IP69 Rated Protection – Guards against dust and high-pressure water jets, ideal for wash-down or sanitary locations.
- Spacious Wiring Chamber – Flat-back design simplifies splicing and wire management.
- Complete Installation Set – Includes cover and gasket for fast, secure assembly using standard hand tools.
Applications
- Food & Beverage Facilities – Sanitary construction suited for frequent wash-downs.
- Chemical & Industrial Plants – Maintains strength and performance in corrosive settings.
- Outdoor and Marine Installations – Resists moisture, salt, and extreme environments.
Ordering Information

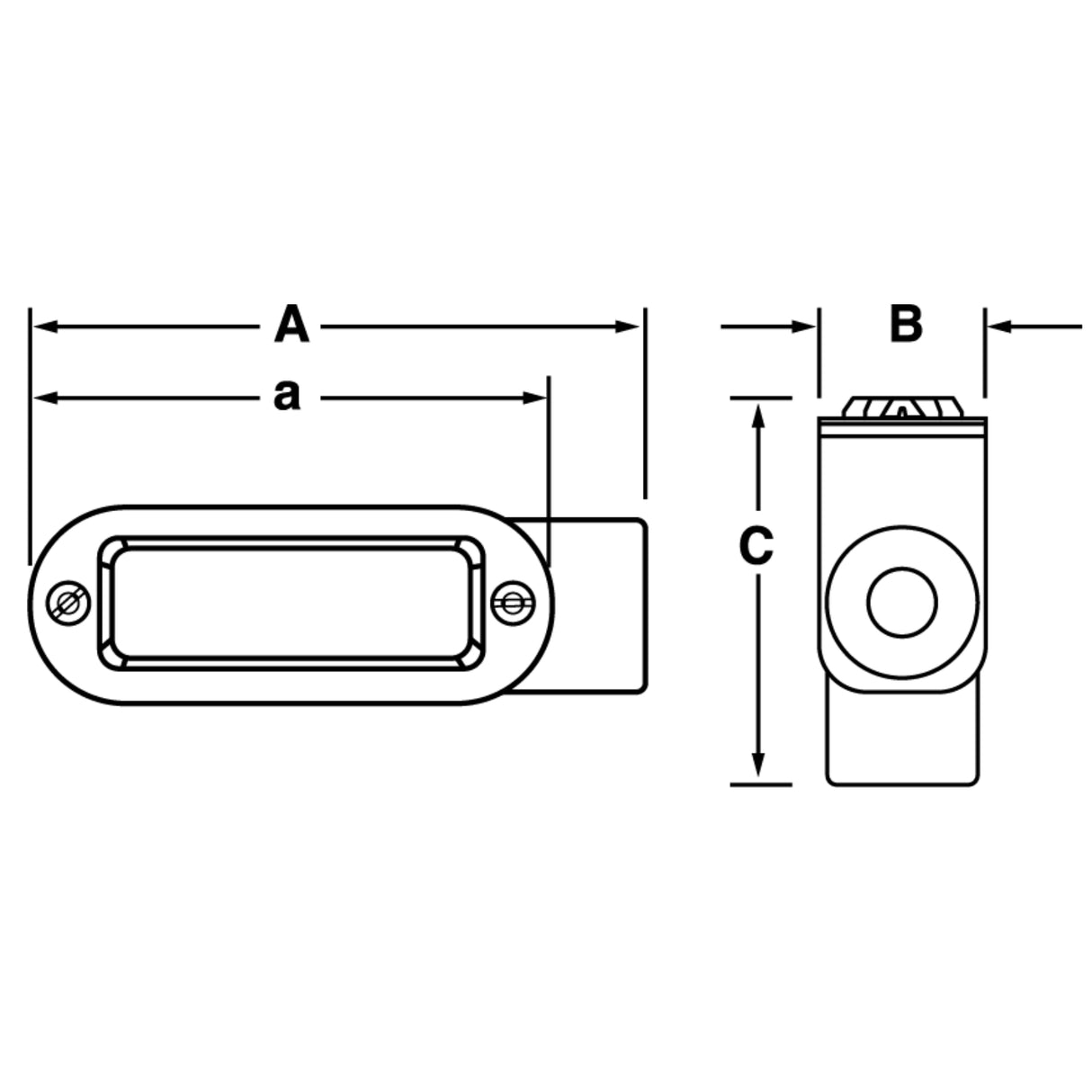

| Catalog Number | Trade Size (in) | A (in) | B (in) | C (in) | Weight (lb each) | Package Qty | Package Weight (lb) |
|---|---|---|---|---|---|---|---|
| S60500LL00 | ½ | 5.130 | 2.130 | 1.700 | 1.10 | 1 | 1.10 |
| S60700LL00 | ¾ | 5.740 | 2.470 | 1.980 | 1.55 | 1 | 1.55 |
| S61000LL00 | 1 | 6.680 | 2.790 | 2.230 | 2.18 | 1 | 2.18 |
| S61500LL00 | 1½ | 8.870 | 3.590 | 3.100 | 4.90 | 1 | 4.90 |
| S62000LL00 | 2 | 11.270 | 4.610 | 3.350 | 7.67 | 1 | 7.67 |
Standards & Certifications
- CULUS 514A Listed: File Number E307133
- NEC Compliant: Meets ANSI/NFPA 70 requirements
- NSF/ANSI Certified: Approved for sanitary and food-grade applications
- IP69 Rated: Full protection from dust and high-pressure water jets
