Form 8 Stainless Steel Conduit Body – T | 316 SS | Calbrite
$2,004.26
Unit price
/
Select Option

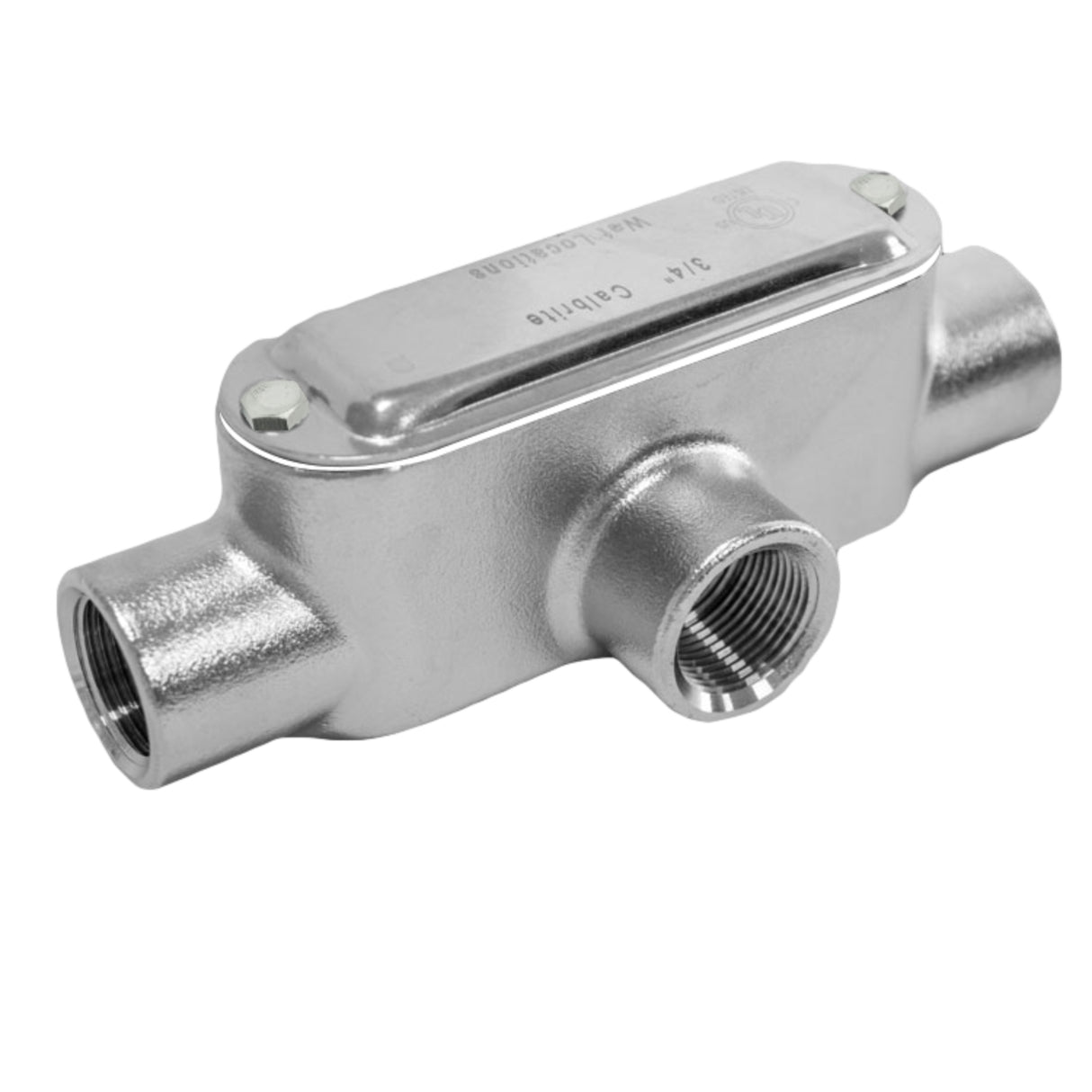

Form 8 Stainless Steel Conduit Body – T | 316 SS | Calbrite
Calbrite Form 8 Stainless Steel Conduit Bodies (T Style) provide a durable, corrosion-resistant solution for connecting and branching conduit runs in demanding electrical installations. Designed with a spacious wiring chamber, these conduit bodies make splicing, pulling, and wire management simple while maintaining long-term system reliability.
Manufactured from Type 316 stainless steel, they deliver exceptional resistance to moisture, chemicals, and corrosive elements. The brite polished finish improves both aesthetics and corrosion protection, making them ideal for sanitary, industrial, and commercial applications. Each body comes complete with a cover and gasket set for secure, watertight installation using standard hand tools.
Key Features & Benefits
- 316 Stainless Steel Construction – Exceptional corrosion resistance for harsh industrial and commercial environments.
- Sleek Brite Polished Finish – Enhances appearance and durability for visible or sanitary installations.
- Flat Back Design – Expands wiring capacity for easier splicing and maintenance access.
- IP69 Rated Protection – Fully sealed against dust and high-pressure wash-downs.
- Easy Installation – Solid stainless construction installs quickly with standard tools; cover and gasket included.
Standards & Certifications
- CULUS 514A (File No. E307133)
- NEC Compliant
- NSF/ANSI 169 Certified for sanitary applications
- IP69 Rated – Dust-tight and resistant to high-pressure water jets
Ordering Information

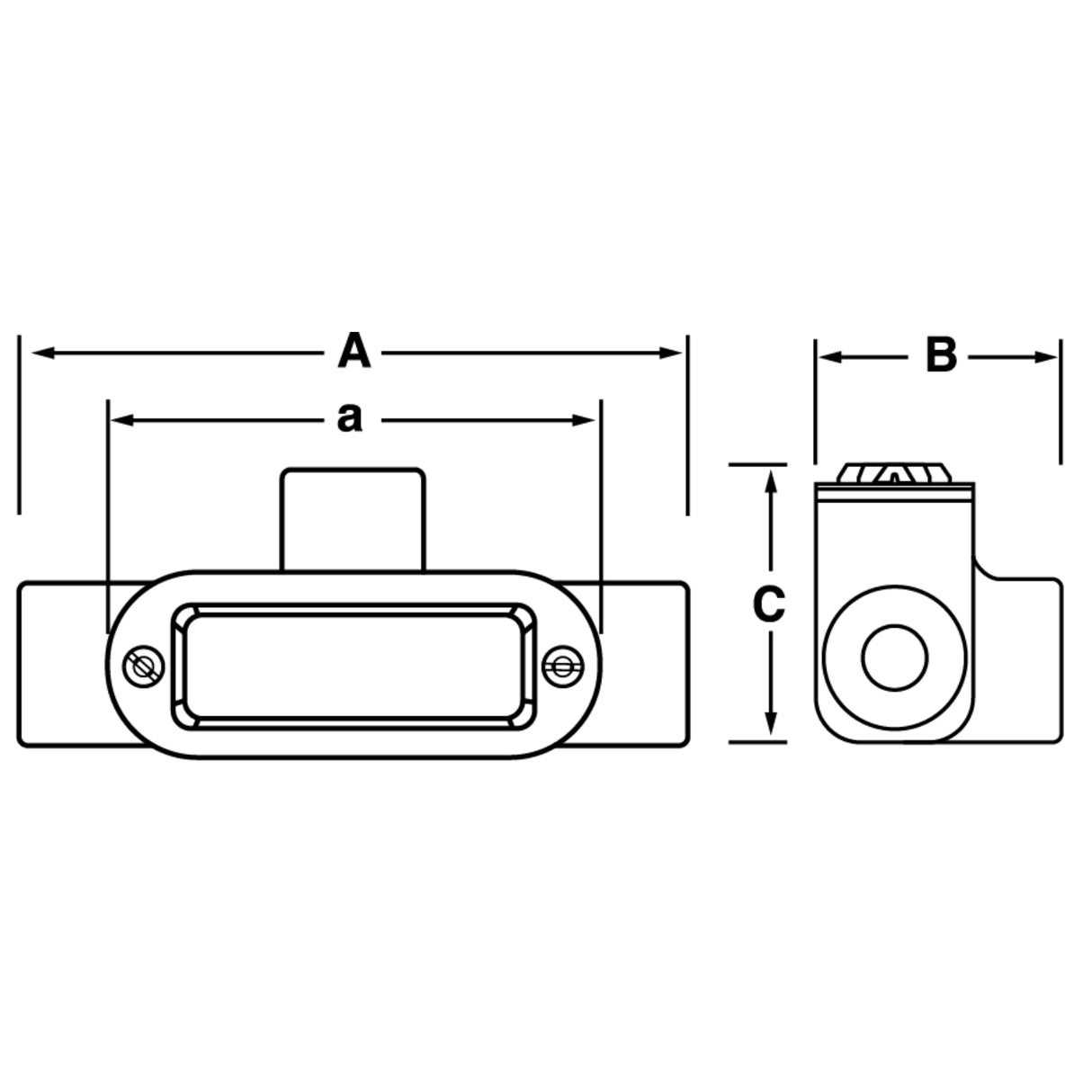

| Catalog Number | Trade Size (in) | A (in) | B (in) | C (in) | Part Weight (lb/ea) | Package Qty (ea) | Package Weight (lb) |
|---|---|---|---|---|---|---|---|
| S60500TE00 | ½ | 5.940 | 2.130 | 2.030 | 1.33 | 1 | 1.33 |
| S60700TE00 | ¾ | 6.540 | 2.470 | 2.320 | 1.89 | 1 | 1.89 |
| S61000TE00 | 1 | 7.490 | 2.740 | 2.330 | 2.67 | 1 | 2.67 |
| S61200TE00 | 1¼ | 8.730 | 3.280 | 2.900 | 3.96 | 1 | 3.96 |
| S61500TE00 | 1½ | 9.920 | 3.590 | 3.000 | 5.20 | 1 | 5.20 |
| S62000TE00 | 2 | 12.300 | 4.700 | 3.880 | 8.89 | 1 | 8.89 |
| S62500TE00 | 2½ | 15.290 | 6.200 | 4.550 | 16.68 | 1 | 16.68 |
| S63000TE00 | 3 | 15.330 | 6.280 | 4.520 | 16.68 | 1 | 16.68 |
| S64000TE00 | 4 | 18.340 | 7.610 | 5.930 | 33.50 | 1 | 33.50 |
Brand Availability
- Calbrite – Renowned for high-quality stainless conduit fittings built for sanitary and industrial performance.
