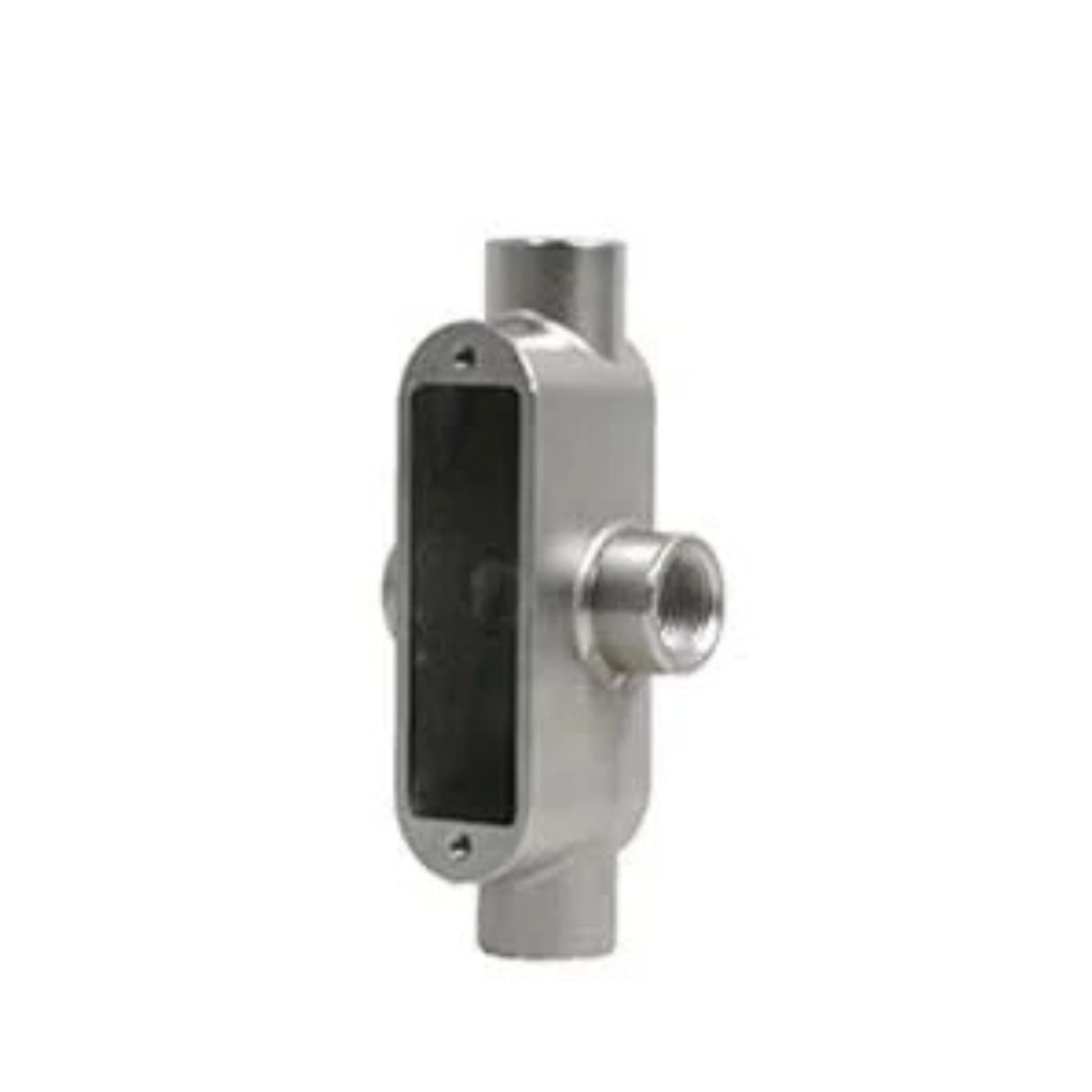

Form 8 Stainless Steel Conduit Body – X | Type 316 | IP69 Rated
Form 8 Stainless Steel Conduit Body – X | Type 316 | IP69 Rated
Form 8 Stainless Steel Conduit Bodies – X provide a durable and efficient solution for connecting and redirecting conduit runs in demanding electrical installations. Engineered with a spacious wiring chamber, these conduit bodies make splicing, pulling, and maintenance easier while ensuring long-lasting reliability in both commercial and industrial environments.
Constructed from Type 316 stainless steel, each conduit body offers outstanding corrosion resistance and strength, ideal for environments exposed to moisture, chemicals, or wash-down conditions. The brite polished finish enhances the appearance and provides additional protection against corrosion, making these fittings suitable for visible installations. The flat back design maximizes wiring capacity and simplifies wire management, while the solid stainless construction allows for fast installation using standard hand tools.
Key Features and Benefits
- Type 316 Stainless Steel: Delivers exceptional corrosion resistance for harsh and sanitary environments.
- Brite Polished Finish: Enhances appearance while improving resistance to rust and oxidation.
- Flat Back Design: Provides extra wiring space for easy splicing and routing.
- Simple Installation: Mounts quickly with standard hand tools—no specialized equipment needed.
- Cover and Gasket Included: Ensures a secure, watertight seal for dependable performance.
- IP69 Rated Protection: Dust-tight and resistant to high-pressure water jets for reliable operation in demanding environments.
Standards and Certifications
- CULUS 514A – File E307133
- NEC Compliant
- NSF/ANSI Certified – Meets sanitary standards for food and pharmaceutical applications
- IP69 Rated – Complete protection against dust and water ingress
Mechanical Specifications
| Catalog Number | Trade Size (in) | A (in) | B (in) | C (in) | Weight (lb/ea) | Package Qty (ea) | Package Weight (lb) |
|---|---|---|---|---|---|---|---|
| S60500XB00 | ½ | 5.990 | 2.940 | 2.050 | 1.44 | 1 | 1.44 |
| S60700XB00 | ¾ | 6.540 | 3.400 | 2.300 | 2.04 | 1 | 2.04 |
| S61000XB00 | 1 | 7.690 | 3.910 | 2.450 | 2.79 | 1 | 2.79 |
| S61200XB00 | 1¼ | 8.780 | 4.300 | 2.830 | 4.24 | 1 | 4.24 |
| S61500XB00 | 1½ | 9.920 | 4.640 | 3.060 | 5.41 | 1 | 5.41 |
| S62000XB00 | 2 | 12.554 | 5.810 | 3.700 | 9.45 | 1 | 9.45 |
Brand Availability
- Calbrite
