MJ Adapter Gland Ring Kit | C153 & C110 | 3″–24″ | Ductile Iron Ring + Bolts + Gasket

MJ Adapter Gland Ring Kits — Product Overview

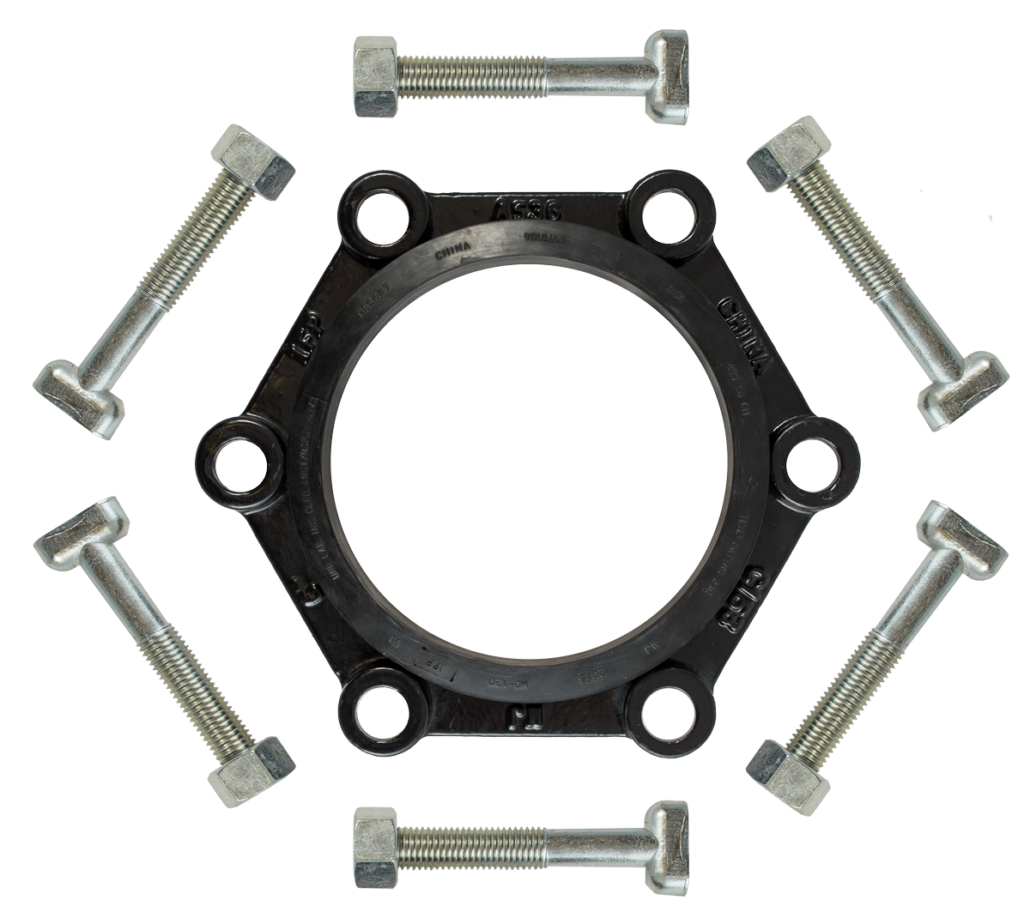

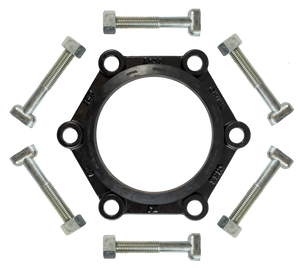

MJ Adapter Gland Ring Kits provide all required mechanical joint accessories for connecting HDPE MJ Adapters to valves, hydrants, and ductile iron fittings. Each kit includes a ductile iron gland (follower), SBR gasket, and high-strength T-bolts sized per AWWA standards. Kits are available in both C153 and C110 configurations, covering 2″ through 24″.

All components are manufactured to NSF 61 and AWWA C153/C110 requirements to ensure long-term performance in municipal water systems, wastewater, industrial applications, and utilities requiring mechanical joint restraint.

Key Features & Benefits

• Ductile Iron Gland Ring – Manufactured per ASTM A536 for strength and reliability.
• Corrosion-Resistant Coating – Fusion-bonded epoxy or black oxide per ANSI/AWWA C116/A21.16.
• High-Strength T-Bolts – Anti-rotation alloy bolts manufactured per ASTM A242.
• SBR Gasket – AWWA C111/A2.11-7 compliant gasket ensures a tight, dependable seal.
• C153 & C110 Options – C153 for 2″–12″; C110 for 14″–24″ systems.
• Complete Kit – Includes gland, gasket, and all required bolts.

Applications

• Municipal potable water and wastewater
• Industrial water and fluid conveyance
• HDPE-to-ductile-iron transitions
• Water distribution and hydrant connections

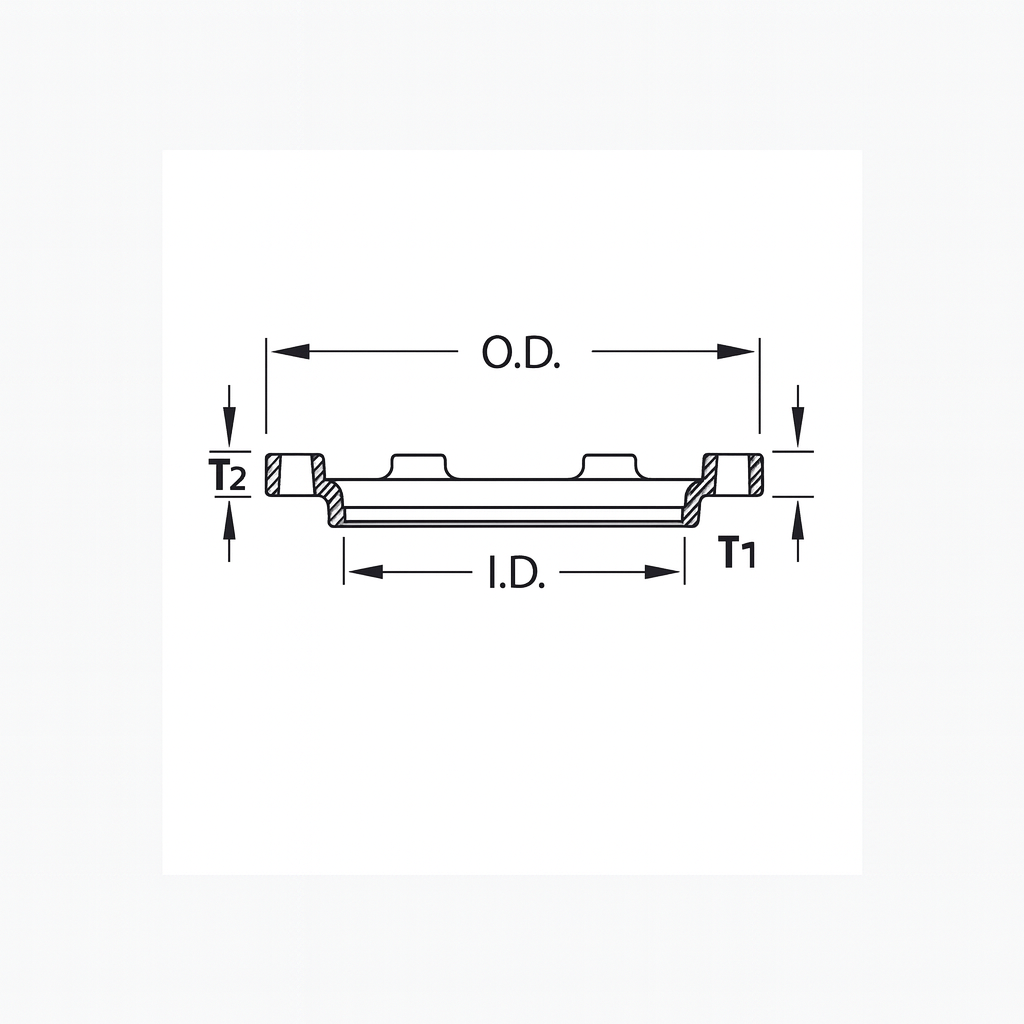

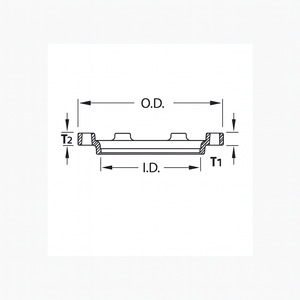

MJ Adapter Gland Ring Kits — Dimensions, Weights & Item Codes

Tables below include bolt size, quantity, weight, and item code for all C153 and C110 kits.
