INTEGRITY FUSION  |  SKU: 30092846  |  MPN: 100100

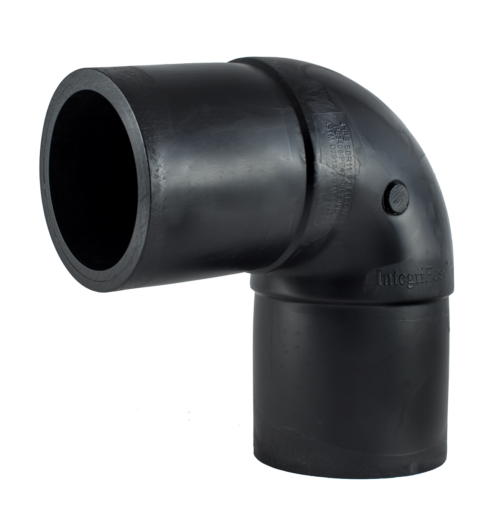

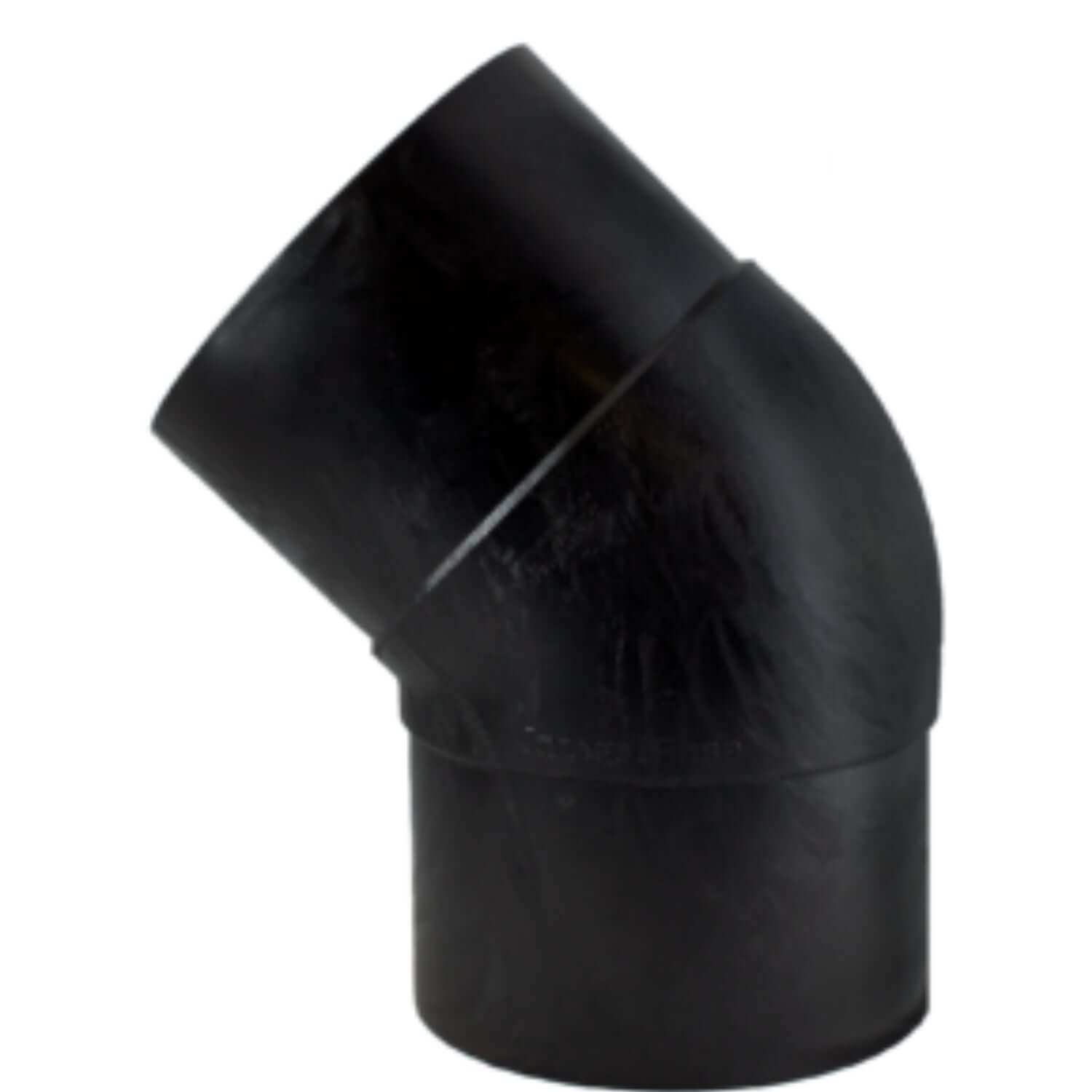

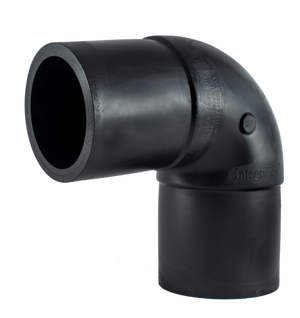

Molded Butt Fusion Elbow | IPS/DIPS | 45° & 90° | SDR 7–17

$6.00
price per each (min. order qty 25)
Size (ips | dips)
Angle (radius bend)
SDR
  • Precision Molded HDPE – Injection-molded PE4710/PE100 resin ensures long-term strength and performance
  • 45° & 90° Directional Changes – Reliable flow transitions for IPS and DIPS HDPE pipe systems
  • SDR 7–17 Options – Supports a wide range of pressure-rated applications
  • Smooth Flow Path – Low-turbulence interior design improves hydraulic efficiency
  • Municipal & Industrial Use – Ideal for water, wastewater, industrial, and underground utility installations
📄 Download Spec Sheet

Molded Butt Fusion Elbow | IPS/DIPS | 45° & 90° | SDR 7–17 — Product Overview

Molded Butt Fusion Elbows provide durable, pressure-rated directional changes for IPS and DIPS HDPE pipelines. Available in both 45° and 90° configurations, these elbows are injection-molded using high-quality PE4710/PE100 bi-modal resin for long-term strength and reliability across utility, municipal, and industrial applications.

Download Spec Sheets:

All elbows are manufactured in the USA and meet the performance requirements of ASTM D2513, ASTM D3261, ANSI/AWWA C901 & C906, FM 1613, and NSF 61. The product line covers SDR 7, SDR 9, SDR 11, and SDR 17 in sizes from 2″–12″ IPS and 4″–12″ DIPS, ensuring compatibility across a wide range of HDPE piping systems.

Key Features & Benefits

  • Precision Molded Design – Smooth internal flow path supports efficient hydraulic performance.
  • PE4710/PE100 Resin – High-performance material provides long-term strength and chemical resistance.
  • Pressure-Rated Options – Offered in SDR 7–17 for a variety of working pressures.
  • 45° & 90° Angles – Flexible installation options for directional changes.
  • IPS & DIPS Compatible – Covers a full range of common municipal and industrial piping sizes.

Applications

  • Municipal water & wastewater
  • Industrial process piping
  • Underground utility distribution
  • Potable water systems
  • Agricultural and rural water applications

Dimensions vary by SDR due to wall thickness differences; all SDR options are listed below.

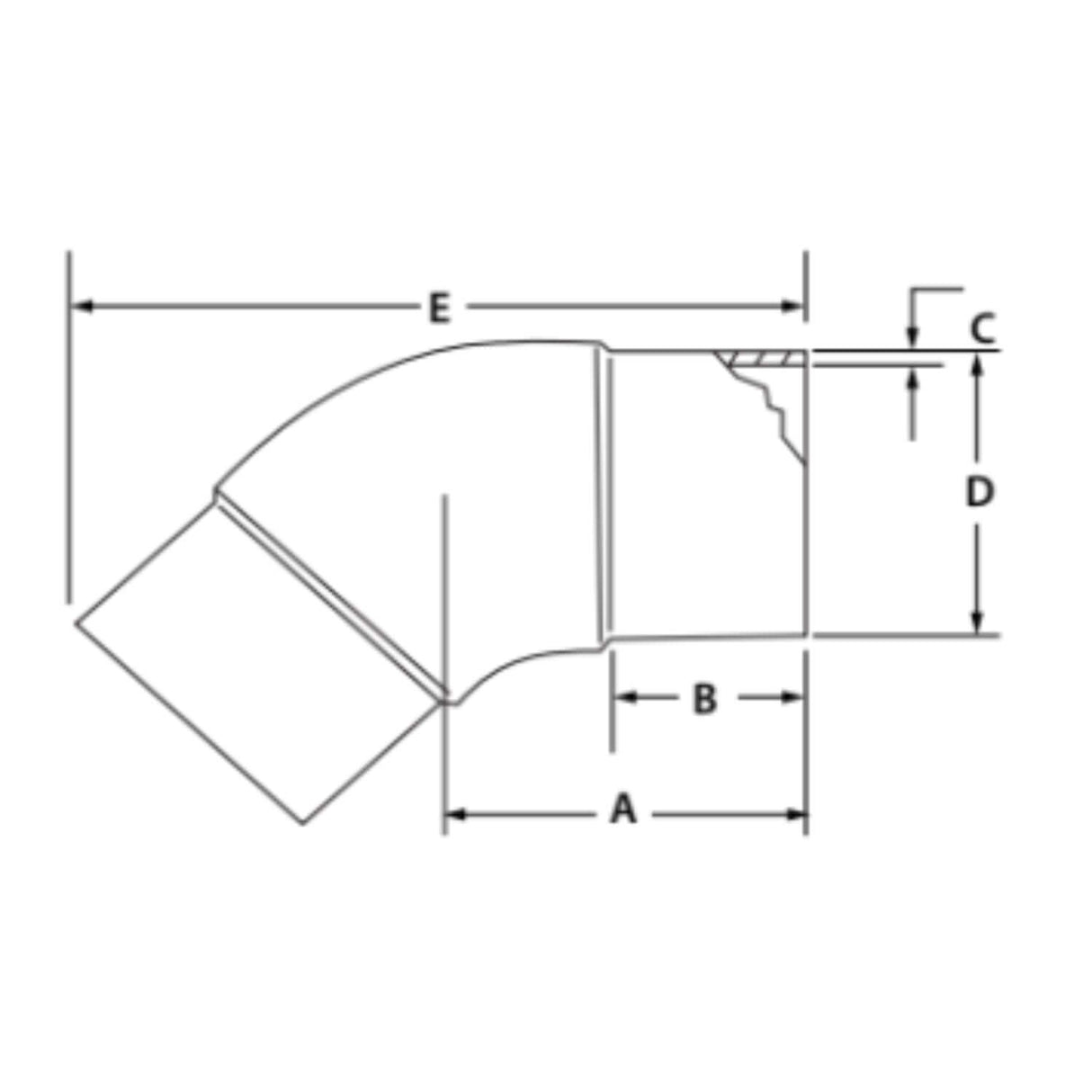

45° Elbow Dimensions — IPS Sizes

Size SDR A (in.) B (in.) C (in.) D (in.) E (in.) Item Code
2" IPS SDR 17 3.230 2.64 0.140 2.375 6.380 100002
2" IPS SDR 11 3.230 2.64 0.216 2.375 6.380 100001
2" IPS SDR 9 3.230 2.64 0.264 2.375 6.380 100004
2" IPS SDR 7 3.230 2.64 0.339 2.375 6.380 100003
3" IPS SDR 17 4.720 3.86 0.206 3.500 9.330 100006
3" IPS SDR 11 4.720 3.86 0.318 3.500 9.330 100005
3" IPS SDR 9 4.720 3.86 0.389 3.500 9.330 100008
3" IPS SDR 7 4.720 3.86 0.500 3.500 9.330 100007
4" IPS SDR 17 5.310 4.21 0.265 4.500 10.63 100010
4" IPS SDR 11 5.310 4.21 0.409 4.500 10.63 100009
4" IPS SDR 9 5.310 4.21 0.500 4.500 10.63 100012
4" IPS SDR 7 5.310 4.21 0.643 4.500 10.63 100011
6" IPS SDR 17 6.890 5.35 0.390 6.625 14.09 100014
6" IPS SDR 11 6.890 5.35 0.602 6.625 14.09 100013
6" IPS SDR 9 6.890 5.35 0.736 6.625 14.09 100016
6" IPS SDR 7 6.890 5.35 0.946 6.625 14.09 100015
8" IPS SDR 17 8.460 6.54 0.507 8.625 17.48 100018
8" IPS SDR 11 8.460 6.54 0.784 8.625 17.48 100017
8" IPS SDR 9 8.460 6.54 0.958 8.625 17.48 100020
8" IPS SDR 7 8.460 6.54 1.232 8.625 17.48 100019
10" IPS SDR 17 10.04 7.64 0.632 10.75 20.94 100022
10" IPS SDR 11 10.04 7.64 0.977 10.75 20.94 100021
10" IPS SDR 9 10.04 7.64 1.194 10.75 20.94 100030
10" IPS SDR 7 10.04 7.64 1.190 10.75 20.94 100035
12" IPS SDR 17 10.63 7.80 0.750 12.75 22.64 100024
12" IPS SDR 11 10.63 7.80 1.159 12.75 22.64 100023
12" IPS SDR 9 10.63 7.80 1.417 12.75 22.64 100043
12" IPS SDR 7 10.63 7.80 1.410 12.75 22.64 100044

45° Elbow Dimensions — DIPS Sizes

Size A (in.) B (in.) C (in.) D (in.) E (in.) Item Code
4" DIPS 6.050 4.10 0.436 4.800 12.00 100025
6" DIPS 7.160 5.10 0.627 6.900 14.56 100026
8" DIPS 8.320 5.20 0.823 9.050 17.56 100027
10" DIPS 9.110 6.09 1.010 11.10 16.33 100028
12" DIPS 11.11 7.56 1.200 13.18 17.56 100029

90° Elbow Dimensions — IPS Sizes

Size SDR A (in.) B (in.) C (in.) D (in.) E (in.) Item Code
2" IPS SDR 17 4.36 2.7 0.140 2.375 5.90 200064
2" IPS SDR 11 4.36 2.7 0.216 2.375 5.90 200065
2" IPS SDR 9 4.36 2.7 0.264 2.375 5.90 200066
2" IPS SDR 7 4.36 2.7 0.339 2.375 5.90 200067
3" IPS SDR 17 5.85 3.7 0.206 3.500 7.73 200073
3" IPS SDR 11 5.85 3.7 0.318 3.500 7.73 200074
3" IPS SDR 9 5.85 3.7 0.389 3.500 7.73 200075
3" IPS SDR 7 5.85 3.7 0.500 3.500 7.73 200076
4" IPS SDR 17 6.85 3.8 0.265 4.500 9.21 200083
4" IPS SDR 11 6.85 3.8 0.409 4.500 9.21 200084
4" IPS SDR 9 6.85 3.8 0.500 4.500 9.21 200085
4" IPS SDR 7 6.85 3.8 0.643 4.500 9.21 200086
6" IPS SDR 17 8.94 4.7 0.390 6.625 12.40 200093
6" IPS SDR 11 8.94 4.7 0.602 6.625 12.40 200094
6" IPS SDR 9 8.94 4.7 0.736 6.625 12.40 200095
6" IPS SDR 7 8.94 4.7 0.946 6.625 12.40 200096
8" IPS SDR 17 11.81 7.2 0.507 8.625 16.13 200097
8" IPS SDR 11 11.81 7.2 0.784 8.625 16.13 200098
8" IPS SDR 9 11.81 7.2 0.958 8.625 16.13 200099
8" IPS SDR 7 11.81 7.2 1.232 8.625 16.13 200100
10" IPS SDR 17 13.78 8.3 0.632 10.75 19.15 200101
10" IPS SDR 11 13.78 8.3 0.977 10.75 19.15 200102
10" IPS SDR 9 13.78 8.3 1.194 10.75 19.15 200103
10" IPS SDR 7 13.78 8.3 1.540 10.75 19.15 200104
12" IPS SDR 17 14.96 8.46 0.750 12.75 21.33 200105
12" IPS SDR 11 14.96 8.46 1.159 12.75 21.33 200106
12" IPS SDR 9 14.96 8.46 1.417 12.75 21.33 200107
12" IPS SDR 7 14.96 8.46 1.820 12.75 21.33 200108

90° Elbow Dimensions — DIPS Sizes

Size A (in.) B (in.) C (in.) D (in.) E (in.) Item Code
4" DIPS 7.550 4.10 0.436 4.800 10.04 100129
6" DIPS 9.670 5.10 0.627 6.900 13.34 100130
8" DIPS 11.580 5.20 0.823 9.050 16.33 100131
10" DIPS 13.000 5.50 1.010 11.10 18.00 100132
12" DIPS 14.000 5.87 1.200 13.20 20.00 100133
