PP-RCT Ball Valve | 1501PAB Series | Polyfusion x Polyfusion | Lead-Free Brass | 300 PSI WOG
PP-RCT Ball Valve | 1501PAB Series | Polyfusion x Polyfusion | Lead-Free Brass | 300 PSI WOG

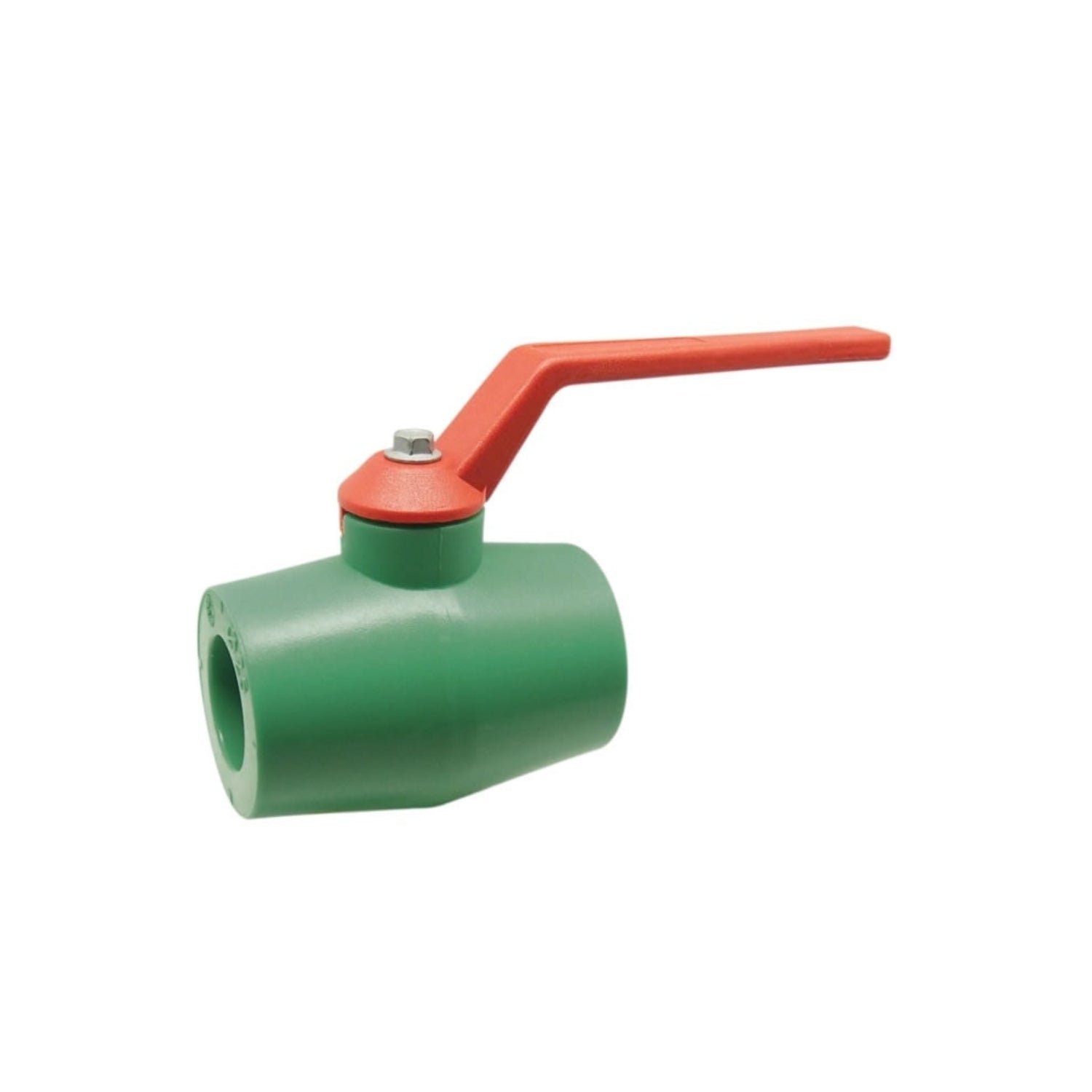

1501PAB Series PP-RCT Ball Valves provide long-lasting, corrosion-resistant flow control for potable water and hydronic systems. Constructed with a PP-RCT polypropylene body and polyfusion socket ends, each valve integrates directly into PP-RCT piping systems using heat fusion for a secure, leak-free installation.
Featuring a DZR lead-free brass chrome-plated ball, virgin PTFE seats, and blow-out proof stem, this valve is ideal for high-performance plumbing and HVAC applications. With a 300 PSI (WOG) pressure rating and temperature resistance up to 185°F (85°C), the 1501PAB ensures reliable service in residential, commercial, and green building systems.
Key Features & Benefits
- 300 PSI WOG Rating — Handles high-pressure operation up to 185°F for potable water and hydronic systems.
- Polyfusion x Polyfusion Ends — Socket fusion-ready PP-RCT connections provide a seamless, permanent bond to PP-RCT piping.
- Lead-Free DZR Brass Components — Includes chrome-plated ball and stem meeting NSF/ANSI 61 & 372, AB1953, IAPMO Z1157, and NSF-14 requirements.
- Durable, Chemical-Resistant Design — PTFE seats, NBR O-ring packing, and PP-RCT body ensure long-term resistance to pressure and corrosion.

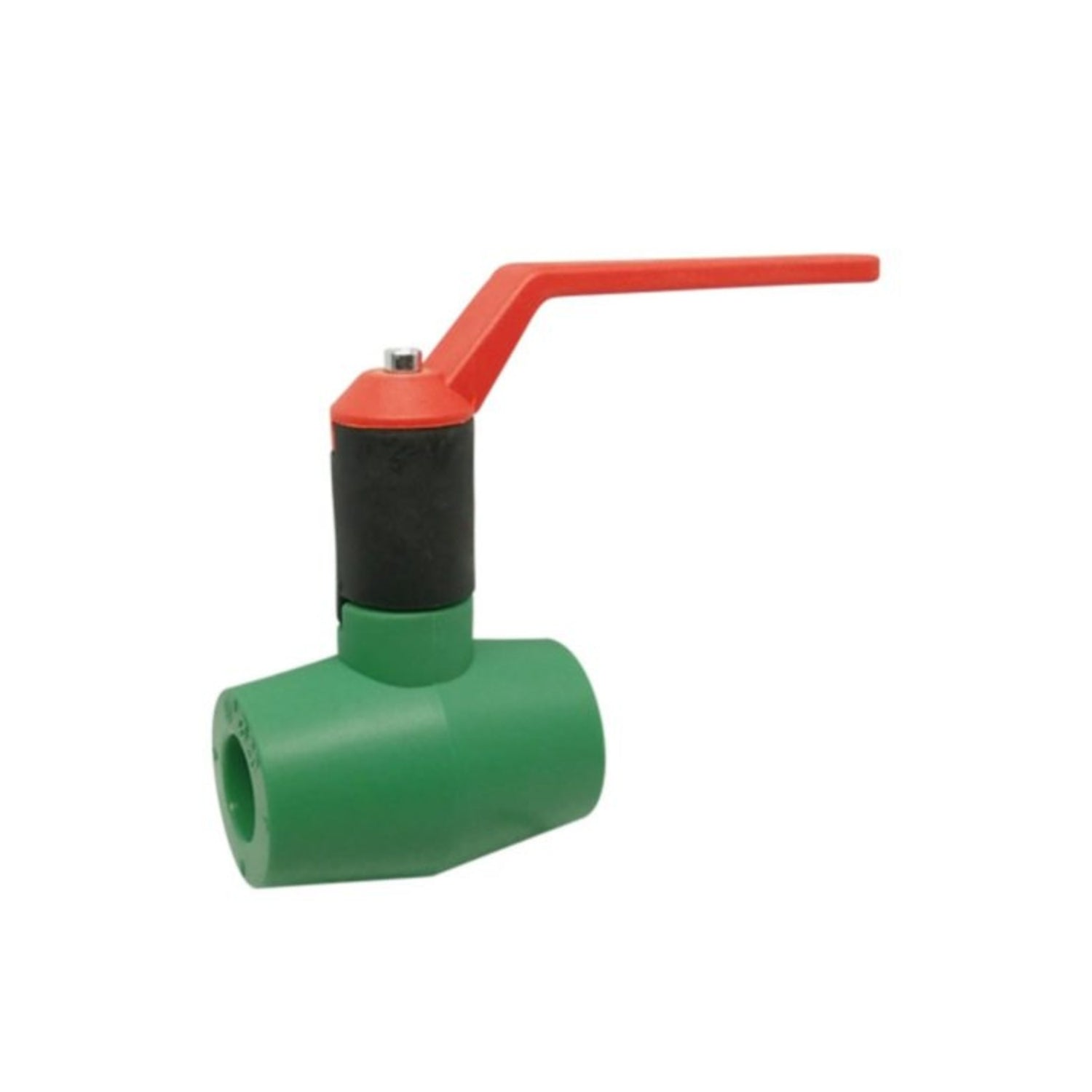

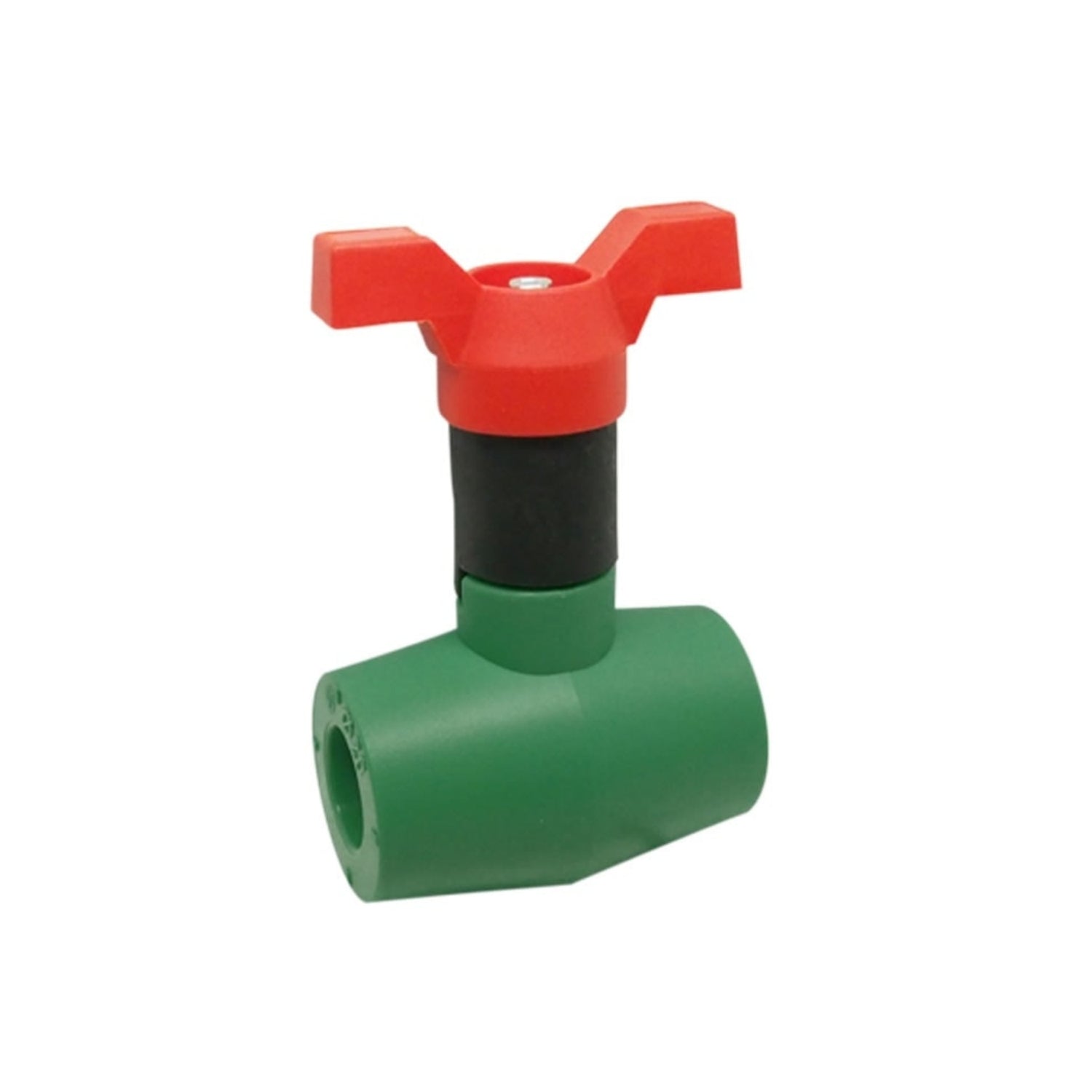

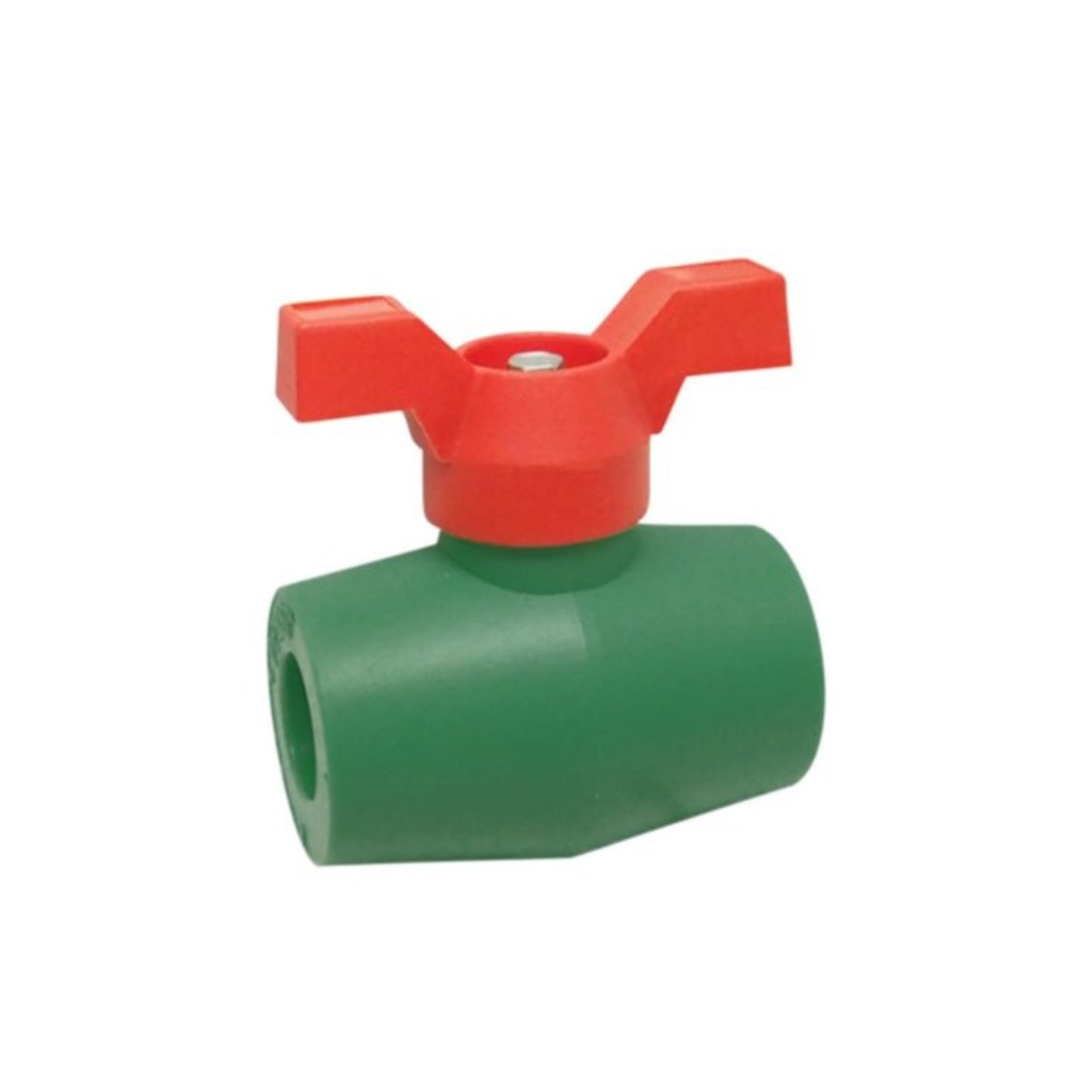

- Green Identification Body — Color-coded for lead-free compliance; compatible with extension stem and wing handle accessories.
Pressure & Temperature Ratings
| Pressure Rating | Temperature Range |
|---|---|
| 300 PSI (WOG) | Up to 185°F (85°C) |
Dimensions & Weight
| Size | OD [mm] | A [in] | B [in] | C [in] | D [in] | H [in] | L [in] | P [in] | Weight [lb] |
|---|---|---|---|---|---|---|---|---|---|
| ½″ | 20 | 2.66 | 0.76 | 0.57 | 1.81 | 2.36 | 4.02 | 0.59 | 0.30 |
| ¾″ | 25 | 2.78 | 0.96 | 0.63 | 2.01 | 2.36 | 4.02 | 0.59 | 0.32 |
| 1″ | 32 | 3.13 | 1.23 | 0.71 | 2.28 | 2.48 | 4.02 | 0.79 | 0.46 |
| 1¼″ | 40 | 3.70 | 1.54 | 0.81 | 2.91 | 3.07 | 4.70 | 0.98 | 0.80 |
| 1½″ | 50 | 4.29 | 1.94 | 0.93 | 3.35 | 3.27 | 4.70 | 1.26 | 1.14 |
| 2″ | 63 | 5.12 | 2.45 | 1.08 | 4.13 | 4.06 | 5.75 | 1.57 | 2.06 |
| 2½″ | 75 | 5.95 | 2.94 | 1.22 | 5.00 | 4.33 | 5.75 | 1.97 | 3.10 |
| 3″ | 90 | 6.81 | 3.53 | 1.42 | 6.10 | 5.24 | 8.07 | 2.56 | 4.79 |
Material Construction
| # | Component | Material | Specification |
|---|---|---|---|
| 1 | Cartridge Body | Polypropylene | PP-RCT |
| 2 | Lever Handle | Nylon | PA6-50G |
| 3 | O-Ring | NBR | NSF Approved |
| 4 | Stem | DZR Lead-Free Brass | ASTM B927 C27453 |
| 5 | Seat | PTFE | PTFE |
| 6 | Ball | DZR Lead-Free Brass / Cr Plated | ASTM B927 C27453 |
| 7 | Cartridge Cap | Polypropylene | PP-RCT |
| 8 | Screw | Steel / Geomet® Plated | Steel |
| 9 | Body | Polypropylene | PP-RCT |
Applications: Potable water distribution, hydronic heating/cooling, commercial plumbing systems, and sustainable building installations.
