RED-WHITE VALVE CORP.  |  SKU: 30078095  |  MPN: 206AB 1/2

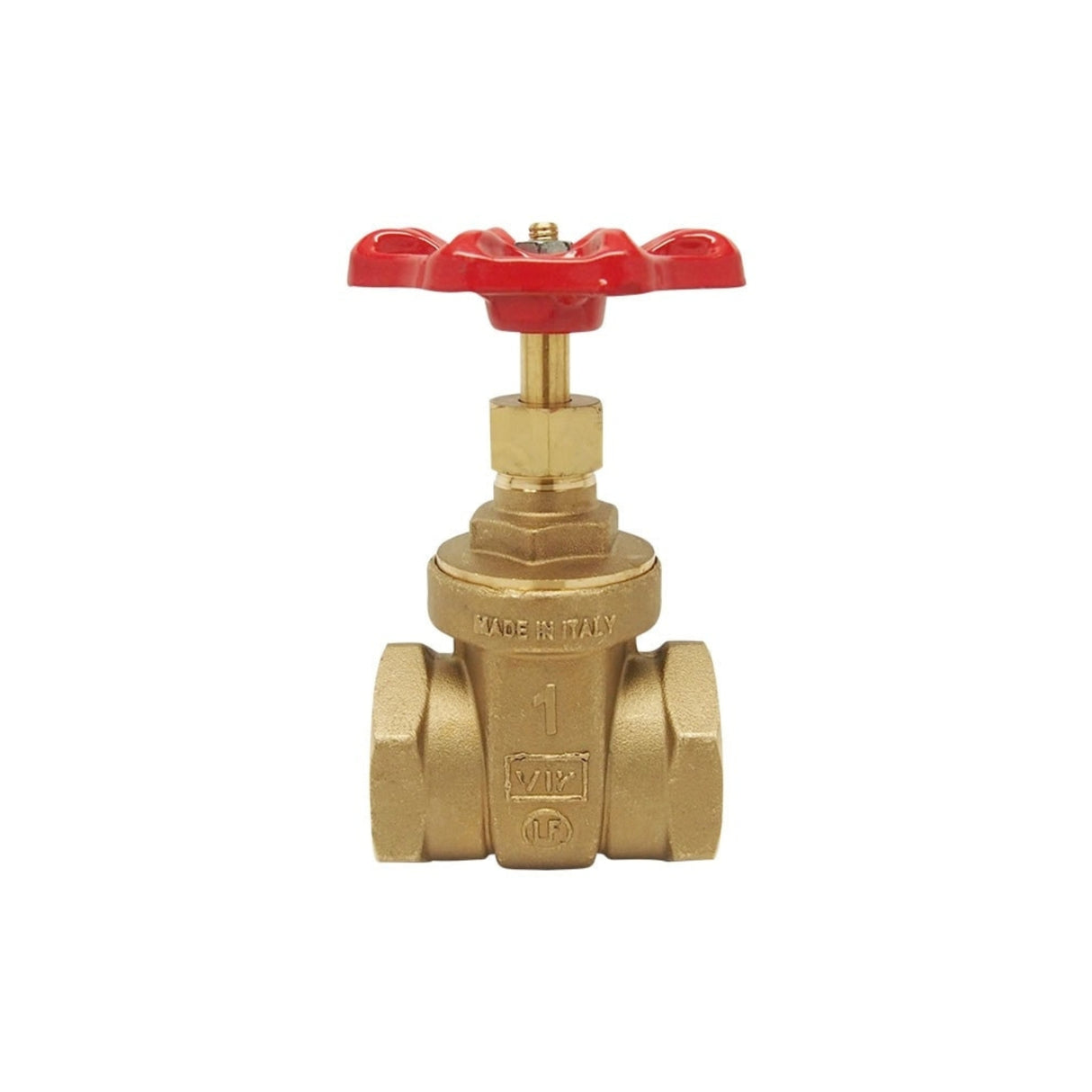

Threaded Gate Valve | 206AB Series | FNPT x FNPT | Lead-Free

$23.90
  • Certified Lead-Free Brass Construction — Made from ASTM B927 C28500 brass, fully compliant with AB1953, NSF/ANSI 61 & 372 standards.
  • Threaded FNPT x FNPT Ends — Machined to ASME B1.20.1 NPT for secure, leak-free connections in potable and hydronic systems.
  • Rugged Non-Rising Stem Design — Features screw-in bonnet, solid wedge disc, and brass stem for long service life.
  • High Pressure & Temperature Ratings — 200 psi WOG (32–160°F) and 125 psi WSP (up to 344°F) for demanding applications.
  • Eco-Compliant & BAA Approved — Meets Buy American Act and Safe Drinking Water Act lead-free definitions.
📄 Download Spec Sheet

Threaded Gate Valve | 206AB Series | FNPT x FNPT | Lead-Free

Red-White Valve 206AB Series is a high-performance, lead-free brass gate valve engineered for potable water and general service applications. Built to meet AB1953, NSF/ANSI 61 & 372 standards, this durable valve complies with the Safe Drinking Water Act (SDWA) and Buy American Act (BAA) requirements, making it an excellent choice for plumbing, HVAC, and industrial systems.

Key Features & Benefits

  • Lead-Free Certified Brass: Constructed from ASTM B927 C28500 brass for corrosion resistance and full compliance with AB1953 and NSF/ANSI standards.
  • Threaded FNPT x FNPT Ends: Machined to ASME B1.20.1 NPT standards for secure, leak-free connections in hydronic and potable water systems.
  • Rugged Construction: Screw-in bonnet, non-rising stem, and solid wedge disc provide dependable shutoff performance under pressure.
  • High Pressure & Temperature Ratings: 200 psi WOG (32°F–160°F) and 125 psi WSP (up to 344°F) for reliable service across multiple applications.
  • Eco-Compliant Design: NSF/ANSI 61 & 372 certified, AB1953 and BAA compliant, labeled with the ECO-VALVE mark for environmental assurance.

Applications

  • Potable water distribution systems
  • Commercial and residential plumbing
  • HVAC system isolation and control
  • Industrial and general utility piping

Technical Specifications

  • Size Range: ½″ through 4″
  • Body Material: Lead-Free Brass (ASTM B927 C28500)
  • Pressure Rating: 200 psi WOG / 125 psi WSP
  • Temperature Range: 32°F to 344°F
  • Stem Type: Non-rising
  • End Connection: FNPT x FNPT
  • Certifications: AB1953, NSF/ANSI 61 & 372, BAA Compliant

Dimension, Cv, Weight

Size T A [in] C [in] H [in] L [in] P [in] Cv Wt. [lb]
½″ ½″-14 NPT 1.97 0.65 2.79 2.36 0.51 12.4 0.54
¾″ ¾″-14 NPT 2.12 0.65 3.17 2.36 0.74 27.7 0.80
1″ 1″-11.5 NPT 2.44 0.78 3.93 2.75 1.00 56.8 1.18
1¼″ 1¼″-11.5 NPT 2.75 0.86 4.21 3.15 1.25 90.7 1.80
1½″ 1½″-11.5 NPT 2.84 0.86 4.82 3.15 1.50 137 2.40
2″ 2″-11.5 NPT 3.23 0.96 6.27 3.75 2.00 304 3.96
2½″ 2½″-8 NPT 3.81 1.10 7.09 5.12 2.36 340 6.80
3″ 3″-8 NPT 4.37 1.29 8.03 5.12 2.79 413 8.66
4″ 4″-8 NPT 5.15 1.49 10.31 5.90 3.81 725 15.52

Material

# Part Material Specification
1 Body Lead-Free Brass ASTM B927 C28500
2 Wedge Lead-Free Brass ASTM B927 C28500
3 Bonnet Lead-Free Brass ASTM B927 C28500
4 Stem Lead-Free Brass ASTM B927 C28500
5 Ring Lead-Free Brass ASTM B927 C28500
6 Packing Ring Graphite WRAS Approved
7 Packing Nut Brass ASTM B124 C37700
8 Handwheel Aluminum B85
9 Disc Aluminum B85
10 Nut Steel / Zinc-Plated A36

For complete pressure/temperature tables and flow data, refer to the Red-White Valve 206AB specification sheet.
