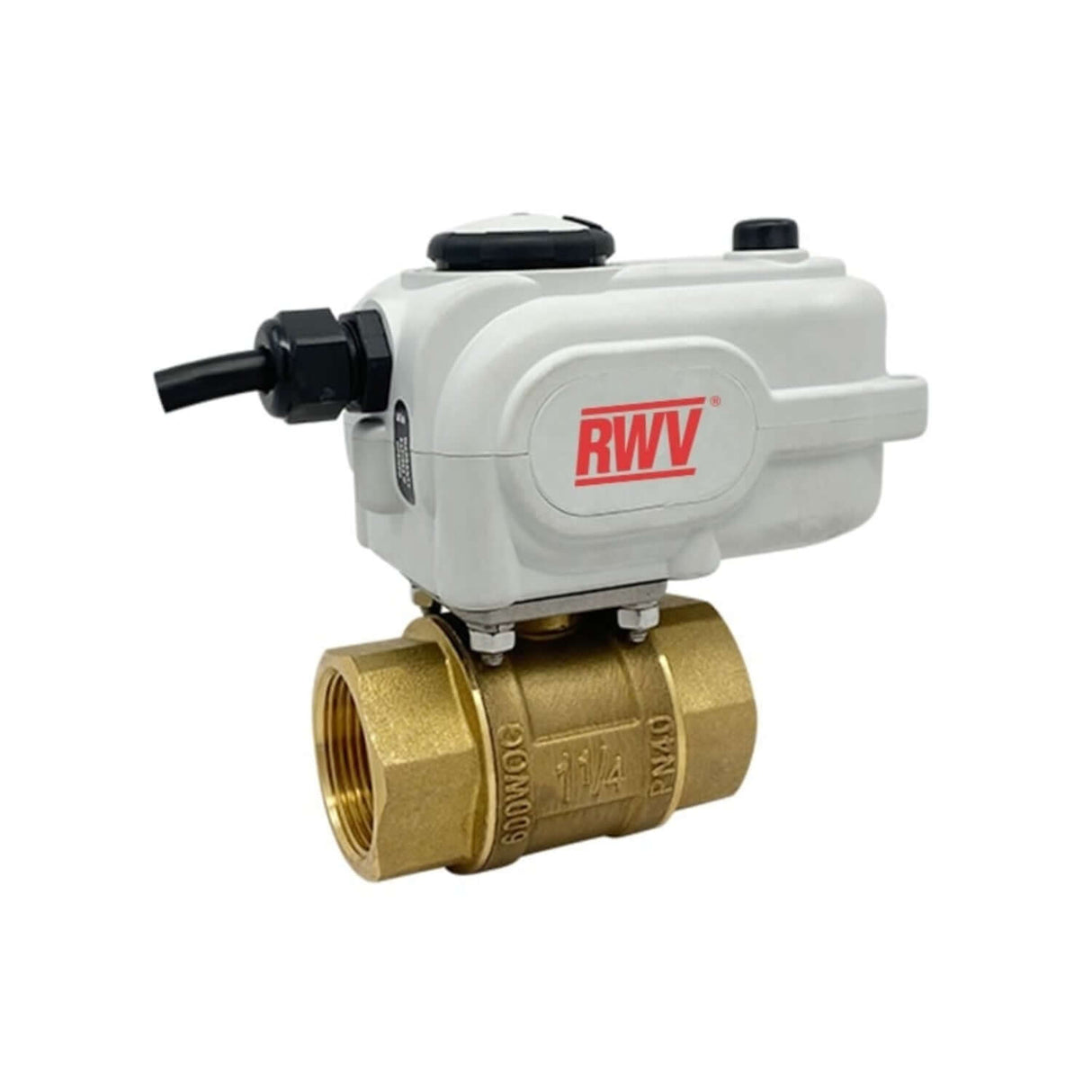

Upgrade your automated flow control with the 5930 Series 24VAC Electric Actuated Brass Ball Valve, engineered for dependable performance, precision, and long-term reliability. This full port valve combines a low-torque, blow-out proof stem with a weather-sealed IP65-rated actuator for smooth operation in HVAC, irrigation, and process automation systems.
Built with ASTM B283 C37700 brass and virgin PTFE seats, the 5930 ensures tight shutoff and extended service life under demanding applications. The integrated 24VAC actuator offers 3-point control, manual override, and an integral heater for consistent functionality even in variable environments.
Key Features
- 24VAC Electric Actuation: 3-point control system with 5W power draw, 90° rotation in 60 seconds, and built-in manual override.
- Rugged Brass Body: Made from ASTM B283 C37700 brass with chrome-plated ball and PTFE seats for corrosion resistance and tight shutoff.
- Threaded FNPT x FNPT Ends: Precision-machined per ASME B1.20.1 standards for quick, leak-tight installation.
- ISO 5211 F05 Mounting Flange: Direct-mount actuator interface eliminates the need for complex brackets.
- Low-Torque Design: Optimized for efficient operation and minimal power consumption without sacrificing performance.
- Double O-Ring Stem Seal: NSF-approved EPDM seals for improved reliability and reduced maintenance.
- High Pressure Rating: 600 PSI WOG at 15–160°F; 150 PSI WSP up to 250°F for versatile system compatibility.
- Wide Size Range: Available from ½″ to 2″ with Cv values from 17 to 269 for flexible flow requirements.
Actuator Specifications
- Power Supply: 24VAC, 50/60 Hz, 5W
- Torque: Max 11.1 ft-lb; Working 5.9 ft-lb
- Travel: 90° in 60 seconds
- Enclosure: IP65 rated with integrated heater
- Connection: ISO 5211 F05, stem square 0.35″ or 0.43″
- Wire Length: 31.5 inches
- Auxiliary Limit Switch: Dry contact rated 230V / 6A
- Weight: 1.76 lb (actuator only)
Pressure / Temperature Rating
| Pressure | Temperature |
|---|---|
| 600 psi | 15 °F – 160 °F |
| 150 psi | Max 250 °F |
Dimension, Cv, Weight
| Size | Connection | A (in) | D (in) | HEX (in) | H (in) | H1 (in) | P (in) | C (in) | Cv | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|---|
| ½″ | ½ - 14 NPT | 2.28 | 1.22 | 1.02 | 4.22 | 1.09 | 0.59 | 0.61 | 17 | 2.64 |
| ¾″ | ¾ - 14 NPT | 2.66 | 1.50 | 1.22 | 4.33 | 1.20 | 0.79 | 0.65 | 34 | 2.86 |
| 1″ | 1 - 11.5 NPT | 3.19 | 1.81 | 1.54 | 4.48 | 1.35 | 0.98 | 0.77 | 58 | 3.34 |
| 1¼″ | 1¼ - 11.5 NPT | 3.69 | 2.28 | 1.89 | 4.70 | 1.57 | 1.26 | 0.85 | 110 | 4.04 |
| 1½″ | 1½ - 11.5 NPT | 4.06 | 2.80 | 2.17 | 5.21 | 2.08 | 1.57 | 0.85 | 172 | 4.98 |
| 2″ | 2 - 11.5 NPT | 4.90 | 3.50 | 2.64 | 5.51 | 2.38 | 1.97 | 0.98 | 269 | 6.74 |
Material
| Part | Material | Specification |
|---|---|---|
| Body / End Piece / Ball | Brass | ASTM B283 C37700 |
| Seat | PTFE | PTFE |
| Stem | Brass | ASTM B124 C37700 |
| O-Ring | EPDM Peroxide | NSF Approved |
| Actuator Flange | Aluminum | ASTM B85 A03840 |
| Screws | Stainless Steel | UNI 5933-67 |
