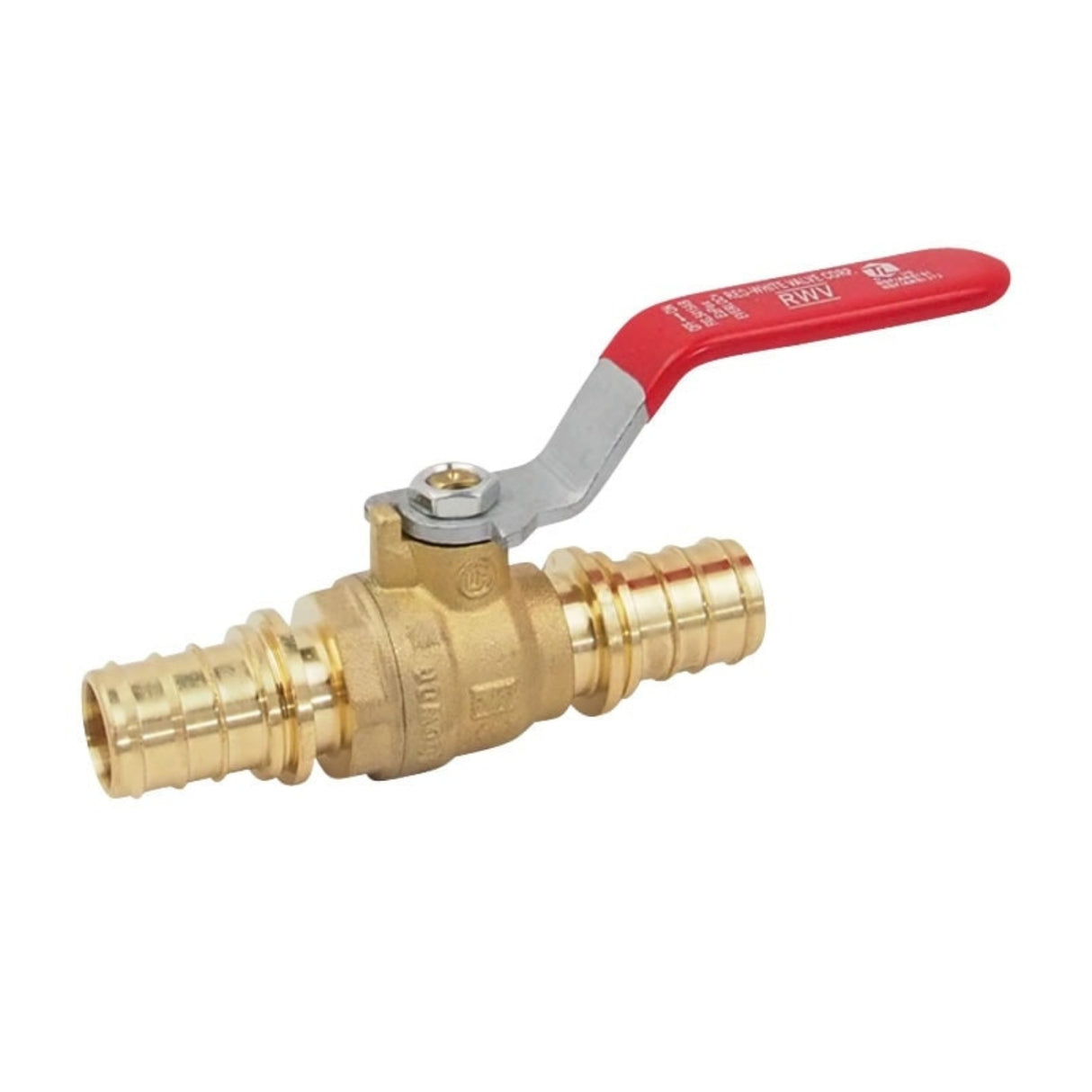

Hydronic Ball Valve | 5415AB Series | EVERLOC+ x EVERLOC+
Hydronic Ball Valve | 5415AB Series | EVERLOC+ × EVERLOC+ | Full Port | DZR Lead-Free Brass
5415AB Series Hydronic Ball Valves are designed for professional-grade PEX installations using the REHAU EVERLOC+® compression-sleeve system. With EVERLOC+ barb connections on both ends, this full-port valve provides exceptional flow performance, corrosion resistance, and long-term reliability in potable water, hydronic, and radiant heating systems. Built from DZR (Dezincification-Resistant) lead-free brass, the 5415AB meets or exceeds CSA B125.14, AB1953, and NSF/ANSI 61 & 372 standards.
Key Features & Benefits
- Lead-Free DZR Brass Construction — Engineered from ASTM B927 C27453 brass for corrosion resistance and potable water compliance.
- REHAU EVERLOC+ × EVERLOC+ Connections — Dual-barb configuration designed exclusively for REHAU PEXa pipe with EVERLOC+ compression sleeves and tools.
- Full-Port Flow Path — Minimizes pressure drop and maximizes system efficiency in hydronic and potable water applications.
- Chrome-Plated Brass Ball — Provides smooth operation and enhanced wear protection under high-pressure service.
- Dual NBR O-Ring Stem Sealing — Offers leak-free performance with superior chemical resistance and long service life.
- PTFE Seats — Chemically inert seats ensure tight sealing and low torque operation.
- Pressure Rating — Rated 300 PSI from 15 °F to 160 °F, 150 PSI max at 200 °F.
- Certified Lead-Free — NSF/ANSI 61 & 372, AB1953, and CSA B125.14 compliant.

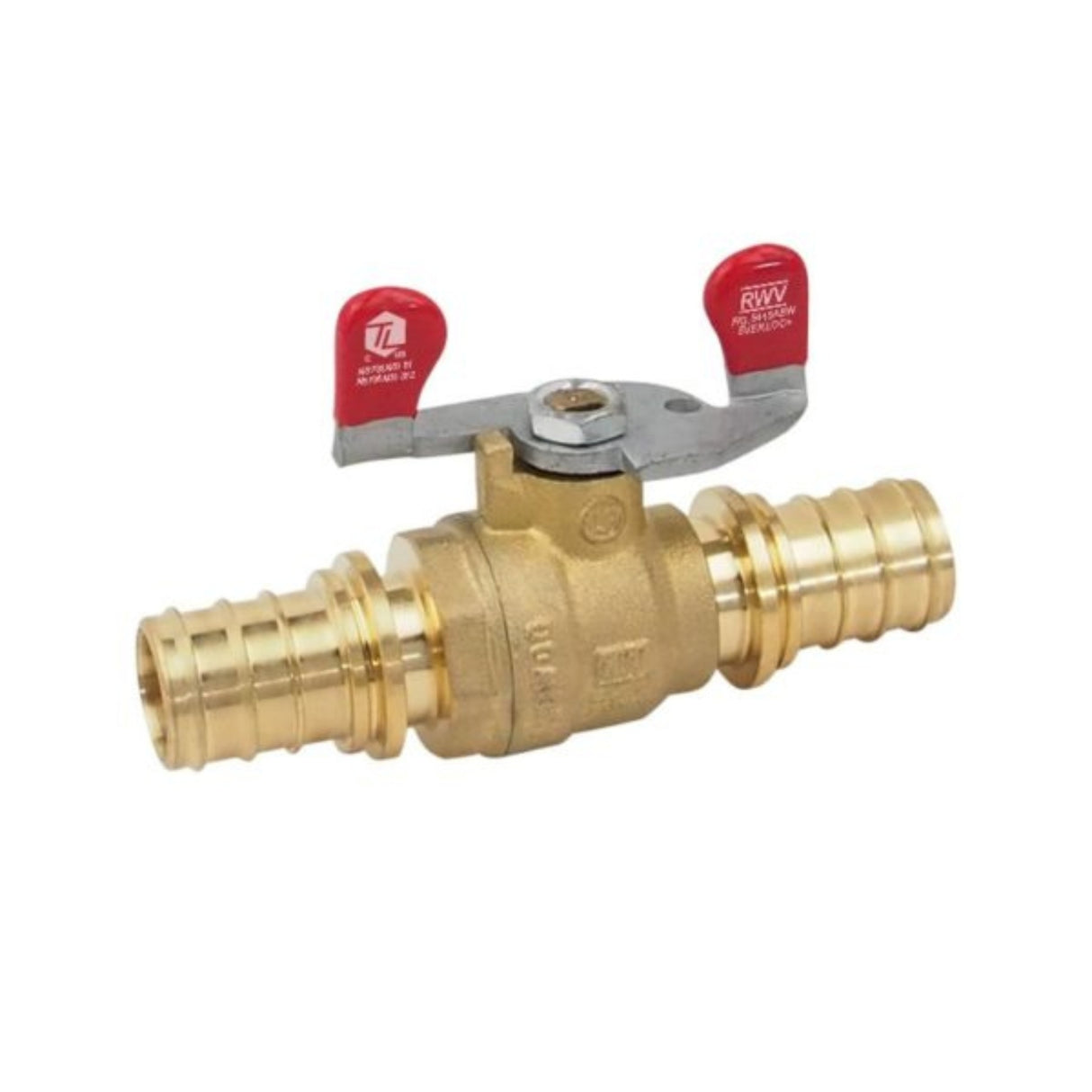

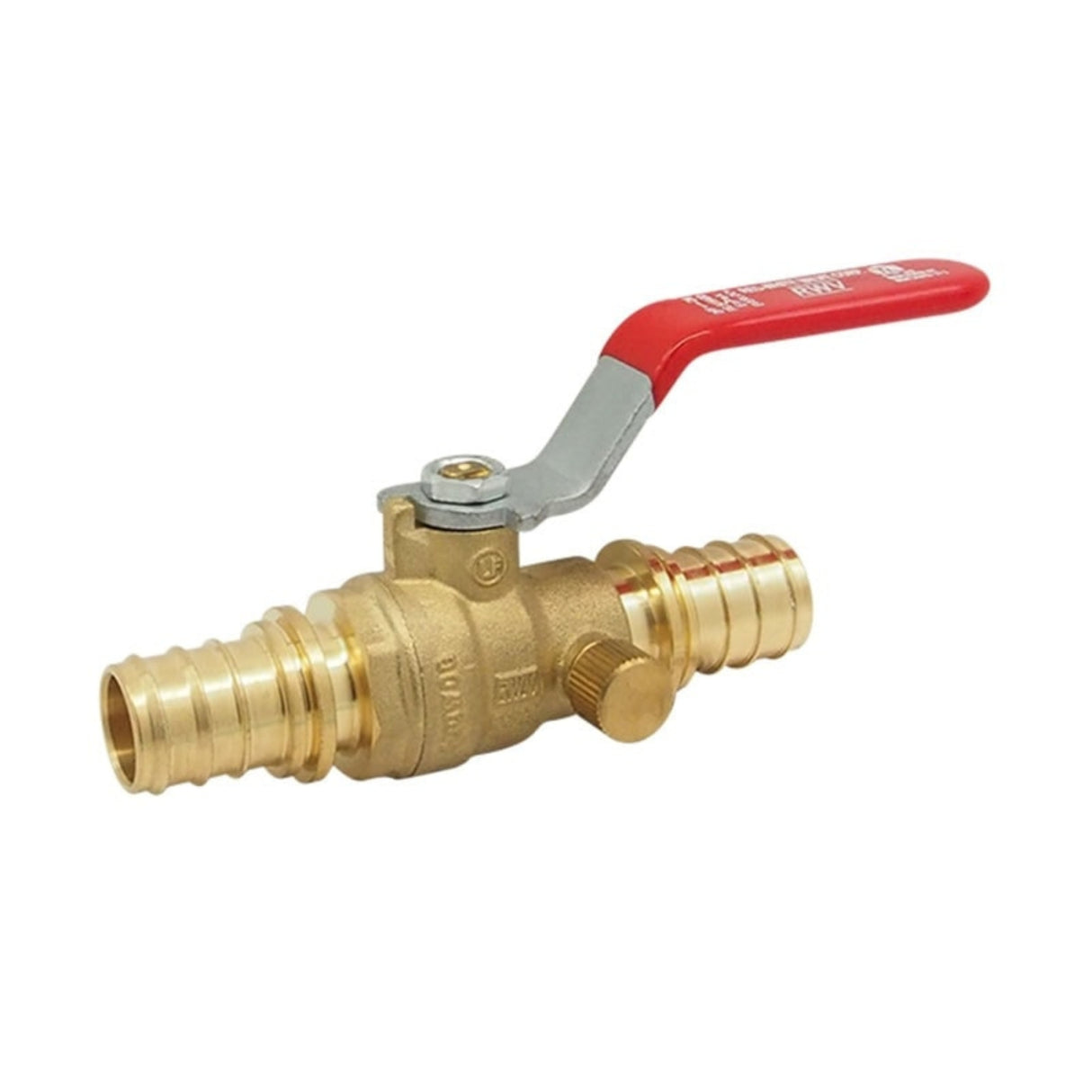

- Options — Available in wing handle configuration (5415ABW) or with drain port (5415ABD).
Installation Guidelines
Use only with REHAU EVERLOC+® compression sleeves, tools, and PEXa pipe. Follow all current REHAU Technical Guidelines available at the REHAU Resource Center. Licensed under one or more REHAU patents (view patent list).
Pressure / Temperature Rating
| Pressure | Temperature Range |
|---|---|
| 300 PSI | 15 °F to 160 °F |
| 150 PSI | Up to 200 °F |
Dimension, Weight
| Size | A [in] | H [in] | L [in] | P [in] | Weight [lb] |
|---|---|---|---|---|---|
| 1/2" | 2.94 | 1.38 | 3.19 | 0.38 | 0.30 |
| 3/4" | 4.00 | 1.77 | 3.58 | 0.60 | 0.56 |
| 1" | 4.82 | 1.93 | 3.58 | 0.77 | 0.87 |
| 1-1/4" | 5.45 | 2.05 | 4.96 | 0.94 | 1.30 |
| 1-1/2" | 6.27 | 2.19 | 4.96 | 1.14 | 1.83 |
| 2" | 7.50 | 2.83 | 5.55 | 1.50 | 3.29 |
Material Construction
| # | Part | Material | Specification |
|---|---|---|---|
| 1 | Body | DZR Lead-Free Brass | ASTM B927 C27453 |
| 2 | End Piece | DZR Lead-Free Brass | ASTM B927 C27453 |
| 3 | Ball | Chrome-Plated DZR Lead-Free Brass | ASTM B927 C27453 |
| 4 | Seat | PTFE | - |
| 5 | Stem | DZR Lead-Free Brass | ASTM B927 C27453 |
| 6 | O-Ring | NBR | NSF Approved |
| 7 | Handle | Steel, Dacromet® Plated | ASTM A36 |
| 8 | Handle Nut | Steel, Zinc Plated | ASTM A36 |
