Lead-Free Brass Ball Valve | 5592ABWS | FNPT x FNPT | Full Port

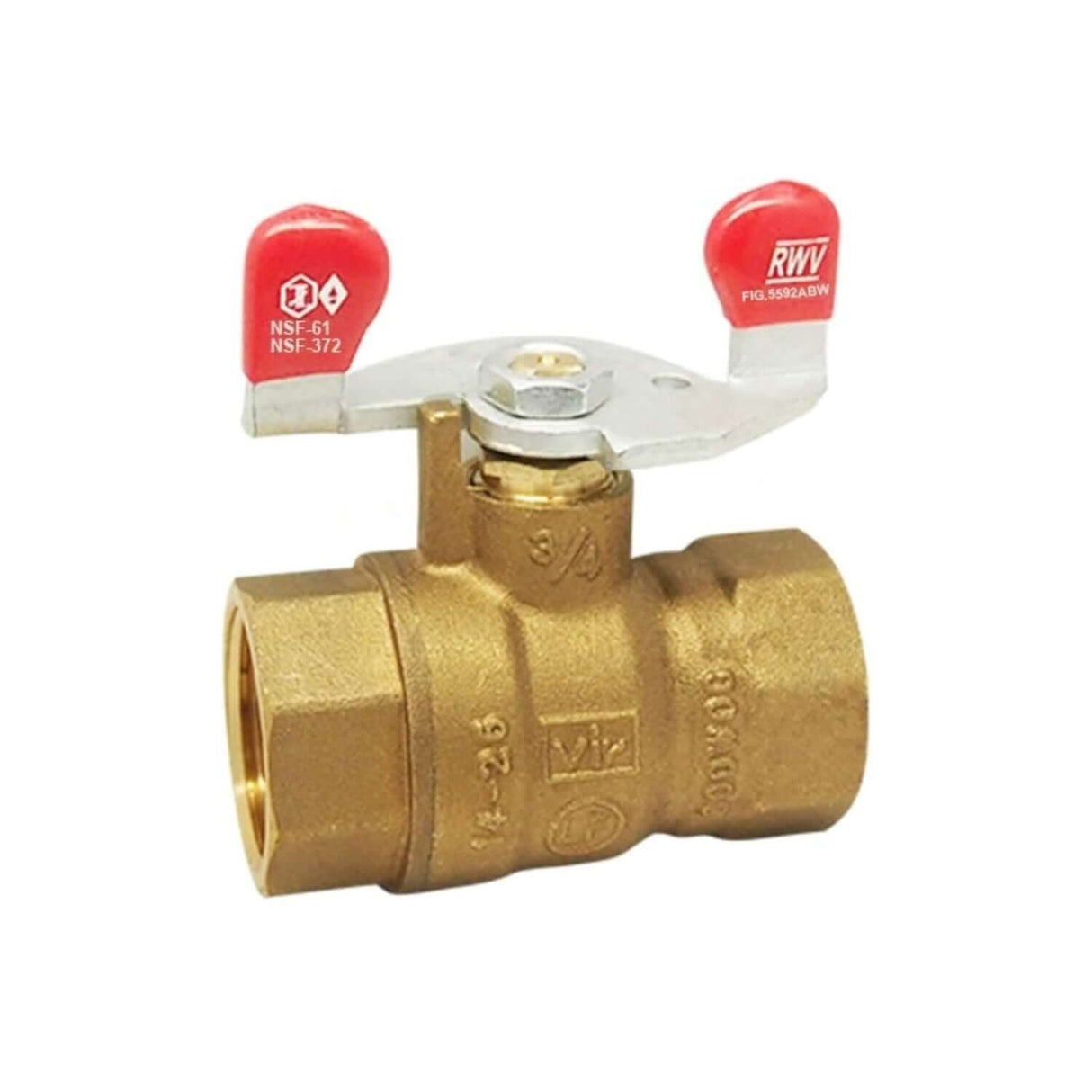

Lead-Free Brass Ball Valve | 5592ABWS Series | FNPT x FNPT | Stainless Steel Wing Handle
The 5592ABWS Lead-Free Brass Ball Valve combines safety, performance, and durability for potable water, plumbing, and mechanical systems. Featuring a stainless steel wing handle and nut, this full-port valve provides corrosion resistance, smooth operation, and NSF-certified lead-free compliance.
Built from ASTM B927 C27450 lead-free brass, the 5592ABWS is NSF/ANSI 61 & 372 certified, CSA ΔC approved, and UL listed. Its full port design delivers unrestricted flow, while the blow-out proof stem and PTFE seats ensure safety and long-term performance in both residential and commercial applications.
Key Features
- Certified Lead-Free Construction: Meets NSF/ANSI 61 & 372, AB1953, and U.S. Safe Drinking Water Act standards.
- Full Port Flow: Allows maximum water passage and minimal pressure loss for efficient operation.
- Stainless Steel Wing Handle: Corrosion-resistant 304 SS handle and nut for smooth control and long service life.
- FNPT x FNPT Threaded Ends: Machined to ASME B1.20.1 (NPT) standards for secure, leak-free installation.
- Blow-Out Proof Stem: Ensures safe maintenance and consistent sealing under pressure.
- PTFE Seats & Adjustable Packing: Deliver chemical resistance and field-serviceable sealing performance.
- CSA, UL, and ECO-VALVE Certified: Tested for performance and verified as lead-free for potable systems.
Pressure / Temperature Ratings
- 600 PSI WOG: from 15°F to 160°F
- 150 PSI WSP: maximum at 366°F
Applications
- Potable water and plumbing systems
- Commercial and residential installations
- HVAC and mechanical systems
- Irrigation and general shutoff applications
Dimension, Weight
| Size | Thread (T) | A (in) | C (in) | H (in) | L (in) | P (in) | Cv | Weight (lb) |
|---|---|---|---|---|---|---|---|---|
| 1/2" | 1/2 - 14 NPT | 2.17 | 0.61 | 1.93 | 2.44 | 0.50 | 11 | 0.39 |
| 3/4" | 3/4 - 14 NPT | 2.40 | 0.63 | 2.05 | 2.44 | 0.73 | 26 | 0.53 |
| 1" | 1 - 11.5 NPT | 2.91 | 0.75 | 2.52 | 3.27 | 0.95 | 55 | 0.88 |
Material
| # | Part | Material | Specification |
|---|---|---|---|
| 1 | Body | Lead-Free Brass | ASTM B927 C27450 |
| 2 | End Piece | Lead-Free Brass | ASTM B927 C27450 |
| 3 | Ball | Lead-Free Brass / Chrome-Plated | ASTM B927 C27450 |
| 4 | Seat | PTFE | PTFE |
| 5 | Stem | Lead-Free Brass | ASTM B927 C27450 |
| 6 | O-Ring | FKM | NSF Approved |
| 7 | Packing | PTFE | PTFE |
| 8 | Packing Nut | Brass | ASTM B124 C37700 |
| 9 | Wing Handle | Stainless Steel | 304 SS |
| 10 | Handle Nut | Stainless Steel | 304 SS |
⚠ California Prop 65 Warning:
This product can expose you to chemicals including lead, known to the State of California to cause cancer and reproductive harm.
For more information, visit www.P65Warnings.ca.gov.
