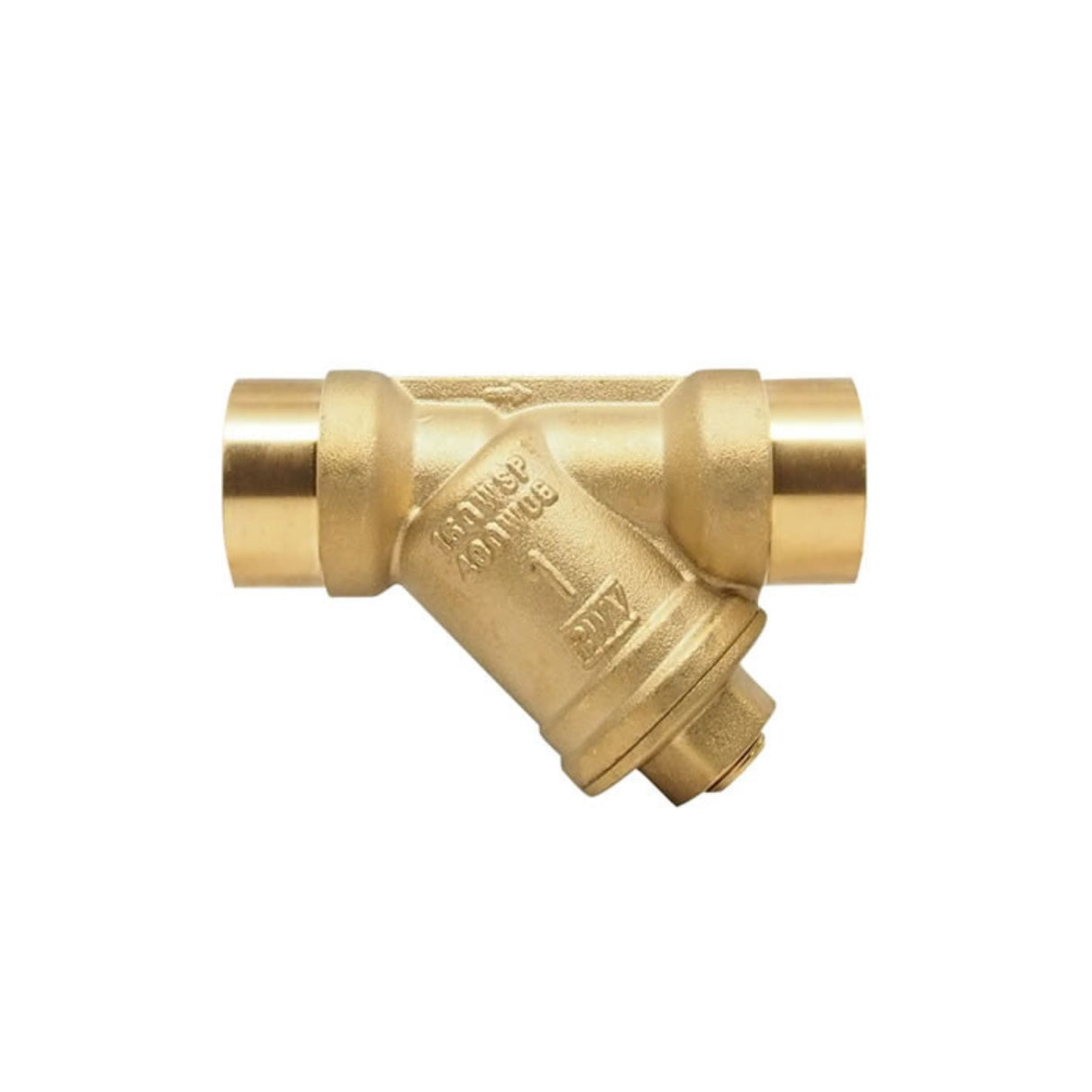

Red-White Valve’s 387AB Lead-Free Brass Solder Y-Strainer is built for reliable performance and easy maintenance in potable water and HVAC systems. Constructed from ASTM B927 C27450 lead-free brass and featuring a stainless steel 20-mesh (AISI 304) screen, it effectively filters debris while maintaining smooth, unrestricted flow through solder end connections.
Designed for both residential and commercial plumbing systems, this Y-strainer complies with AB1953 and NSF/ANSI 61 & 372 lead-free requirements under the Drinking Water Act. Its threaded cap and clean-out plug simplify service and cleaning, and the 150# WSP / 400# WOG pressure ratings make it suitable for demanding hot or cold water applications.
Key Features
- Lead-Free Brass Construction — Complies with AB1953, NSF/ANSI 61 & 372 for safe potable water systems.
- High Pressure Rating — Handles 150# WSP and 400# WOG, suitable for hydronic and domestic water lines.
- Solder × Solder Ends — ASME B16.22 compliant for quick, secure solder installations.
- Stainless Steel Mesh Screen — 20-mesh 304 stainless steel resists corrosion while capturing particulates.
- Cleanout Design — Threaded cap with removable plug allows easy cleaning and debris removal.
- Eco-Valve Certified — Environmentally responsible, C US certified lead-free design.
Pressure / Temperature Rating
| Pressure / Temperature Rating | |
|---|---|
| 150 PSI WSP | 400 PSI WOG |
Dimension, Cv, Weight
| Size | S | A [in] | H [in] | P [in] | C [in] | Cv | Wt. [lb] |
|---|---|---|---|---|---|---|---|
| ½″ | 0.627–0.631 | 2.68 | 2.01 | 0.59 | 0.51 | 2.89 | 0.40 |
| ¾″ | 0.877–0.881 | 3.07 | 2.20 | 0.67 | 0.75 | 6.46 | 0.54 |
| 1″ | 1.128–1.131 | 3.79 | 2.64 | 0.79 | 0.91 | 10.18 | 0.78 |
| 1¼″ | 1.378–1.381 | 4.53 | 3.43 | 1.26 | 0.98 | 24.59 | 1.34 |
| 1½″ | 1.628–1.632 | 5.16 | 4.06 | 1.57 | 1.09 | 35.22 | 1.82 |
| 2″ | 2.128–2.132 | 6.10 | 4.65 | 1.97 | 1.34 | 55.28 | 2.56 |
Material Construction
| # | Part | Material | Specification |
|---|---|---|---|
| 1 | Body | Lead-Free Brass | ASTM B927 C27450 |
| 2 | Screen | Stainless Steel | AISI 304 S30400 (20 mesh) |
| 3 | Gasket | PTFE | PTFE |
| 4 | Cap | Lead-Free Brass | ASTM B927 C27450 |
| 5 | Plug | Lead-Free Brass | ASTM B927 C27450 |
Warning (California Prop 65): This product can expose you to chemicals including lead, known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
