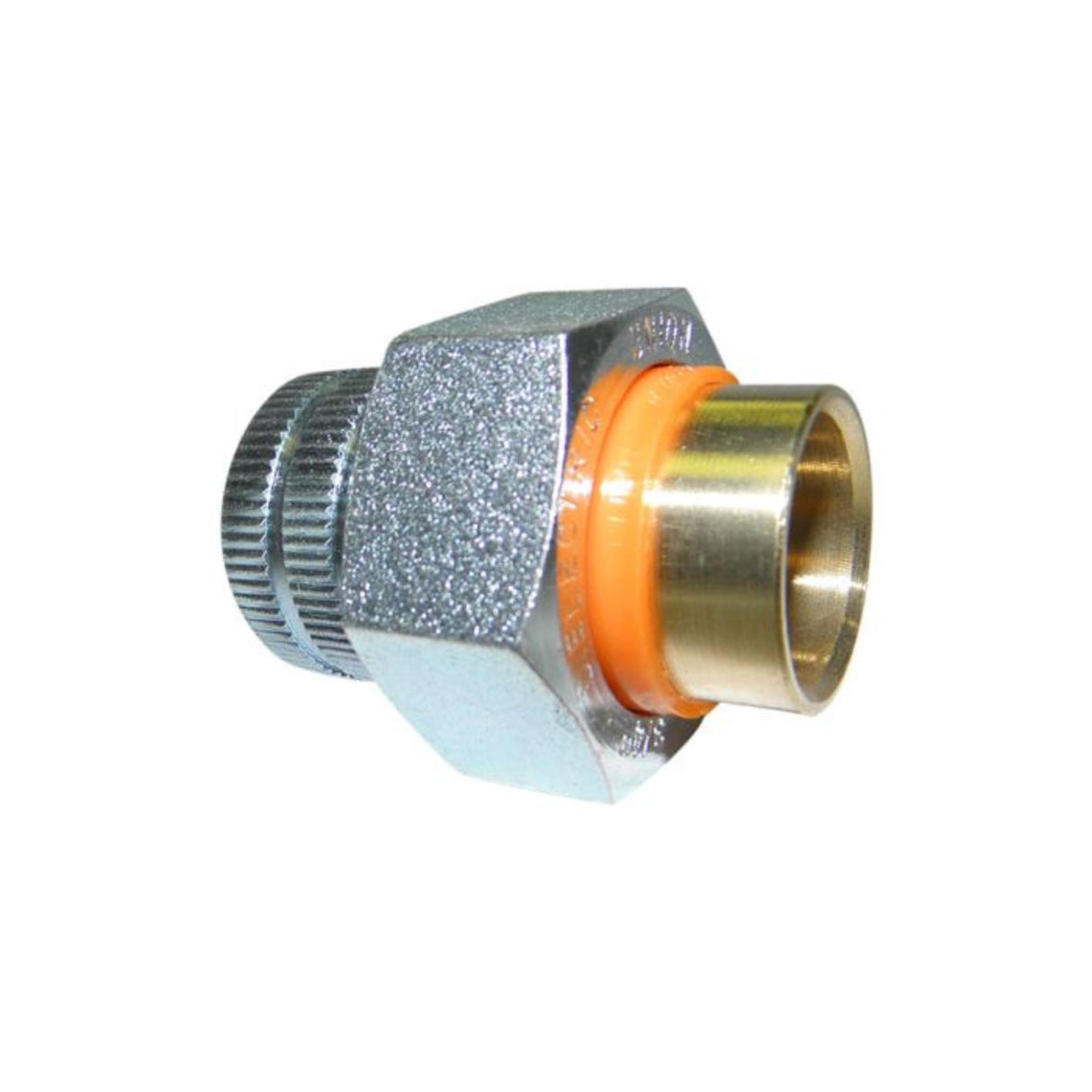

Red-White Valve’s 1900AB Lead-Free Dielectric Union provides a corrosion-resistant connection between dissimilar metals such as copper and steel, preventing electrolytic action and extending system life. Built to ANSI/ASME B16.39 standards, this union combines strength, precision, and certified lead-free performance for potable-water and hydronic systems.
Manufactured from forged steel (ASTM A105) and lead-free brass tailpiece (ASTM B927 C28450), the 1900AB is rated to 200 PSI WOG and certified to AB1953, NSF/ANSI 61 & 372. Its EPDM gasket and non-conductive plastic insulator ensure long-term leak resistance and galvanic protection.
Key Features
- Lead-Free Certified — Complies with AB1953 and NSF/ANSI 61 & 372 standards for safe potable-water use.
- Dielectric Isolation — Plastic insulator sleeve prevents galvanic corrosion between dissimilar metals.
- Durable Forged Steel Body — Zinc-plated union body and nut provide maximum strength and corrosion resistance.
- EPDM Gasket — NSF-approved elastomer ensures a watertight, chemical-resistant seal under pressure.
- FNPT × Solder Connection — Allows easy transition between threaded and copper systems.
- 200 PSI WOG Rated — Suitable for water, oil, and gas systems up to 200 PSI and 180 °F operating temperature.
Pressure / Temperature Rating
| Pressure Rating | Temperature Range |
|---|---|
| 200 PSI WOG | Up to 180 °F |
Dimension / Weight
| T (in) | Thread | D (in) | A (in) | E (in) | W (in) | Weight [lb] |
|---|---|---|---|---|---|---|
| ½″ | ½-14 NPT | 0.627–0.631 | 1.81 | 1.63 | 1.44 | 0.32 |
| ¾″ | ¾-14 NPT | 0.877–0.881 | 2.09 | 1.85 | 1.61 | 0.42 |
| 1″ | 1-11.5 NPT | 1.128–1.131 | 2.32 | 2.15 | 1.87 | 0.54 |
| 1¼″ | 1¼-11.5 NPT | 1.378–1.381 | 2.56 | 2.60 | 2.26 | 0.84 |
| 1½″ | 1½-11.5 NPT | 1.628–1.632 | 2.68 | 2.95 | 2.76 | 1.26 |
| 2″ | 2-11.5 NPT | 2.128–2.132 | 2.95 | 3.74 | 3.46 | 2.08 |
Material Construction
| # | Part | Material | Specification |
|---|---|---|---|
| 1 | Union Nut | Steel (Zn Plated) | ASTM A105 |
| 2 | Insulator | Plastic | — |
| 3 | Tailpiece | Lead-Free Brass | ASTM B927 C28450 |
| 4 | Gasket | EPDM | NSF Approved |
| 5 | Union Body | Steel (Zn Plated) | ASTM A105 |
Warning (California Prop 65): This product can expose you to chemicals including lead, known to the State of California to cause cancer and reproductive harm. For more information, visit www.P65Warnings.ca.gov.
