Lead-Free Brass Hose Bibb Valve | RW-514AB Series | MNPT × Hose
$12.70
Unit price
/
Select Option
Lead-Free Brass Hose Bibb Valve | RW-514AB Series | MNPT × Hose
Red-White Valve’s RW-514AB Lead-Free Brass Ball Valve Hose Bibb provides a durable, code-compliant solution for outdoor faucets, irrigation systems, and potable-water installations. Manufactured from lead-free brass and certified to NSF/ANSI 61 & 372 and AB1953, this ECO-VALVE model combines corrosion resistance, leak-free operation, and long service life for professional or residential applications.
Key Features
- Lead-Free Brass Construction — Made from ASTM B927 C27450 brass, ensuring compliance with NSF/ANSI 61 & 372 and AB1953 lead-free regulations for potable water systems.
- Chrome-Plated Brass Ball — Provides smooth, low-torque operation and outstanding corrosion resistance.
- PTFE Seats — Virgin PTFE seats offer excellent wear resistance and a reliable seal for leak-free service.
- Double NBR O-Rings — NSF-approved O-rings ensure lasting sealing integrity and prevent leakage under repeated use.
- No-Kink Spout — Maintains consistent water flow while preventing hose twisting or restriction.
- Threaded MNPT × Hose End — Conforms to ASME B1.20.1-NPT and standard garden-hose threading for simple, secure installation.

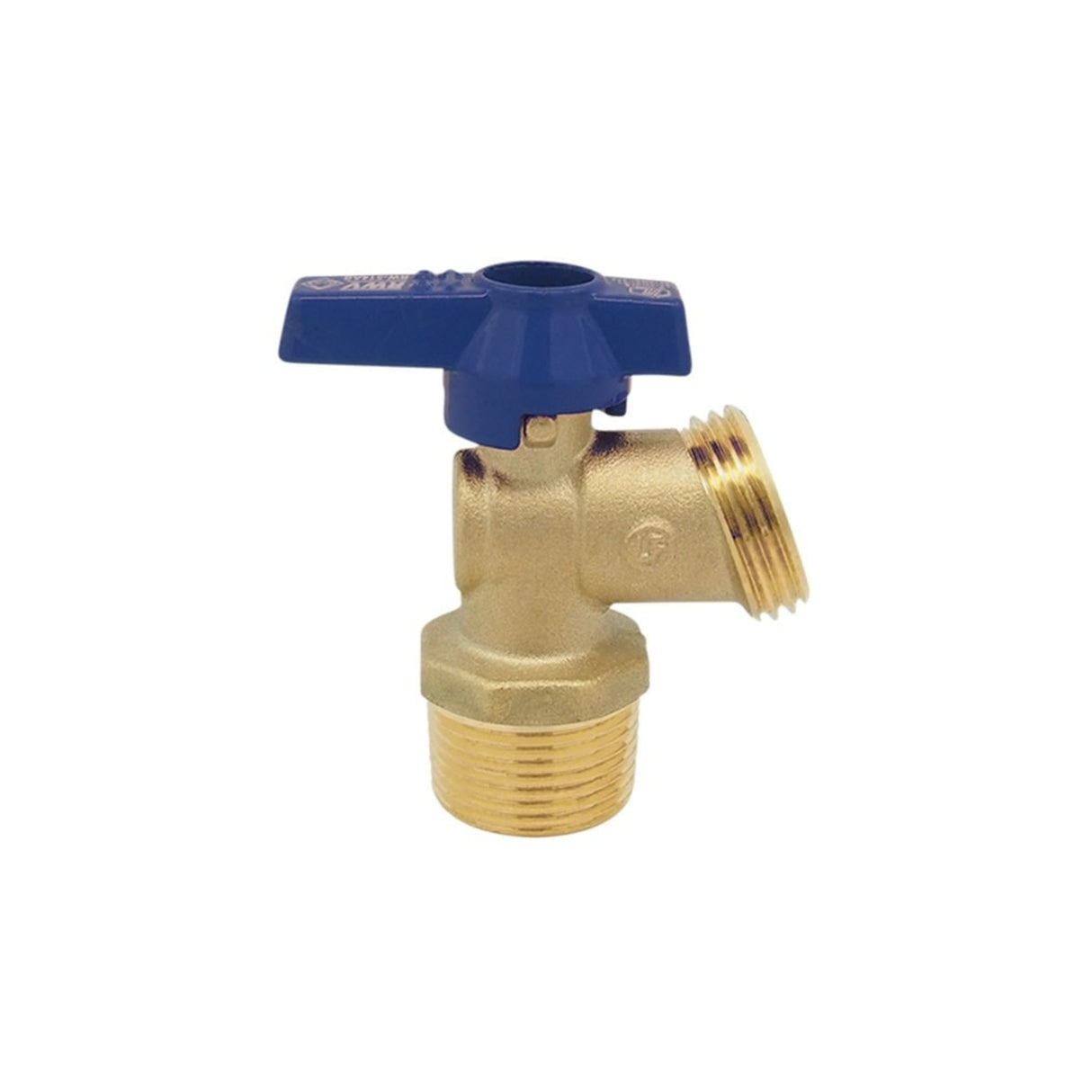

- Color-Coded Handles — Available in red (RW-514AB) or blue (RW-514ABBLUE) for easy system identification.
Pressure / Temperature Rating
| Pressure Rating | Max Temperature |
|---|---|
| 125 CWP | 180 °F |
Dimension / Weight
| Size | T | A [in] | H [in] | H1 [in] | L [in] | Weight [lb] |
|---|---|---|---|---|---|---|
| ½″ | ½ – 14 NPT | 1.32 | 1.20 | 1.34 | 1.89 | 0.30 |
| ¾″ | ¾ – 14 NPT | 1.32 | 1.20 | 1.34 | 1.89 | 0.34 |
Material Construction
| # | Part | Material | Specification |
|---|---|---|---|
| 1 | Body | Lead-Free Brass | ASTM B927 C27450 |
| 2 | End Piece | Lead-Free Brass | ASTM B927 C27450 |
| 3 | Ball | Lead-Free Brass / Chrome Plated | ASTM B927 C27450 |
| 4 | Seat | PTFE | PTFE |
| 5 | Stem | Lead-Free Brass | ASTM B927 C27450 |
| 6 | O-Ring | NBR | NSF Approved |
| 7 | Handle | Aluminum | — |
| 8 | Handle Nut | Steel / Zn Plated | ASTM A36 |
Warning (California Prop 65): This product can expose you to chemicals including lead, known to the State of California to cause cancer and reproductive harm. For more information, visit www.P65Warnings.ca.gov.
