Lead-Free Brass Swing Check Valve | 247AB Series | Solder × Solder
Lead-Free Brass Swing Check Valve | 247AB Series | Solder × Solder

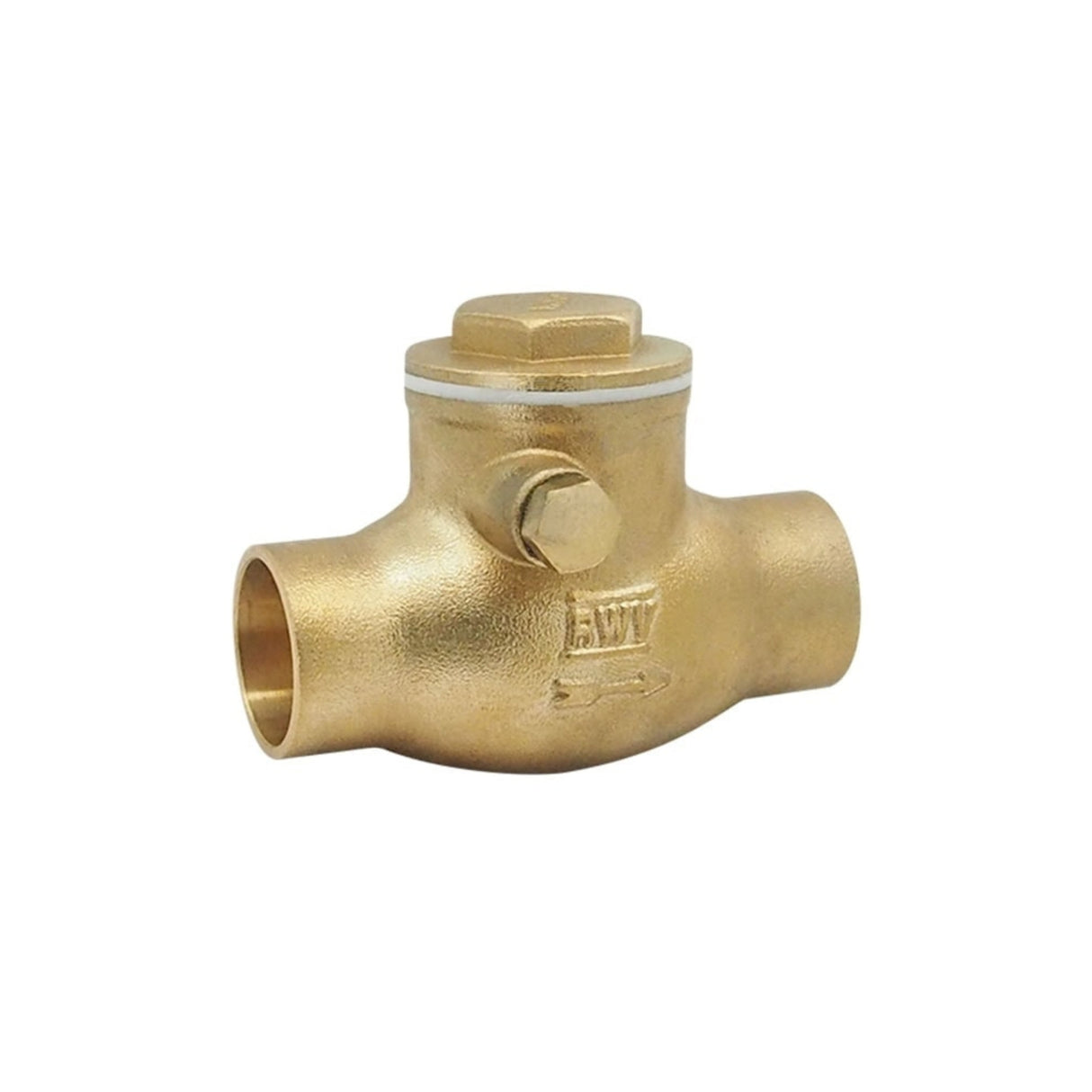

Red-White Valve’s 247AB Lead-Free Brass Swing Check Valve provides reliable, corrosion-resistant backflow prevention for potable-water and hydronic systems. Its horizontal “T” pattern design and solder × solder ends (ASME B16.22) ensure smooth installation and long-term, leak-free performance.
Built from ASTM B927 C27450 lead-free brass and certified to AB1953 and NSF/ANSI 61 & 372, this ECO-VALVE meets the Drinking Water Act definition of lead-free (< 0.25 % lead content by wetted surface ratio). Rated 200 PSI WOG @ 450 °F max, the 247AB is suited for residential, commercial, and light-industrial installations.
Key Features
- Lead-Free Certified Brass Body — Complies with AB1953 and NSF/ANSI 61 & 372 for safe potable water use.
- Solder × Solder Connections — ASME B16.22 compliant for easy, leak-tight copper pipe joins.
- Horizontal “T” Pattern Design — Provides efficient flow with low pressure drop and reliable backflow prevention.
- High Temperature & Pressure Rated — Handles 200 PSI WOG up to 450 °F, ideal for hot-water and heating applications.
- PTFE Gasket Seal — Chemically resistant for tight, long-lasting sealing performance.
- Available in ½″ to 4″ Sizes — Precision-machined with stainless-steel stem for sizes 2½″–4″.
Pressure / Temperature Rating
| Pressure Rating | Temperature Range |
|---|---|
| 200 PSI WOG | Max 450 °F |
Dimension, Weight
| Size | S [in] | A [in] | H [in] | L [in] | B [in] | C [in] | P [in] | Wt [lb] |
|---|---|---|---|---|---|---|---|---|
| ½″ | 0.627-0.631 | 2.32 | 1.39 | 1.26 | 0.96 | 0.51 | 0.51 | 0.34 |
| ¾″ | 0.877-0.881 | 2.93 | 1.57 | 2.50 | 1.02 | 0.75 | 0.73 | 0.58 |
| 1″ | 1.128-1.131 | 3.66 | 1.81 | 1.77 | 1.14 | 0.91 | 0.94 | 0.78 |
| 1¼″ | 1.378-1.381 | 3.88 | 2.19 | 2.11 | 1.50 | 0.98 | 1.20 | 1.22 |
| 1½″ | 1.628-1.632 | 4.45 | 2.42 | 2.44 | 1.61 | 1.09 | 1.42 | 1.82 |
| 2″ | 2.128-2.132 | 5.32 | 2.81 | 2.95 | 1.48 | 1.34 | 1.77 | 2.62 |
| 2½″ | 2.628-2.632 | 6.50 | 3.48 | 3.74 | 1.81 | 1.50 | 2.24 | 4.72 |
| 3″ | 3.128-3.132 | 7.28 | 3.91 | 4.41 | 2.05 | 1.69 | 2.56 | 7.00 |
| 4″ | 4.128-4.133 | 9.37 | 4.51 | 5.51 | 2.40 | 2.17 | 3.58 | 11.72 |
Material Construction
| # | Part | Material | Specification |
|---|---|---|---|
| 1 | Body | Lead-Free Brass | ASTM B927 C27450 |
| 2 | Retaining Disc | Lead-Free Brass | ASTM B927 C27450 |
| 3 | Stem (2½″–4″ = Stainless Steel) | Lead-Free Brass / Stainless Steel | ASTM B927 C27450 |
| 4 | Bolt | Lead-Free Brass | ASTM B927 C27450 |
| 5 | Gasket | PTFE | PTFE |
| 6 | Cap | Lead-Free Brass | ASTM B927 C27450 |
Warning (California Prop 65): This product can expose you to chemicals including lead, known to the State of California to cause cancer and reproductive harm. For more information, visit www.P65Warnings.ca.gov.
