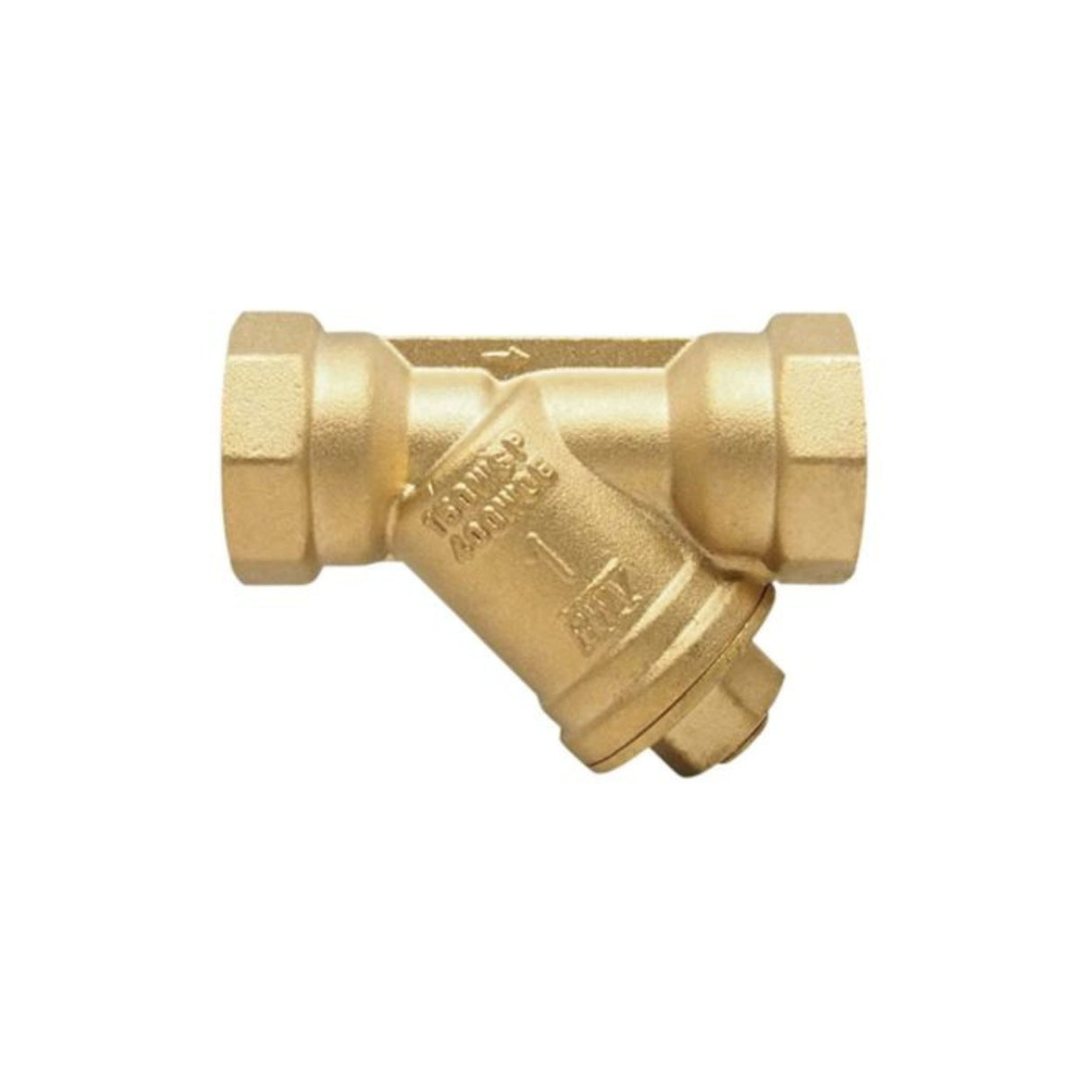

Lead-Free Y-Strainer | 380AB Series | FNPT × FNPT Threaded Ends
Lead-Free Y-Strainer | 380AB Series | FNPT × FNPT Threaded Ends
Red-White Valve’s 380AB Lead-Free Brass Y-Strainer protects plumbing and mechanical systems from sediment and debris while maintaining optimal flow efficiency. Built from ASTM B927 C27450 lead-free brass and equipped with a stainless steel 20 mesh (AISI 304) screen, this durable strainer is ideal for potable water and light industrial systems where reliability and compliance are critical.
Designed for easy maintenance and long service life, the 380AB features FNPT × FNPT threaded connections per ASME B1.20.1-NPT, a threaded cap with clean-out plug for quick servicing, and pressure ratings up to 400 PSI WOG. Certified to AB1953 and NSF/ANSI 61 & 372, this Eco-Valve model ensures safe performance in drinking water systems.
Key Features
- Certified Lead-Free Brass — Meets AB1953 and NSF/ANSI 61 & 372 standards for potable water compliance.
- High-Pressure Rated — 150# WSP and 400# WOG pressure ratings for superior durability and system protection.
- Stainless Steel Screen — 304 SS 20 mesh filter traps particulates and resists corrosion.
- Easy Maintenance — Threaded cap includes a clean-out plug for fast service and debris removal.
- FNPT Threaded Ends — Machined to ASME B1.20.1-NPT for secure, leak-free installation.
- Eco-Valve Certified — Environmentally responsible, C US certified lead-free brass design.
Pressure / Temperature Rating
| Pressure / Temperature Rating | |
|---|---|
| 150 PSI WSP | 400 PSI WOG |
Dimension, Cv, Weight
| Size | Φ | A [in] | H [in] | P [in] | C [in] | Cv | Wt. [lb] |
|---|---|---|---|---|---|---|---|
| ½″ | ½–14 NPT | 2.76 | 2.13 | 0.59 | 0.61 | 2.89 | 0.42 |
| ¾″ | ¾–14 NPT | 3.23 | 2.36 | 0.67 | 0.75 | 6.46 | 0.62 |
| 1″ | 1–11.5 NPT | 3.64 | 2.64 | 0.79 | 0.75 | 10.18 | 0.90 |
| 1¼″ | 1¼–11.5 NPT | 4.11 | 3.50 | 1.26 | 0.77 | 24.59 | 1.26 |
| 1½″ | 1½–11.5 NPT | 4.69 | 4.13 | 1.57 | 0.77 | 35.22 | 1.86 |
| 2″ | 2–11.5 NPT | 5.28 | 4.74 | 1.97 | 0.83 | 55.28 | 2.54 |
Material Construction
| # | Part | Material | Specification |
|---|---|---|---|
| 1 | Body | Lead-Free Brass | ASTM B927 C27450 |
| 2 | Screen | Stainless Steel | AISI 304 S30400 (20 mesh) |
| 3 | Gasket | PTFE | PTFE |
| 4 | Cap | Lead-Free Brass | ASTM B927 C27450 |
| 5 | Plug | Lead-Free Brass | ASTM B927 C27450 |
Warning (California Prop 65): This product can expose you to chemicals including lead, known to the State of California to cause cancer, birth defects, or reproductive harm. For more information, visit www.P65Warnings.ca.gov.
