RED-WHITE VALVE CORP.  |  SKU: 30078443  |  MPN: 1516PAB 20MM 1/2

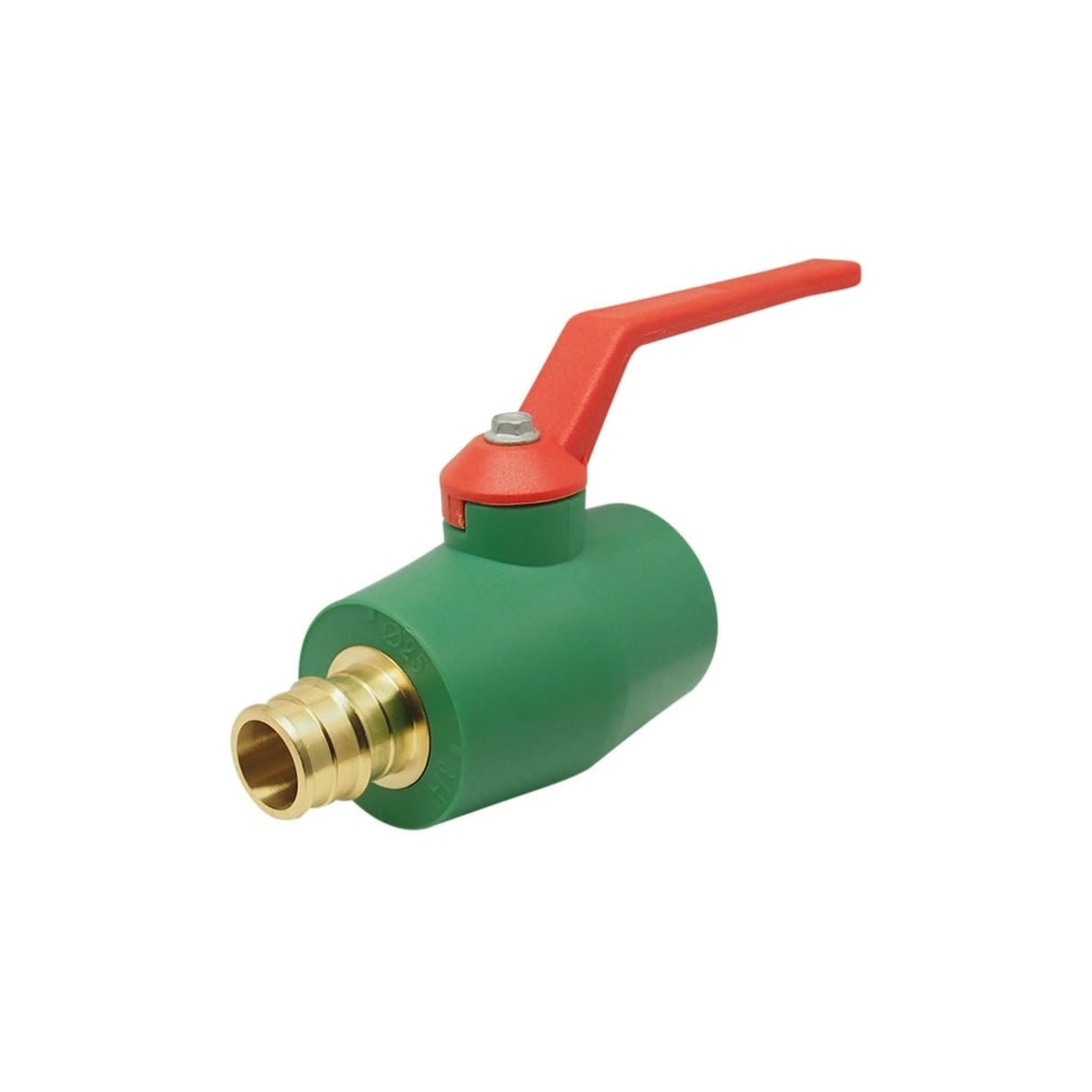

PP-RCT Ball Valve | 1516PAB Series | Polyfusion x Barb | Lead-Free Brass | 300 PSI WOG

$58.40
  • Certified Lead-Free Construction — Built with DZR lead-free brass and PP-RCT body; meets NSF/ANSI 61 & 372, AB1953, NSF-14, and IAPMO Z1157.
  • Polyfusion x Barb Connection — Combines PP-RCT socket fusion and ASTM F1960 PEX barb for reliable cross-system transitions.
  • High Pressure & Temperature Rating — Rated for 300 PSI (WOG) and 185°F (85°C) for potable and hydronic applications.
  • Durable and Corrosion Resistant — Chrome-plated brass ball, PTFE seat, and NBR O-rings ensure long service life.
  • Green Body for Identification — Color-coded PP-RCT body; compliant with Buy American Act and suitable for LEED projects.
📄 Download Spec Sheet

PP-RCT Ball Valve | 1516PAB Series | Polyfusion x Barb | Lead-Free Brass | 300 PSI WOG

The 1516PAB Series Ball Valve provides a high-performance, code-compliant solution for potable water and hydronic systems. Built with a PP-RCT (Polypropylene Random Copolymer Type 4) body and a DZR lead-free brass ASTM F1960 barb end, this valve seamlessly transitions between polyfusion systems and PEX tubing.

Rated for 300 PSI (WOG) and up to 185°F (85°C), the 1516PAB ensures long-term reliability and leak-free performance in demanding residential, commercial, and institutional systems. The chrome-plated DZR brass ball, PTFE seats, and blow-out proof stem enhance durability and compliance with NSF and AB1953 standards.

Key Features & Benefits

  • 300 PSI WOG Rating — Built for high-pressure systems and compatible with both hot and cold water service.
  • Polyfusion x Barb End — Combines PP-RCT socket fusion on one end with ASTM F1960 PEX barb on the other for versatile installation.
  • Lead-Free DZR Brass Components — Meets NSF/ANSI 61 & 372, AB1953, NSF-14, and IAPMO Z1157 for potable applications.
  • Durable Design — Chrome-plated brass ball, PTFE seats, NBR O-ring packing, and nylon handle ensure chemical and corrosion resistance.
  • Green Lead-Free Identification — Easily distinguishable PP-RCT body; compatible with extension stem and wing handle accessories.

Pressure & Temperature Ratings

Pressure Rating Temperature Range
300 PSI (WOG) Up to 185°F (85°C)

Dimensions & Weight

Size DN A [in] B [in] C [in] D [in] E [in] H [in] L [in] P [in] Weight [lb]
½″ 20 2.66 0.76 0.57 1.81 0.71 2.36 4.02 0.59 0.32
¾″ 25 2.78 0.96 0.63 2.01 0.95 2.36 4.02 0.59 0.49
1″ 32 3.13 1.23 0.71 2.28 1.81 2.48 4.02 0.79 0.61

Material Construction

# Component Material Specification
1 PEX End DZR Lead-Free Brass ASTM B927 C27453
2 Cartridge Body Polypropylene PP-RCT
3 Lever Handle Nylon PA6-50G
4 O-Ring NBR NSF Approved
5 Stem DZR Lead-Free Brass ASTM B927 C27453
6 Seat PTFE PTFE
7 Ball DZR Lead-Free Brass / Cr Plated ASTM B927 C27453
8 Cartridge Cap Polypropylene PP-RCT
9 Screw Steel / Geomet® Plated Steel
10 Body Polypropylene PP-RCT

Applications: Potable water, PEX to PP-RCT transitions, hydronic heating systems, and LEED or BAA-compliant installations.
