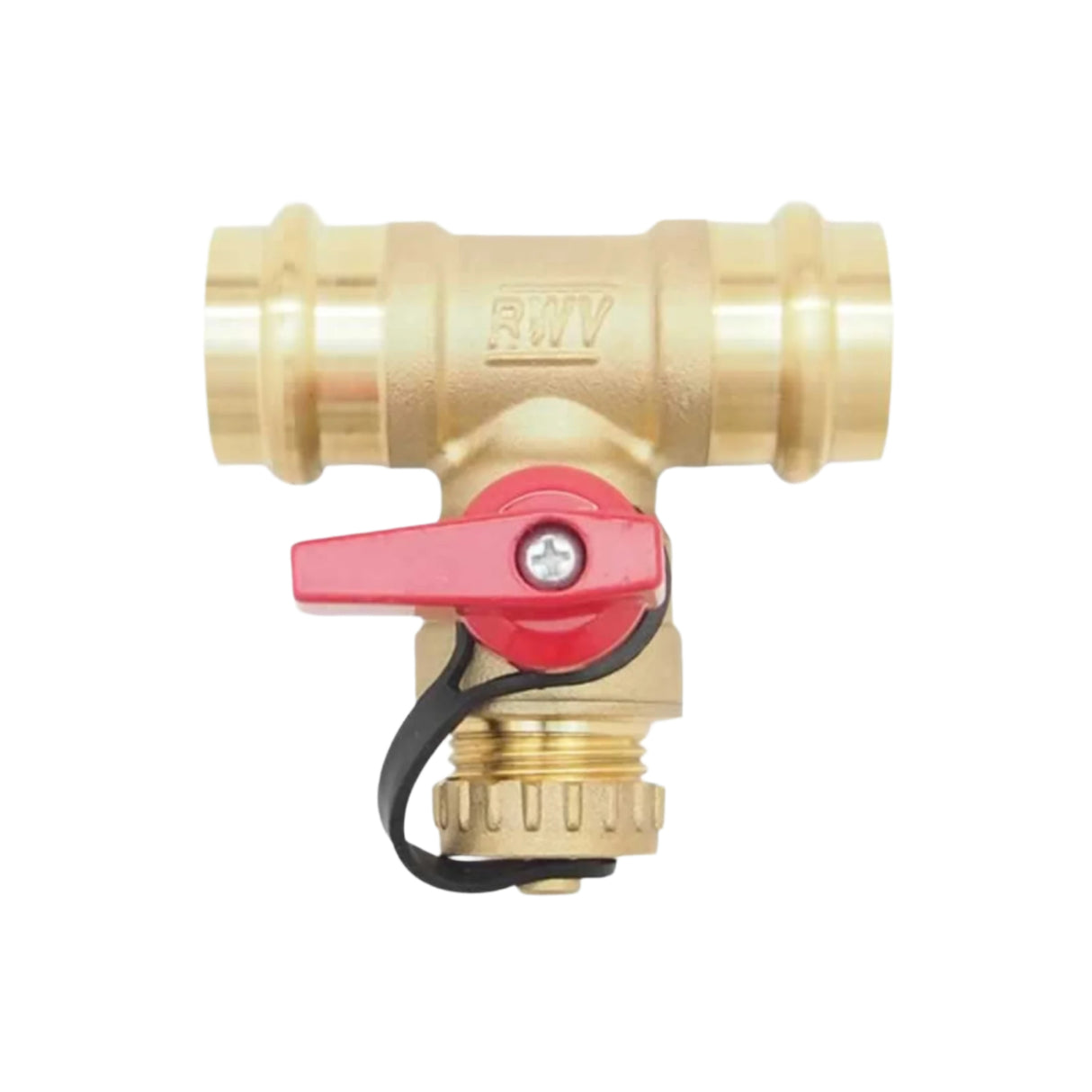

Hydronic Tee Drain Valve | 8040P Series | Press × Press | Full Port | DZR Lead-Free Brass
$19.70
Unit price
/
Select Option
Hydronic Tee Drain Valve | 8040P Series | Press × Press | Full Port | DZR Lead-Free Brass
8040P Series Hydronic Tee Drain Valves combine heavy-duty performance with the convenience of press-fit installation. Constructed from DZR (Dezincification-Resistant) lead-free brass and certified under NSF/ANSI/CAN 61 & 372, this valve ensures safe potable water use and long-term corrosion resistance. Its Press × Press configuration offers quick, flame-free installation while maintaining a full-port flow path for optimal performance.
Key Features & Benefits
- Lead-Free DZR Brass Construction — Manufactured from ASTM B927 C27453 material; compliant with NSF/ANSI/CAN 61 & 372 for potable water systems.
- Press × Press Connection — Compatible with most press tools for efficient, leak-free installation without soldering.
- Full-Port Design — Allows unrestricted flow to reduce pressure loss in hydronic and plumbing systems.
- High-Flow Hose Drain — Integrated drain port with cap and chain for fast, clean system drainage.
- Chrome-Plated Brass Ball — Ensures smooth operation and extended wear resistance.
- Adjustable Packing Gland — Provides easy maintenance and long-term leak protection.
- Virgin PTFE Seats — Deliver tight sealing and chemical resistance under all service conditions.
- Pressure Rating — 250 PSI WOG for standard systems, 600 PSI optional for high-pressure applications.
- Temperature Range — Operates reliably from 15 °F to 260 °F (use antifreeze or anti-boiling fluids beyond limits).
Dimension, Weight
| Size | A [in] | B [in] | C [in] | D [in] | φE [in] | φP [in] | φS [in] | φF | Weight [lb] |
|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 2.63 | 2.37 | 1.58 | 0.87 | 0.64 | 0.50 | 0.50 | 3/4"-11.5NH | 0.50 |
| 3/4" | 3.28 | 2.69 | 1.72 | 0.98 | 0.89 | 0.73 | 0.73 | 3/4"-11.5NH | 0.71 |
| 1" | 3.41 | 2.82 | 1.72 | 1.06 | 1.14 | 0.98 | 0.73 | 3/4"-11.5NH | 0.78 |
| 1-1/4" | 3.73 | 2.95 | 1.72 | 1.06 | 1.39 | 1.23 | 0.73 | 3/4"-11.5NH | 0.90 |
Material Construction
| # | Part | Material | Specification |
|---|---|---|---|
| 1 | Body | DZR Lead-Free Brass | ASTM B927 C27453 |
| 2 | Fixed End | DZR Lead-Free Brass | ASTM B927 C27453 |
| 3 | Ball | Chrome-Plated Lead-Free Brass | ASTM B927 C27450 |
| 4 | Seat | PTFE | - |
| 5 | Drain Cap Gasket | EPDM Peroxide-Cured | NSF Approved |
| 6 | Drain Cap | Brass | ASTM B283 C37700 |
| 7 | Tie | Rubber | - |
| 8 | Screw | Steel, Zinc Plated | ASTM A36 |
| 9 | Handle | Aluminum | ASTM B85 |
| 10 | Stem | DZR Brass | ASTM B927 C27453 |
| 11 | Packing Nut | Brass | ASTM B124 C37700 |
| 12 | Packing Ring | PTFE | - |
| 13 | O-Ring | EPDM Peroxide 70SH | NSF Approved |
Warning (California Prop 65): This product can expose you to chemicals including lead, known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
