Solder Gate Valve | 207AB Series | Lead Free Brass
Solder Gate Valve | 207AB Series | Lead Free Brass

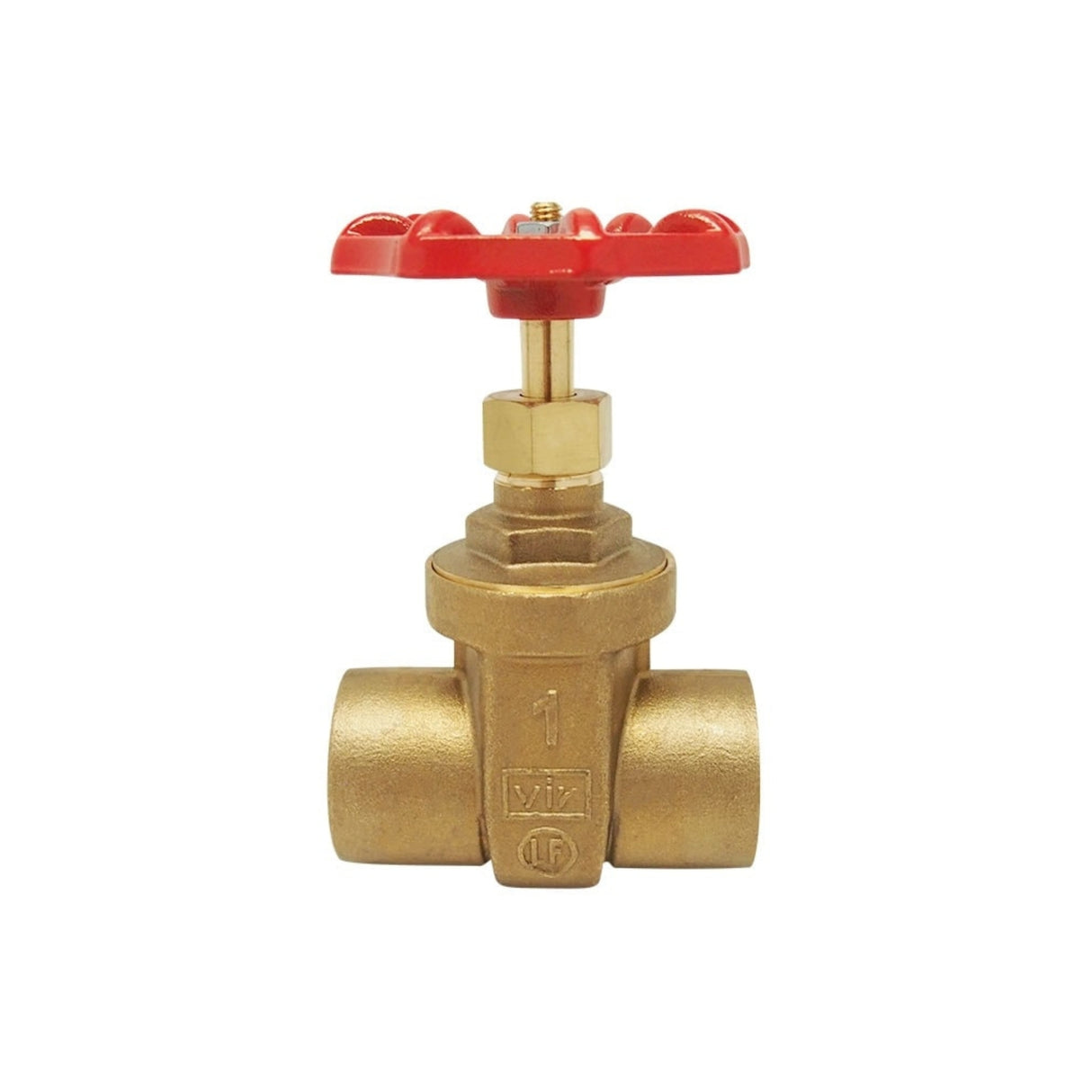

Red-White Valve’s 207AB Lead-Free Solder Gate Valve provides reliable shut-off and flow control in potable water and hydronic systems. Designed with lead-free brass construction and solder x solder connections (ASME B16.22), this valve delivers a secure, leak-free fit that meets today’s strict drinking water standards, including AB1953 and NSF/ANSI 61 & 372 certification.
Its solid wedge disc and non-rising stem design make it ideal for compact installations, while the screw-in bonnet allows easy servicing. With a graphite WRAS-approved packing ring and lead-free brass body, wedge, and stem, the 207AB ensures consistent, long-term performance in both residential and commercial applications.
Key Features
- Certified Lead-Free — Complies with AB1953, NSF/ANSI 61 & 372, and BAA standards for government and potable water projects.
- Solder x Solder Ends — Built to ASME B16.22 specifications for reliable, leak-free connections.
- Durable Brass Body — Constructed from ASTM B927 C28500 lead-free brass for corrosion resistance and longevity.
- Non-Rising Stem Design — Perfect for tight installations where vertical clearance is limited.
- Solid Wedge Disc — Ensures smooth operation and positive shut-off under high pressure.
- Screw-In Bonnet — Allows for easy disassembly and maintenance.
- Pressure Rating — 200 PSI from 32°F–160°F; 125 PSI max at 344°F.
- Graphite Packing Ring — WRAS approved for reliable sealing under variable conditions.
Pressure & Temperature Ratings
| Pressure / Temperature Rating | |
|---|---|
| 200 PSI from 32°F to 160°F | 125 PSI max at 344°F |
Dimension, Cv, Weight
| Size | Ø [in] | A [in] | C [in] | H [in] | L [in] | P [in] | Cv | Wt. [lb] |
|---|---|---|---|---|---|---|---|---|
| ½″ | 0.627–0.631 | 1.85 | 0.50 | 2.79 | 2.36 | 0.51 | 12.4 | 0.44 |
| ¾″ | 0.877–0.881 | 2.44 | 0.75 | 3.17 | 2.36 | 0.74 | 27.7 | 0.74 |
| 1″ | 1.128–1.131 | 2.83 | 0.91 | 3.93 | 2.75 | 1.00 | 56.8 | 1.08 |
| 1¼″ | 1.378–1.381 | 3.07 | 0.97 | 4.21 | 3.15 | 1.25 | 90.7 | 1.60 |
| 1½″ | 1.628–1.632 | 3.38 | 1.09 | 4.82 | 3.15 | 1.50 | 137 | 2.24 |
| 2″ | 2.128–2.132 | 4.01 | 1.34 | 6.27 | 3.75 | 2.00 | 304 | 4.18 |
Material Construction
| Part | Material | Specification |
|---|---|---|
| 1. Body | Lead-Free Brass | ASTM B927 C28500 |
| 2. Wedge | Lead-Free Brass | ASTM B927 C28500 |
| 3. Bonnet | Lead-Free Brass | ASTM B927 C28500 |
| 4. Stem | Lead-Free Brass | ASTM B927 C28500 |
| 5. Ring | Lead-Free Brass | ASTM B927 C28500 |
| 6. Packing Ring | Graphite | WRAS Approved |
| 7. Packing Nut | Brass | ASTM B124 C37700 |
| 8. Handwheel | Aluminum | B85 |
| 9. Disk | Aluminum | B85 |
| 10. Nut | Steel / Zinc Plated | A36 |
