PVC Elbows | Schedule 40 | 22.5° Sweep | Bell End
$2,004.26
Unit price
/
Select Option
PVC Elbows | Schedule 40 | 22.5° Sweep | Bell End — Product Overview

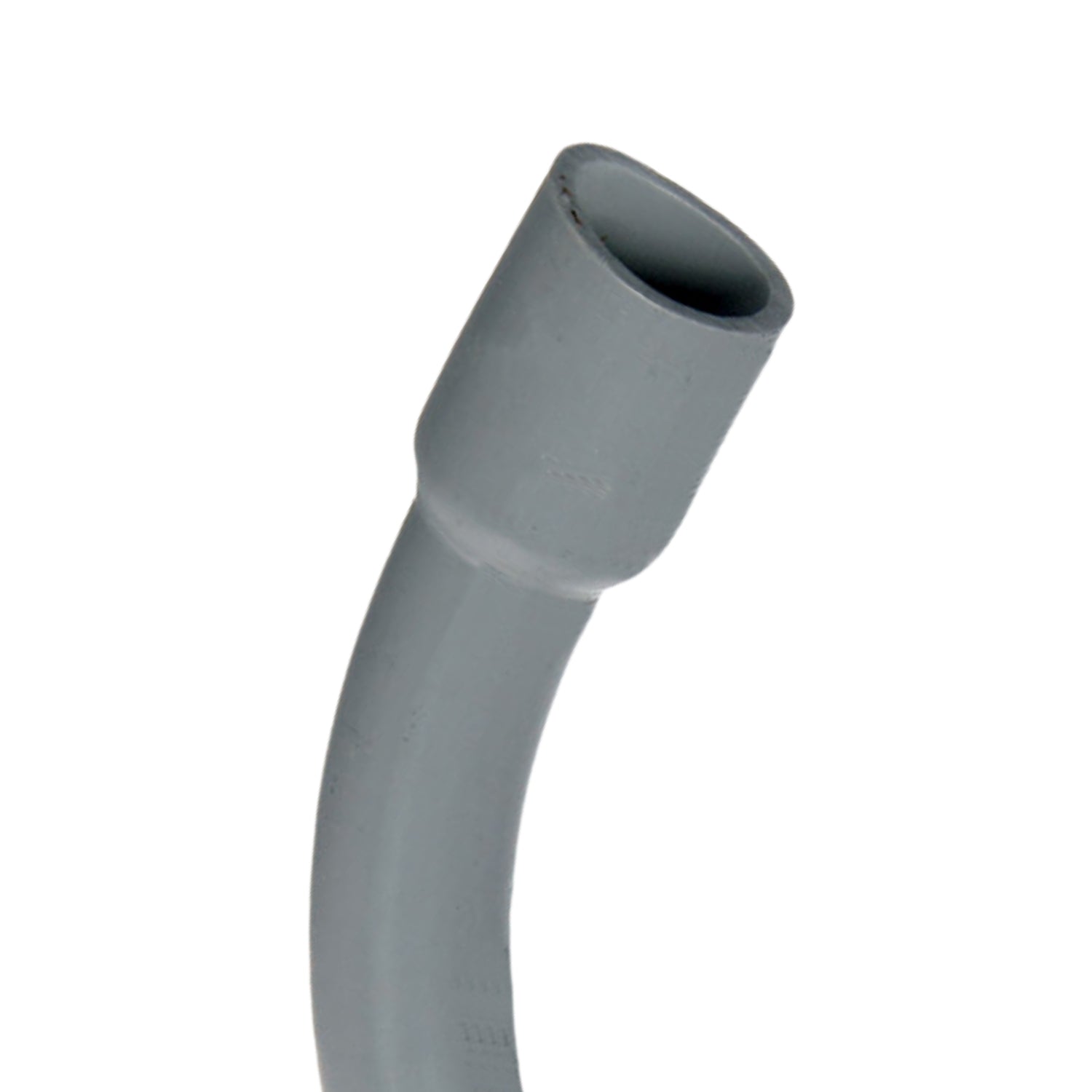

Schedule 40 PVC 22.5° Sweep Elbows provide smooth directional changes for underground, encased, or exposed conduit systems. Manufactured from rigid PVC with integral bell ends, these elbows are designed for durability, easy installation, and compliance with NEC 352, NEMA TC-2, and UL 651 standards.
Key Features:
- 22.5° Sweep Angle: Provides gradual directional transitions for easier wire pulling
- Schedule 40 PVC Construction: Impact-resistant and durable for residential, commercial, and utility-grade installations
- Bell-End Connection: Integral belled ends allow fast, secure solvent-weld joining
- Code Compliant: UL 651 listed and NEC/NEMA certified for safe electrical use
- Wide Range of Sizes: From 1-1/2" through 6" trade sizes in multiple sweep radii
- View All SCH 40 Conduit Products: Schedule 40 Products >
Available Configurations & Part Numbers
| Trade Size | Degree x Radius | Part Number |
|---|---|---|
| 1-1/2" | 22.5° x 36" | UA5FHB |
| 2" | 22.5° x 18" | UA5CJB |
| 2" | 22.5° x 24" | UA5DJB |
| 2" | 22.5° x 30" | UA5EJB |
| 2" | 22.5° x 36" | UA5FJB |
| 2" | 22.5° x 48" | UA5HJB |
| 2" | 22.5° x Standard Radius | UA5AJB |
| 2-1/2" | 22.5° x 24" | UA5DKB |
| 3" | 22.5° x 18" | UA5CLB |
| 3" | 22.5° x 24" | UA5DLB |
| 3" | 22.5° x 30" | UA5ELB |
| 3" | 22.5° x 36" | UA5FLB |
| 3" | 22.5° x Standard Radius | UA5ALB |
| 4" | 22.5° x 24" | UA5DNB |
| 4" | 22.5° x 30" | UA5ENB |
| 4" | 22.5° x 36" | UA5FNB |
| 4" | 22.5° x 48" | UA5HNB |
| 4" | 22.5° x 144" | UA5RNB |
| 4" | 22.5° x 150" | UA5SNB |
| 4" | 22.5° x 180" | UA5TNB |
| 4" | 22.5° x 240" | UA5UNB |
| 4" | 22.5° x 300" | UA5VNB |
| 4" | 22.5° x Standard Radius | UA5ANB |
| 5" | 22.5° x 24" | UA5DPB |
| 5" | 22.5° x 30" | UA5EPB |
| 5" | 22.5° x 36" | UA5FPB |
| 5" | 22.5° x 48" | UA5HPB |
| 5" | 22.5° x 144" | UA5RPB |
| 5" | 22.5° x 240" | UA5UPB |
| 5" | 22.5° x 300" | UA5VPB |
| 5" | 22.5° x Standard Radius | UA5APB |
| 6" | 22.5° x 36" | UA5FRB |
| 6" | 22.5° x 48" | UA5HRB |
| 6" | 22.5° x 144" | UA5RRB |
| 6" | 22.5° x 180" | UA5TRB |
| 6" | 22.5° x Standard Radius | UA5ARB |
Tags: Schedule 40 PVC Elbow, 22.5 Degree Sweep, Bell End, Prime Conduit Elbows, UL 651, NEMA TC-2, Power Conduit Elbow, Telecom Conduit Fitting
