PRIME CONDUIT | SKU: 30065613 | MPN: 49405-010

PVC Rigid Conduit | Schedule 80 | 10' and 20' Lengths | Bell End

$0.81

per ft

Heavy-Duty Construction – Extra heavy-wall EPC-80 PVC for impact resistance in demanding environments
NEC & UL Compliant – ETL listed to UL 651 and approved for use in areas subject to physical damage

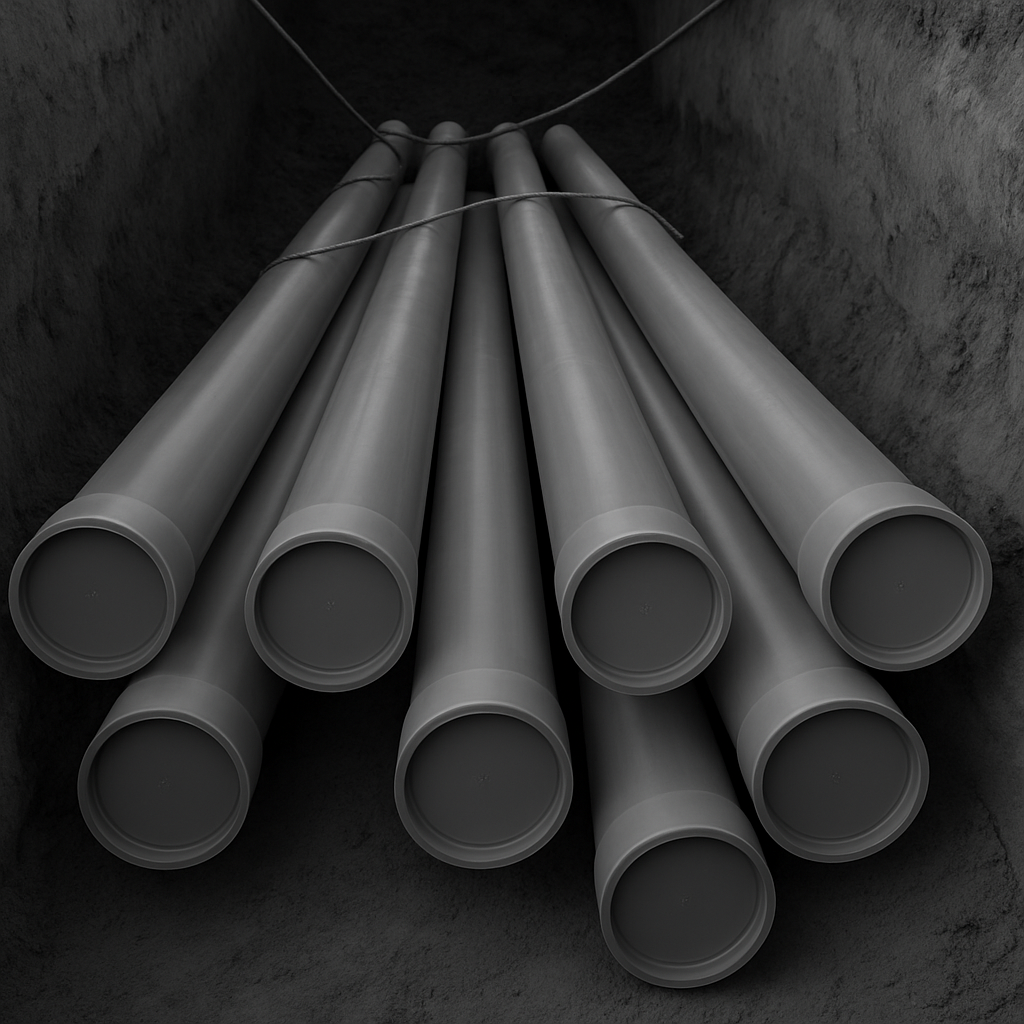

Sunlight & Weather Resistant – Suitable for underground, encased, or exposed installations

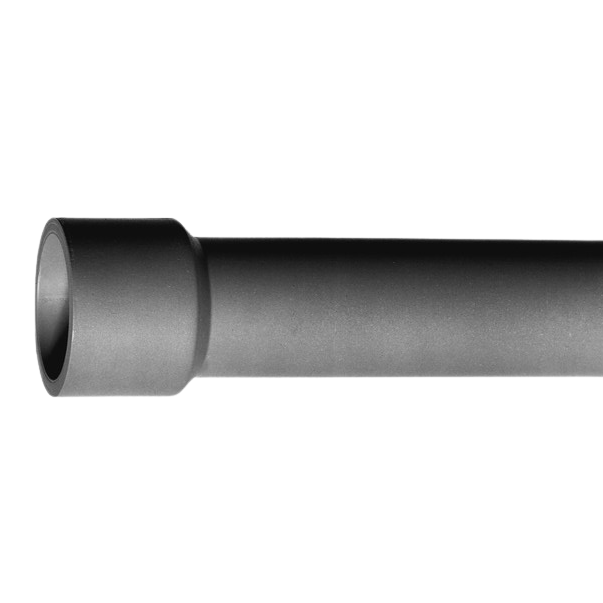

Bell-End Design – Each 10' or 20' stick includes an integral bell for fast, secure joining
View All Schedule 80 Products Here > LINK

PVC Rigid Conduit | Schedule 80 | 10' and 20' Lengths | Bell End — Product Overview

Prime Conduit’s Schedule 80 PVC Rigid Nonmetallic Conduit is engineered for high-strength underground, industrial, and utility installations. Designed with a thick, extra heavy wall and listed to UL 651, this conduit meets NEC 352.12(C) for use in areas subject to physical damage, such as exposed runs or high-traffic job sites.

Key Features:

Schedule 80 Wall Thickness: Extra heavy-duty EPC for superior impact and crush resistance
UL 651 & NEC Compliant: Certified for use in demanding code-based commercial installations
Integral Bell End: Factory-formed bell simplifies solvent-welded joining — no couplers required
Sunlight & Heat Resistant: Rated for 90°C conductors in wet or dry conditions
Standard 10' and 20' Lengths: Ships in efficient unitized bundle crates for jobsite or warehouse use

Available Sizes:

1/2" – 6" | 10' & 20' stick lengths

Product Dimensions & Specifications

Part Number 10'	Part Number 20'	Trade Size	Std. Bundle Qty 10'	Std. Bundle Qty 20'	Weight per 100 ft (lbs)	O.D. (Avg.)	Wall (Min.)
49405-010	49405-020	1/2"	6,000'	12,000'	21	0.840	0.147
49407-010	49407-020	3/4"	4,400'	8,000'	30	1.050	0.154
49408-010	49408-020	1"	3,600'	7,200'	44	1.315	0.179
49409-010	49409-020	1-1/4"	3,300'	6,600'	60	1.660	0.191
49410-010	49410-020	1-1/2"	2,250'	3,600'	72	1.900	0.200
49411-010	49411-020	2"	1,400'	2,800'	101	2.375	0.218
49412-010	49412-020	2-1/2"	930'	1,880'	154	2.875	0.276
49413-010	49413-020	3"	880'	1,760'	210	3.500	0.300
49415-010	49415-020	4"	570'	1,140'	308	4.500	0.337
49416-010	–	5"	380'	–	428	5.563	0.375
49417-010	49417-020	6"	260'	520'	588	6.625	0.432

Additional Information:

Compatible with Schedule 80 RNC solvent-weld fittings
Ships in unitized bundles for easier unloading and inventory
USA-manufactured for consistent performance and compliance

Technical Document:

Download Prime Conduit Schedule 40 & 80 Brochure

Tags: Schedule 80 PVC Conduit, Rigid Electrical Duct, Prime Conduit, Extra Heavy Wall, Solvent Weld Bell End, UL 651, NEMA TC-2
