Molded Electrofusion Reducer | IPS | SDR 11 & SDR 17

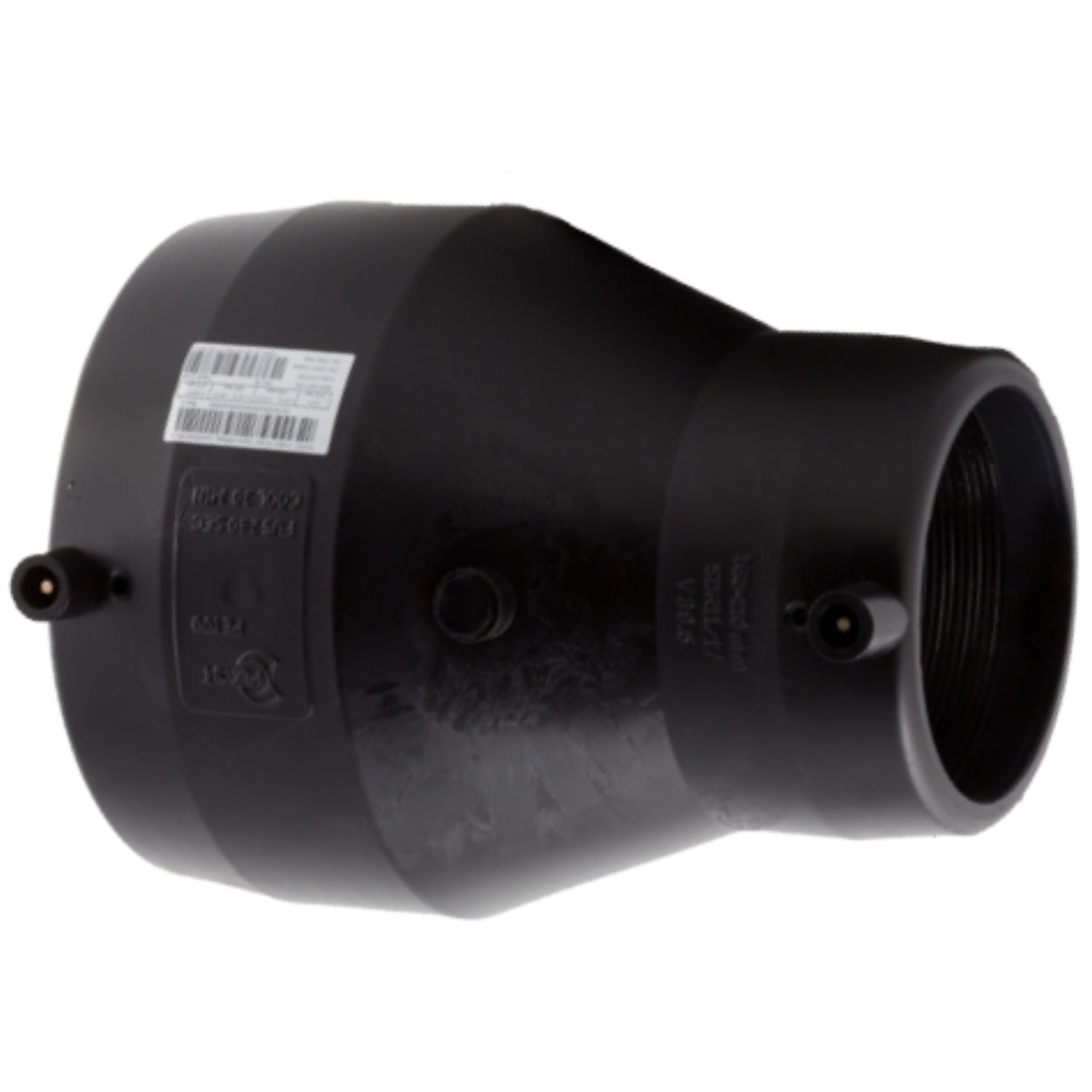

Electrofusion Reducer | IPS | SDR 11 & SDR 17 — Product Overview
Integrity Fusion Electrofusion Reducers provide reliable, pressure-rated transitions between different IPS pipe sizes. Manufactured from high-quality PE4710/PE100 bi-modal resin, these injection-molded fittings ensure consistent fusion performance, wide fusion zones, predictable melt flow, and excellent cold-weather reliability.
This reducer line is compatible with SDR 11 and SDR 17 IPS piping systems and is commonly used in municipal potable water, natural gas distribution, industrial facilities, mining operations, and geothermal applications.
Key Features & Benefits
- PE4710/PE100 Resin – High strength, long service life, superior pressure capability
- Injection-Molded Body – Uniform fusion characteristics and dimensional accuracy
- No Pre-Heating Required – Reliable fusion performance even in colder temperatures
- Wide Fusion Zones – Strong, consistent joint formation
- Wide Cold Zones – Increased pipe stab-depth flexibility
- Melt-Flow Indicators – Visual verification during fusion
- Standards Compliance – Meets ASTM F1055, AWWA C901/C906, NSF/ANSI 61 & FM 1613
Applications
- Municipal water and wastewater systems
- Natural gas distribution
- Industrial fluid conveyance
- Mining operations
- Geothermal piping systems

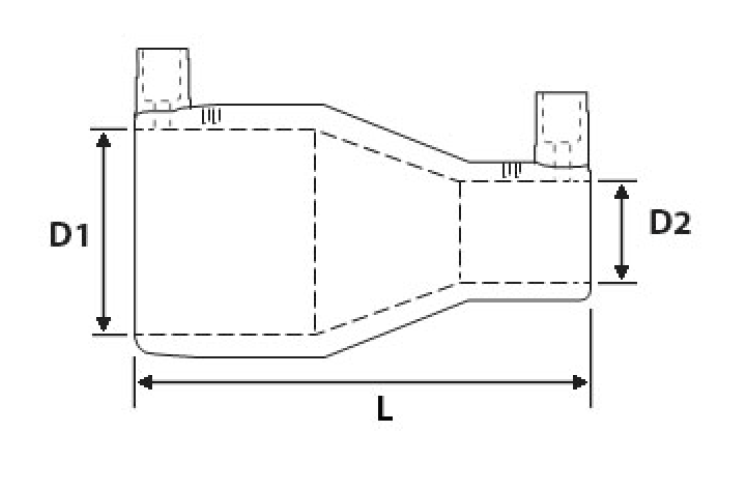

Dimensions, Weights & Item Codes
All reducers below are pressure-rated for water (200/125 PSI) and gas (100 PSI MAOP @ 73.4°F). Data sourced from the Integrity Fusion specification sheet.
| Nominal Size | D1 (in.) | L (in.) | D2 (in.) | Weight (lbs.) | Item Code | FM Class |
|---|---|---|---|---|---|---|
| 1-1/4" IPS × 1" IPS | 1.660 | 4.60 | 1.315 | 0.20 | 200551 | FM 150 |
| 2" IPS × 3/4" IPS | 2.375 | 5.60 | 1.050 | 0.50 | 200553 | FM 150 |
| 2" IPS × 1" IPS | 2.375 | 5.70 | 1.315 | 0.50 | 200511 | FM 150 |
| 2" IPS × 1-1/4" IPS | 2.375 | 5.60 | 1.660 | 0.50 | 200555 | FM 150 |
| 2" IPS × 1-1/2" IPS | 2.375 | 5.00 | 1.900 | 0.60 | 200556 | FM 150 |
| 3" IPS × 2" IPS | 3.500 | 6.40 | 2.375 | 0.80 | 200557 | FM 150 |
| 4" IPS × 2" IPS | 4.500 | 8.80 | 2.375 | 1.60 | 200558 | FM 150 |
| 4" IPS × 3" IPS | 4.500 | 7.70 | 3.500 | 1.80 | 200559 | FM 150 |
Refer to the downloadable spec sheet for complete product details.
