Gulfstream 250 Micro Fiber Blower Standard Kit | 48V Power Supply (US)
$18,314.60
Unit price
/
Select Option
Each

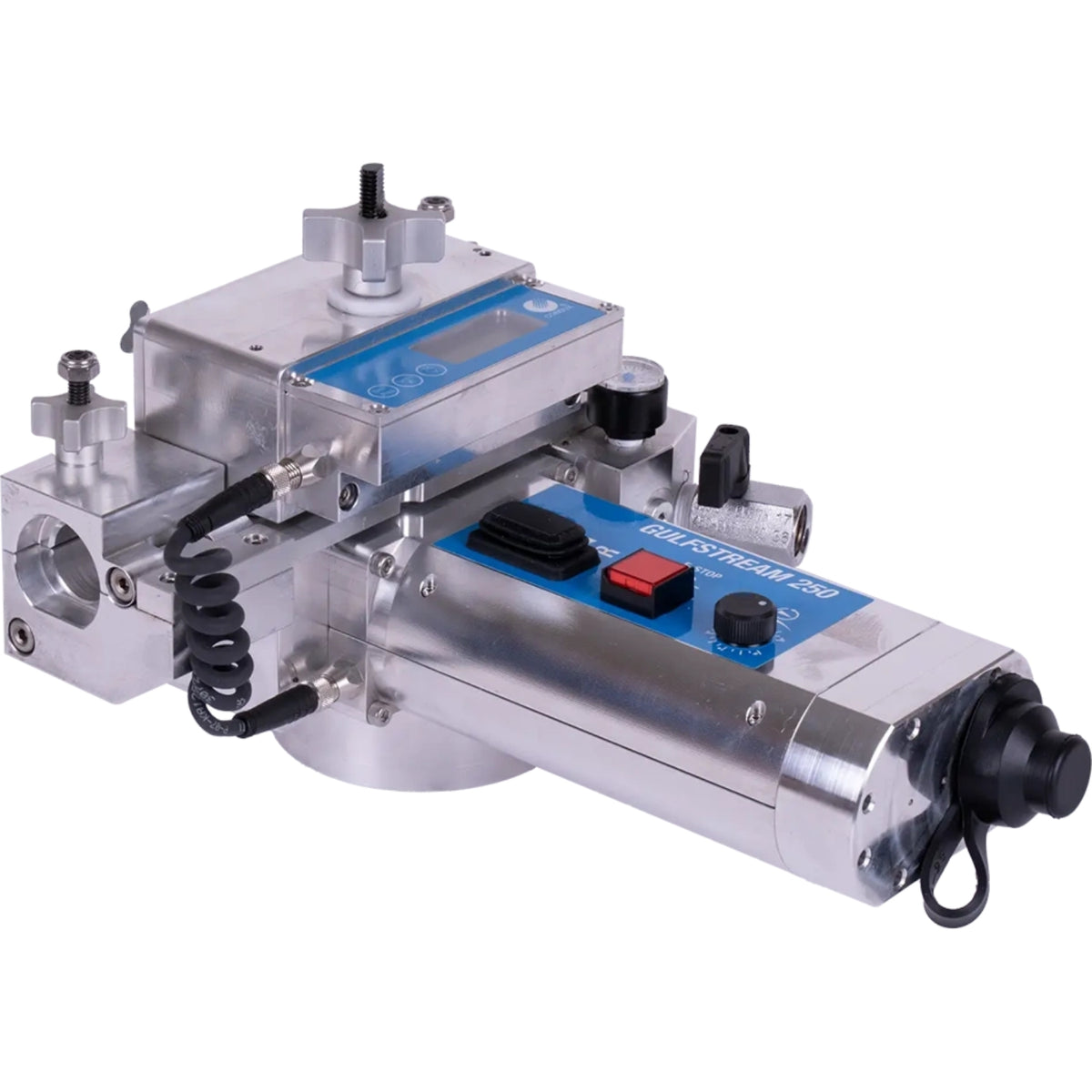

Gulfstream 250 Micro Fiber Blower Standard Kit | 48V Power Supply (US) — Product Overview
The Gulfstream 250 Micro Fiber Blower Standard Kit is designed for installing fiber optic cable into microduct applications. The system supports fiber cable sizes from 2.5 mm to 8 mm and microduct sizes from 5 mm to 18 mm.
The kit includes a 48V AC Power Supply and standard components required for Gulfstream 250 operation. The blower uses a wheel drive system with adjustable controls for fiber installation applications.
Key Features
- Fiber Cable Compatibility: Supports fiber cable sizes from 2.5 mm to 8 mm.
- Microduct Range: Supports microduct sizes from 5 mm to 18 mm.
- Power System: Includes 48V AC Power Supply.
- Drive System: Wheel drive system with maximum push force of 30 lbs (133 N).
- Control Features: Includes forward/reverse switch, speed control, emergency stop button, screen monitoring, and push force adjustment.
Ordering Information
| Part Number | Description |
|---|---|
| 08783805-50 | Gulfstream 250 Micro Fiber Blower Standard Kit (US) |
Included in Standard Kit
| Part Number | Description |
|---|---|
| 02290961 | Plastic Case |
| 02291020 | Hex Key Set |
| 08783427 | Large Groove Green Belt |
| 08783076 | Seal Kit |
| 08783519 | O-Ring Kit (qty 5) |
| 08783425 | Flat Orange Belt |
| 08783770 | Rear Insert Guide (3–4 mm) |
| 08783771 | Rear Insert Guide (4–7 mm) |
| 08783772 | Rear Insert Guide (7–10 mm) |
| 08787060 | AC Power Supply, 48V – US |
| 08782212 | Tripod Plate, 5/8” to 1/4” Adapter |
| 02290383 | Adjustable HD Tripod, 42”–65” |
| 08787066 | Quick Change Tool |
The Gulfstream 250 Micro Fiber Blower Standard Kit (US) includes the components required for fiber optic cable installation into microduct applications.
