Gulfstream 400 Fiber Optic Cable Blower | Up to 300 ft/min
$39,867.80
Unit price
/
Select Option
Each
Gulfstream 400 Fiber Optic Cable Blower | Up to 300 ft/min | Cable & Duct Pack Packages

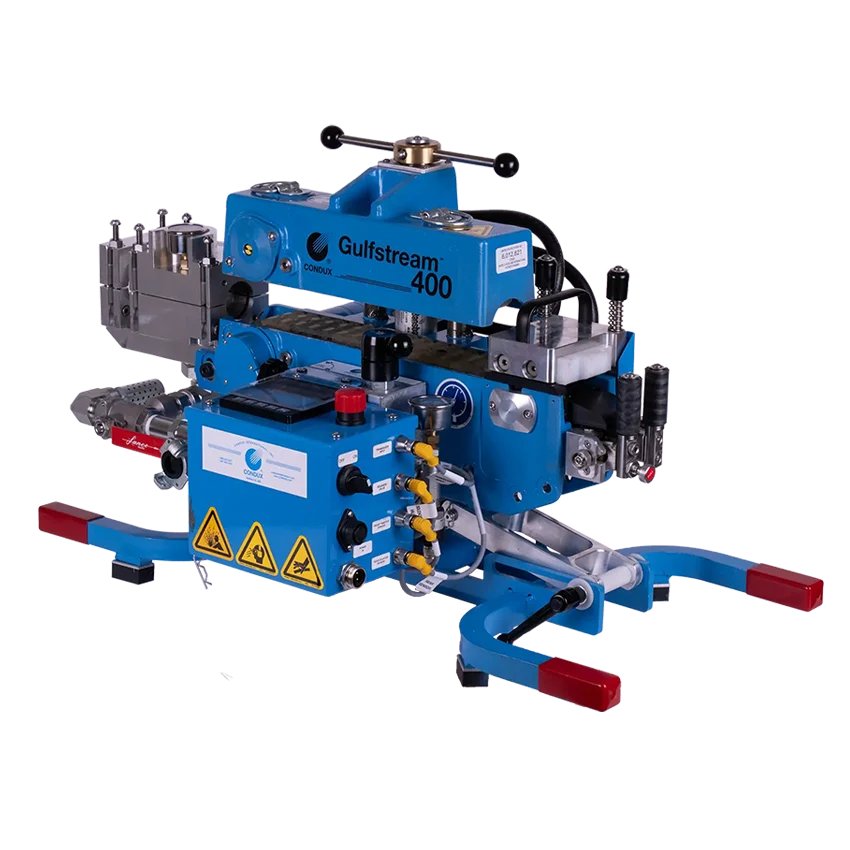

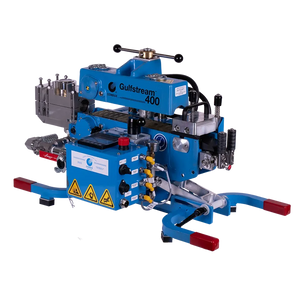

Condux Gulfstream™ 400 Fiber Optic Cable Blower is designed for the installation of fiber optic cables with diameters from 0.23" (5.8 mm) to 1.13" (28.7 mm) into micro duct 10 mm to 18 mm and traditional innerduct from ½" (13 mm) to 2" (51 mm), with metric sizes available.
The Gulfstream™ 400 installs up to 300 feet of fiber optic cable per minute (90 m/min). The unit features a longer tractor feed grip area to help reduce stress on the cable and a manual cylinder on the tractor feed for improved down-pressure control.
Performance Highlights
- High-Speed Installation – Installs fiber optic cable at speeds up to 300 ft/min (90 m/min).
- Wide Cable Compatibility – Supports fiber optic cable diameters from 0.23" (5.8 mm) to 1.13" (28.7 mm).
- Micro & Traditional Duct Support – Installs into 10 mm to 18 mm micro duct and traditional innerduct sizes from ½" to 2".
- Controlled Cable Feeding – Features a longer tractor feed grip area and manual cylinder control for improved cable handling.
Ordering Information
| Part Number | Description |
|---|---|
| 08782000 | Gulfstream 400 Fiber Optic Cable Blower |
| 08782010 | Package 1A – Includes Cable Packs #1–7 and Duct Packs #2–5 |
| 08782008 | Package 1B – Includes Cable Packs #1–7 and Duct Packs #4–6 |
Common Parts Kit (Included with All Units)
| Part Number | Description |
|---|---|
| 02290222 | Small Case |
| 08780506 | Foam Insert for Small Case |
| 02284600 | Small Divided Case |
| 08780126 | O-Ring Seal Kit |
| 08230800 | Canvas Bag |
| 08017000 | 5/8" x 600 lb Swivel (16 mm x 2,669 N) |
| 08781170 | Venturi Air Plug (Seal Disk) |
| 02288774 | Parts Label for Small Divided Case |
| 02286416 | 2-Pin Extension Cord |
| 08780424 | Capscrew Set |
| 08761248 | Power Cord Assembly w/ Lighter Plug |
| 02289620 | 3/4" Wrench |
| 02290168 | Standard & Metric Hex Key Set |
| 02283800 | 3/32" Hex Ball Driver |
| 02288787 | 2.5 mm Hex Ball-Point Driver |
| 02291090 | 9/16" Comb-Ratchet Wrench |

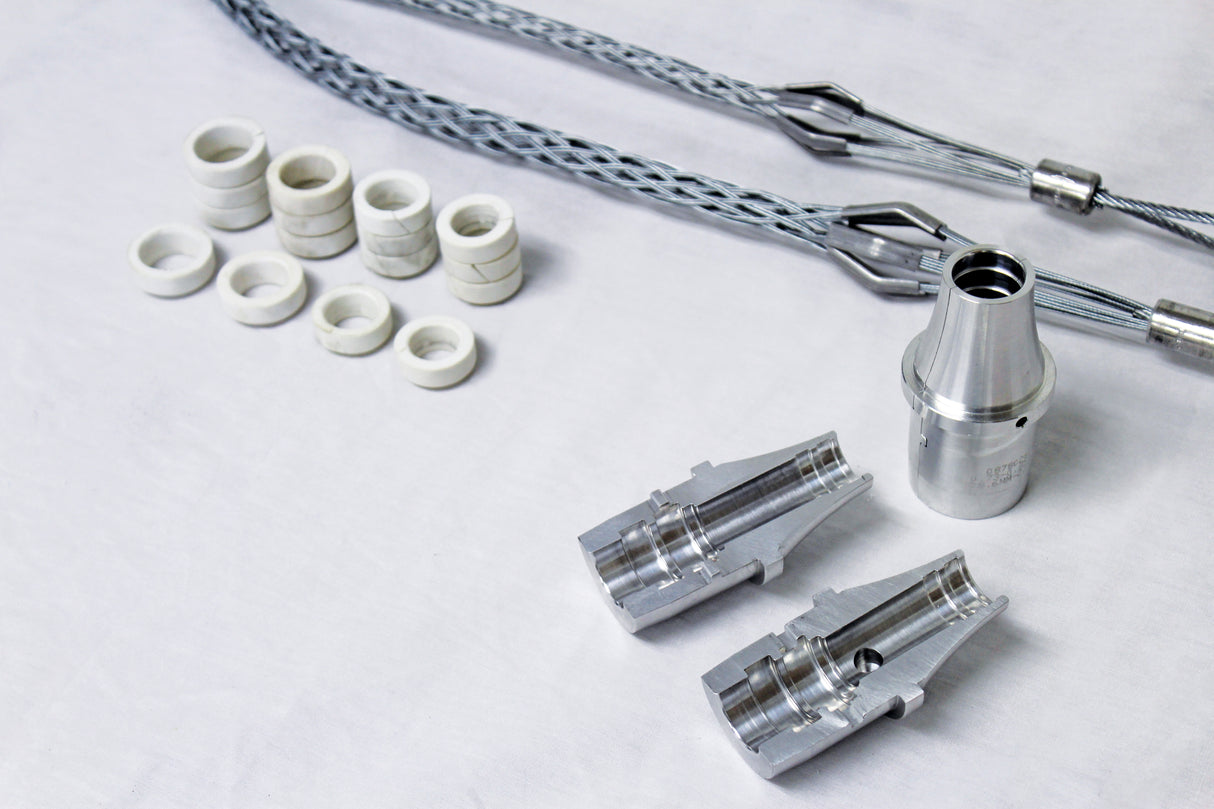

Package Cable Packs (Included in Packages 1A & 1B)
| Part Number | Description |
|---|---|
| 08780393 | Cable Pack #1 – 0.23–0.34 in (5.8–8.8 mm) |
| 08780394 | Cable Pack #2 – 0.35–0.48 in (8.9–12.2 mm) |
| 08780512 | Cable Pack #3 – 0.49–0.60 in (12.4–15.2 mm) |
| 08780395 | Cable Pack #4 – 0.61–0.73 in (15.3–18.5 mm) |
| 08780513 | Cable Pack #5 – 0.74–0.85 in (18.8–21.6 mm) |
| 08780396 | Cable Pack #6 – 0.86–0.97 in (22.0–24.5 mm) |
| 08780514 | Cable Pack #7 – 0.98–1.13 in (24.9–28.7 mm) |
Duct Packs
| Part Number | Description |
|---|---|
| 08780680 | Duct Pack #2 – ¾" SDR 11/13.5 |
| 08780386 | Duct Pack #3 – 1" SDR 11/13.5 |
| 08780392 | Duct Pack #4 – 1¼" SDR 11/13.5 |
| 08780397 | Duct Pack #5 – 1½" SDR 11/13.5 |
| 08780930 | Duct Pack #6 – 2" SDR 11/13.5 |
