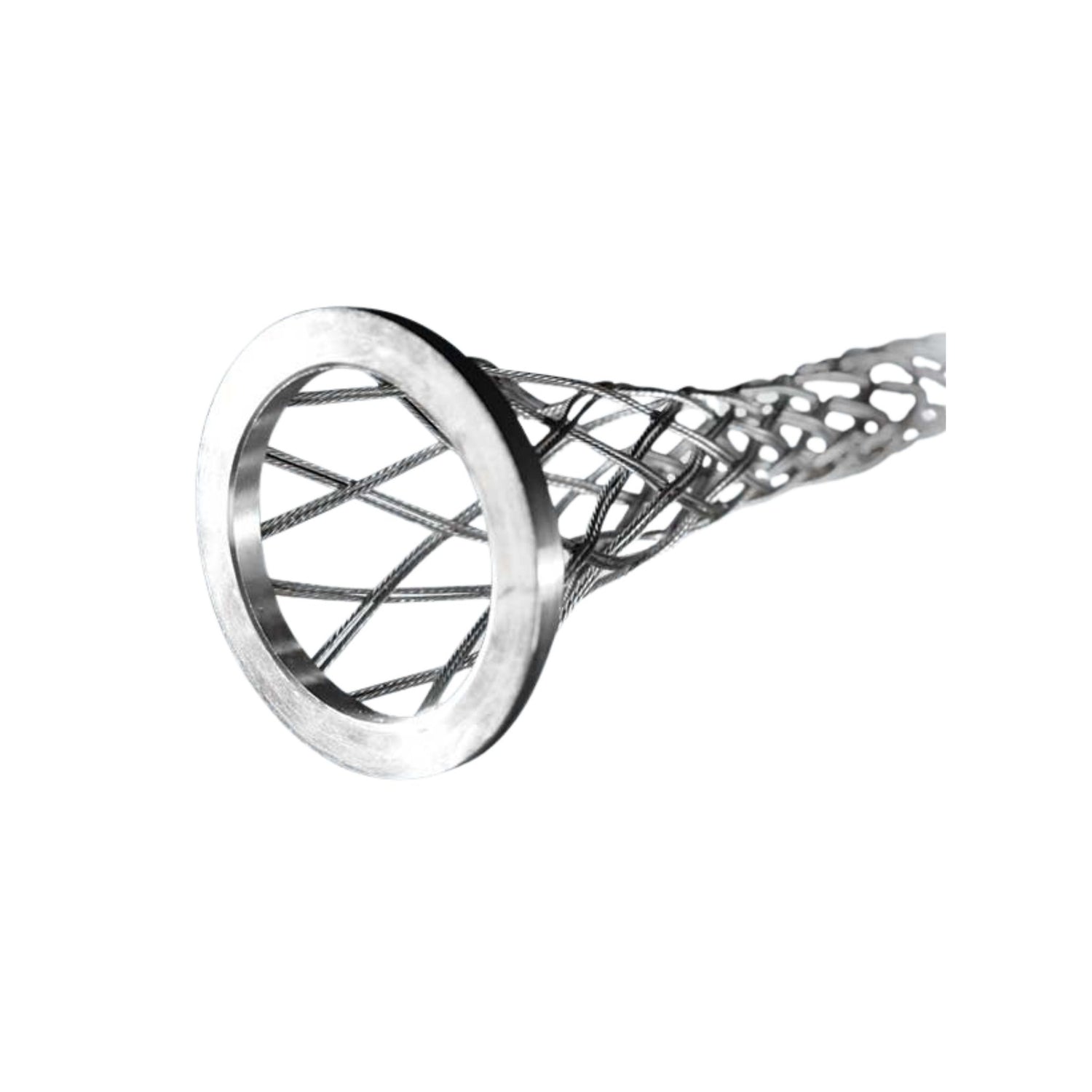

Stainless Steel Connector Box Grips – Dual Weave Support Grip
Designed for reliable cable support and strain relief, these Stainless Steel Connector Box Grips with Dual Weave construction are ideal for suspending cables at termination points. Commonly used in electrical installations, these support grips reduce mechanical strain on connections, helping extend system life and performance integrity.
Each grip is manufactured from 304-grade stainless steel, offering superior corrosion resistance and mechanical strength for both indoor and outdoor applications. The dual weave lattice design enhances flexibility while maintaining a firm hold on the cable or hose, ensuring even load distribution and minimizing stress at critical points.
These grips include an integrated ring for secure anchoring, providing a stable support structure in demanding environments such as industrial, utility, and commercial electrical systems.
Note: This information is intended for general marketing purposes. For precise technical specifications or sizing recommendations, please consult the manufacturer or request a full data sheet. Always consider the cable's break load requirements when sizing across overlapping grip ranges.
Key Features:
- Dual weave support – Flexible lattice design ensures even grip and stress relief
- 304 Stainless Steel – High-strength, corrosion-resistant construction
- Strain reduction – Helps protect electrical connections from tension and fatigue
- Ring support – Easy attachment for vertical cable suspensions
Perfect for use in applications requiring strong, corrosion-resistant cable support solutions that preserve electrical terminations.

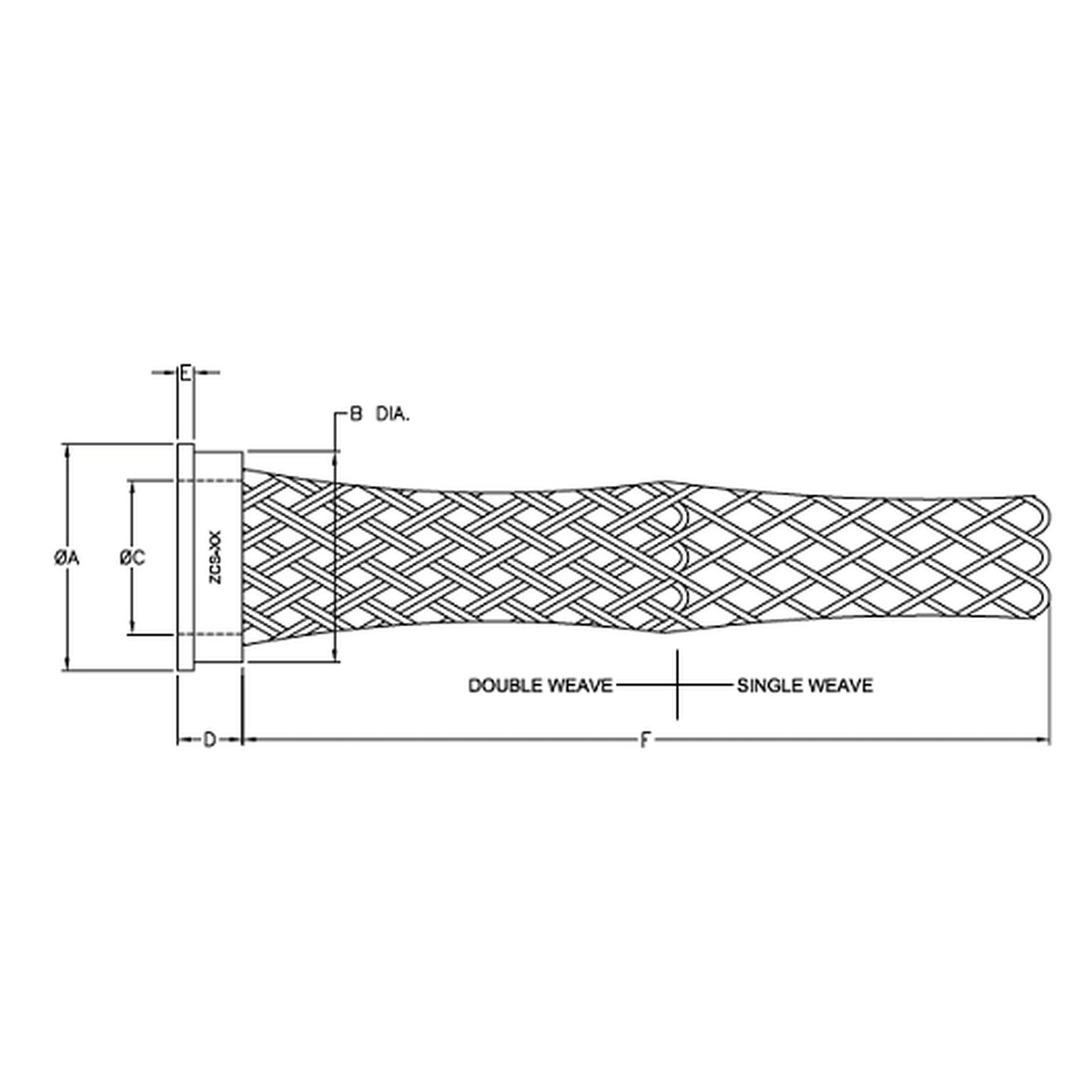

STAINLESS STEEL CONNECTOR/BOX SOCKS
| Slingco Part No. | Cable dia min (mm) | Cable dia min (in) | Cable dia max (mm) | Cable dia max (in) | Ø A (mm) | Ø A (in) | B (mm) | B (in) | C (mm) | C (in) | D (mm) | D (in) | E (mm) | E (in) | F (mm) | F (in) | Approx. Breaking Strength (kg) | Approx. Breaking Strength (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ZCS2208 | 5.1 | 0.2 | 6.4 | 0.25 | 31.8 | 1.25 | 28.4 | 1.12 | 7.9 | 0.31 | 7.1 | 0.281 | 3.2 | 0.125 | 76 | 3 | 225 | 500 |
| ZCS2209 | 7.9 | 0.31 | 9.5 | 0.375 | 31.8 | 1.25 | 28.4 | 1.12 | 11.1 | 0.437 | 7.1 | 0.281 | 3.2 | 0.125 | 102 | 4 | 340 | 750 |
| ZCS2210 | 10.4 | 0.41 | 12.7 | 0.5 | 31.8 | 1.25 | 28.4 | 1.12 | 14.3 | 0.562 | 7.1 | 0.281 | 3.2 | 0.125 | 127 | 5 | 450 | 1,000 |
| ZCS2211 | 12.7 | 0.5 | 15.9 | 0.625 | 31.8 | 1.25 | 28.4 | 1.12 | 17.4 | 0.687 | 7.1 | 0.281 | 3.2 | 0.125 | 152 | 6 | 540 | 1,200 |
| ZCS2212 | 15.5 | 0.61 | 19.1 | 0.75 | 31.8 | 1.25 | 28.4 | 1.12 | 20.6 | 0.812 | 7.1 | 0.281 | 3.2 | 0.125 | 178 | 7 | 630 | 1,400 |
| ZCS2213 | 18 | 0.71 | 22.2 | 0.875 | 31.8 | 1.25 | 28.4 | 1.12 | 24.1 | 0.948 | 7.1 | 0.281 | 3.2 | 0.125 | 203 | 8 | 450 | 1,000 |
| ZCS2214 | 19.6 | 0.77 | 23.8 | 0.937 | 31.8 | 1.25 | 28.4 | 1.12 | 24.1 | 0.948 | 7.1 | 0.281 | 3.2 | 0.125 | 203 | 8 | 360 | 800 |
| ZCS2215 | 7.9 | 0.31 | 9.5 | 0.375 | 44.5 | 1.75 | 41.1 | 1.62 | 11.1 | 0.437 | 6.4 | 0.25 | 3.2 | 0.125 | 102 | 4 | 360 | 800 |
| ZCS2216 | 10.4 | 0.41 | 12.7 | 0.5 | 44.5 | 1.75 | 41.1 | 1.62 | 14.3 | 0.562 | 6.4 | 0.25 | 3.2 | 0.125 | 127 | 5 | 450 | 1,000 |
| ZCS2217 | 12.7 | 0.5 | 15.9 | 0.625 | 44.5 | 1.75 | 41.1 | 1.62 | 17.4 | 0.687 | 6.4 | 0.25 | 3.2 | 0.125 | 152 | 6 | 540 | 1,200 |
| ZCS2218 | 15.5 | 0.61 | 19.1 | 0.75 | 44.5 | 1.75 | 41.1 | 1.62 | 20.6 | 0.812 | 6.4 | 0.25 | 3.2 | 0.125 | 178 | 7 | 630 | 1,400 |
| ZCS2219 | 18 | 0.71 | 22.2 | 0.875 | 44.5 | 1.75 | 41.1 | 1.62 | 24.1 | 0.948 | 6.4 | 0.25 | 3.2 | 0.125 | 203 | 8 | 450 | 1,000 |
| ZCS2220 | 20.8 | 0.82 | 25.4 | 1 | 44.5 | 1.75 | 41.1 | 1.62 | 27.0 | 1.062 | 7.1 | 0.281 | 3.2 | 0.125 | 215 | 8.5 | 450 | 1,000 |
| ZCS2221 | 23.2 | 0.915 | 28.6 | 1.125 | 44.5 | 1.75 | 41.1 | 1.62 | 30.1 | 1.187 | 7.1 | 0.281 | 3.2 | 0.125 | 229 | 9 | 680 | 1,500 |
| ZCS2223 | 30 | 1.18 | 35.6 | 1.4 | 44.5 | 1.75 | 41.1 | 1.62 | 33.3 | 1.312 | 7.1 | 0.281 | 3.2 | 0.125 | 265 | 10.5 | 680 | 1,500 |
| ZCS2224 | 12.7 | 0.5 | 15.9 | 0.625 | 57.2 | 2.25 | 53.8 | 2.12 | 17.4 | 0.687 | 6.4 | 0.25 | 3.2 | 0.125 | 152 | 6 | 450 | 1,000 |
| ZCS2225 | 15.5 | 0.61 | 19.1 | 0.75 | 57.2 | 2.25 | 53.8 | 2.12 | 20.6 | 0.812 | 6.4 | 0.25 | 3.2 | 0.125 | 178 | 7 | 540 | 1,200 |
| ZCS2226 | 18 | 0.71 | 22.2 | 0.875 | 57.2 | 2.25 | 53.8 | 2.12 | 24.1 | 0.948 | 6.4 | 0.25 | 3.2 | 0.125 | 203 | 8 | 630 | 1,400 |
| ZCS2227 | 23.2 | 0.915 | 28.6 | 1.125 | 57.2 | 2.25 | 53.8 | 2.12 | 30.1 | 1.187 | 9.5 | 0.375 | 3.2 | 0.125 | 229 | 9 | 680 | 1,500 |
| ZCS2228 | 31.1 | 1.22 | 38.1 | 1.5 | 57.2 | 2.25 | 53.8 | 2.12 | 33.3 | 1.312 | 9.5 | 0.375 | 3.2 | 0.125 | 279 | 11 | 815 | 1,800 |
| ZCS2229 | 36.3 | 1.43 | 44.5 | 1.75 | 57.2 | 2.25 | 53.8 | 2.12 | 46 | 1.812 | 7.1 | 0.281 | 3.2 | 0.125 | 330 | 13 | 315 | 700 |
| ZCS2230 | 30 | 1.18 | 44.2 | 1.937 | 57.2 | 2.25 | 53.8 | 2.12 | 49.5 | 1.948 | 5.6 | 0.219 | - | - | 365 | 14.5 | 155 | 350 |
| ZCS2231 | 20.8 | 0.82 | 25.4 | 1 | 69.9 | 2.75 | 66.5 | 2.62 | 27 | 1.062 | 7.1 | 0.281 | 3.2 | 0.125 | 215 | 8.5 | 450 | 1,000 |
| ZCS2232 | 25.9 | 1.02 | 31.8 | 1.25 | 69.9 | 2.75 | 66.5 | 2.62 | 33.3 | 1.312 | 7.1 | 0.281 | 3.2 | 0.125 | 254 | 10 | 680 | 1,500 |
| ZCS2233 | 31 | 1.22 | 38.1 | 1.5 | 69.9 | 2.75 | 66.5 | 2.62 | 39.7 | 1.562 | 7.1 | 0.281 | 3.2 | 0.125 | 279 | 11 | 680 | 1,500 |
| ZCS2234 | 36.3 | 1.43 | 44.5 | 1.75 | 69.9 | 2.75 | 66.5 | 2.62 | 46 | 1.812 | 7.1 | 0.281 | 3.2 | 0.125 | 330 | 13 | 815 | 1,800 |
| ZCS2235 | 41.7 | 1.64 | 50.8 | 2 | 69.9 | 2.75 | 66.5 | 2.62 | 52.4 | 2.062 | 7.1 | 0.281 | 3.2 | 0.125 | 381 | 15 | 815 | 1,800 |
| ZCS2236 | 46.7 | 1.84 | 57.2 | 2.25 | 69.9 | 2.75 | 66.5 | 2.62 | 58.7 | 2.312 | 7.1 | 0.281 | 3.2 | 0.125 | 406 | 16 | 680 | 1,500 |
| ZCS2237 | 52.4 | 2.062 | 62.7 | 2.469 | 69.9 | 2.75 | 66.5 | 2.62 | 63.2 | 2.489 | 5.6 | 0.219 | - | - | 444 | 17.5 | 680 | 1,500 |
| ZCS2238 | 34.9 | 1.375 | 44.5 | 1.75 | 82.6 | 3.25 | 79.2 | 3.12 | 46 | 1.812 | 7.1 | 0.281 | 3.2 | 0.125 | 330 | 13 | 905 | 2,000 |
| ZCS2239 | 44.5 | 1.75 | 50.8 | 2 | 82.6 | 3.25 | 79.2 | 3.12 | 52.4 | 2.062 | 7.1 | 0.281 | 3.2 | 0.125 | 381 | 15 | 905 | 2,000 |
| ZCS2240 | 46.7 | 1.84 | 57.2 | 2.25 | 82.6 | 3.25 | 79.2 | 3.12 | 58.7 | 2.312 | 7.1 | 0.281 | 3.2 | 0.125 | 406 | 16 | 905 | 2,000 |
| ZCS2241 | 54 | 2.125 | 63.5 | 2.5 | 82.6 | 3.25 | 79.2 | 3.12 | 65.1 | 2.562 | 7.1 | 0.281 | 3.2 | 0.125 | 444 | 17.5 | 905 | 2,000 |
| ZCS2242 | 63.5 | 2.5 | 73 | 2.875 | 82.6 | 3.25 | 79.2 | 3.12 | 74.1 | 2.918 | 5.6 | 0.219 | - | - | 483 | 19 | 905 | 2,000 |
