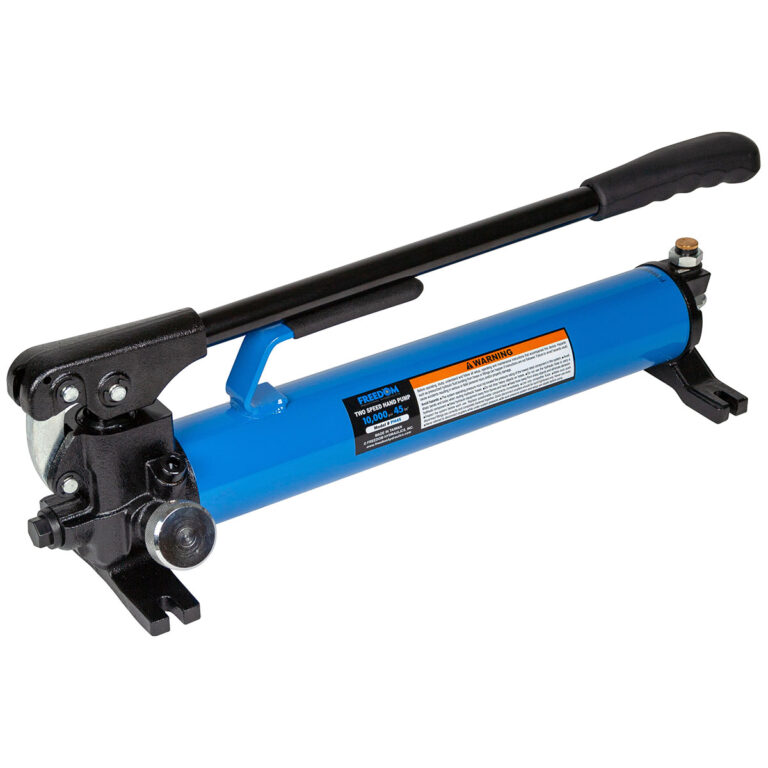

Hydraulic Hand Pump For DK200, DK300, and AHP200 Press Frames

Hydraulic Hand Pump For DK200, DK300, and AHP200 Press Frames — Product Overview

The Hydraulic Hand Pump is designed for use with the DK200, DK300, and AHP200 hydraulic press frames, offering reliable performance and durability in various applications. Constructed with high-strength materials, this pump ensures smooth and efficient operation.

Key Features:

• High-Strength Metal Reservoir: The metal reservoir is designed to prevent cracking, ensuring long-term reliability under heavy use.
• Versatile Compatibility: Specifically engineered for use with the DK200, DK300, and AHP200 hydraulic press frames.
• Safety Features: The pump includes an internal pressure relief valve that protects against overloading, ensuring safe operation.
• High Working Pressure: Capable of reaching a maximum working pressure of 10,000 psi, suitable for demanding hydraulic applications.
• Large Reservoir Capacity: The large reservoir capacity supports extended use in larger applications, reducing the need for frequent refills.
• Standard 3/8" NPT Outlet Port: Equipped with a standard 3/8" NPT outlet port for easy connection with compatible hydraulic systems.

Specifications:

• Maximum Working Pressure: 10,000 psi
• Outlet Port: 3/8" NPT
• Reservoir Material: High-Strength Metal

The Hydraulic Hand Pump provides a reliable solution for powering your DK200, DK300, and AHP200 press frames, with a focus on safety and efficiency.
