Rope-to-Rope/Grip Clevis | Stainless Steel | 10,000 lb
$380.10
Unit price
/
Select Option

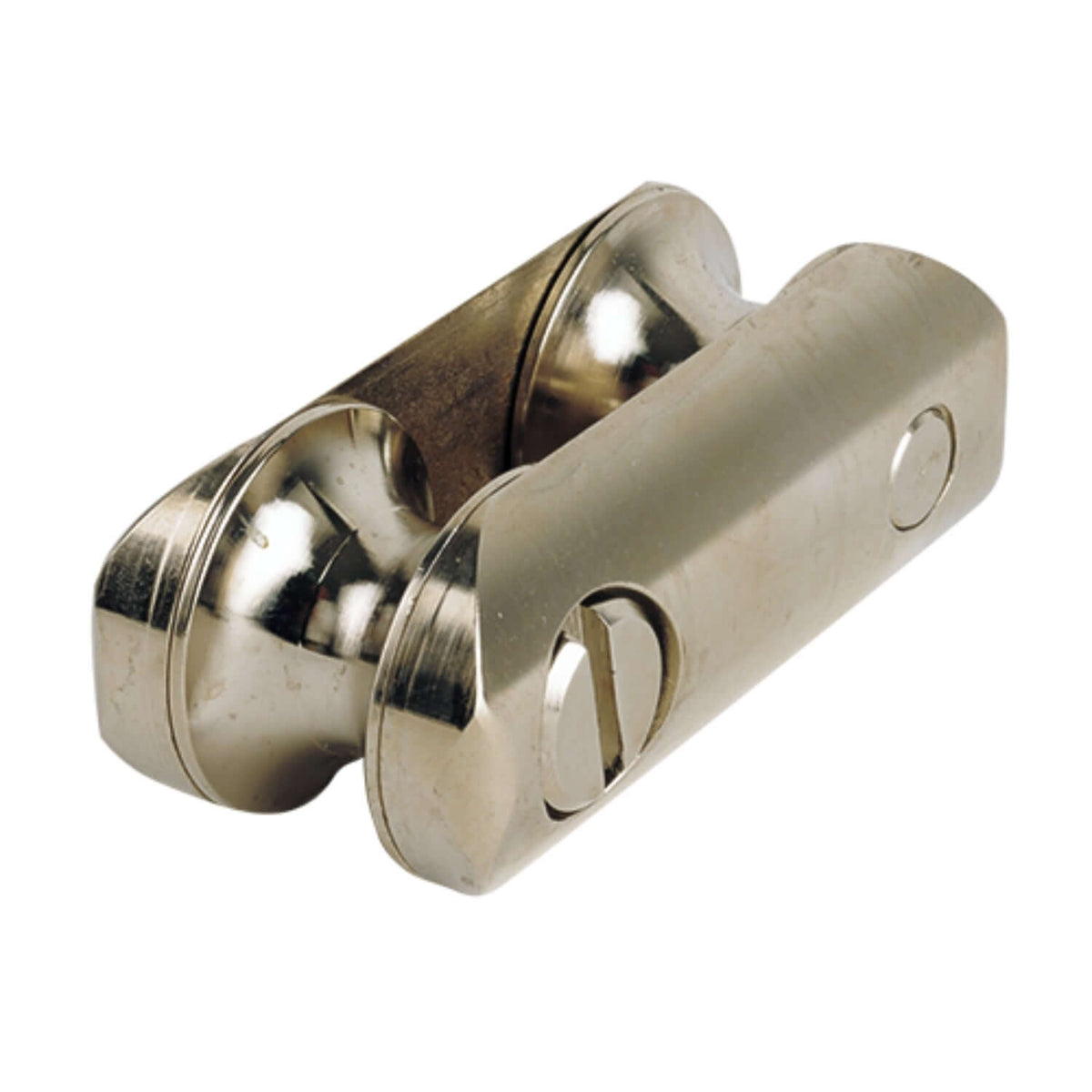

Rope-to-Rope/Grip Clevis | 10,000 lb Load Capacity | Stainless Steel
The Rope-to-Rope/Grip Clevis provides an efficient connection for several cable-pulling applications. Its stainless steel construction offers dependable performance, while combinations of sheaves and pins support multiple rope and pulling-grip connections.
Key Features
- 10,000 lb Load Capacity – Provides a rated load capacity of 10,000 lb for demanding cable-pulling applications.
- Stainless Steel Construction – Built for reliable service in professional field applications.
- Rope-to-Rope Connection – Connects 7/8″ (22 mm) diameter rope to 7/8″ (22 mm) diameter rope.
- Multiple Grip Connections – Supports rope-to-forged-eye pulling grip, forged-eye pulling grip-to-grip, and rope-to-flexible-eye pulling grip connections.
- Serviceable Design – Replacement roller and replacement pin are available separately.
Ordering Information
| Part Number | For Max Rope (in) | For Max Rope (mm) | A (in) | A (mm) | B (in) | B (mm) | C (in) | C (mm) | D (in) | D (mm) | E (in) | E (mm) | Replacement Roller PN | Replacement Pin PN | Load Capacity (lb) | Load Capacity (N) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 08091200 | 7/8 | 22 | 1.75 | 44 | 0.91 | 23 | 4.50 | 114 | 1.96 | 50 | 0.62 | 16 | 08091202 | 08091201 | 10,000 | 44,482 |
