Swivel Head Innerduct Pulling Eye| Anti-Twist Hybrid Design for Smooth Fiber & Conduit Pulling
Swivel Head Innerduct Pulling Eye| Anti-Twist Hybrid Design for Smooth Fiber & Conduit Pulling — Product Overview

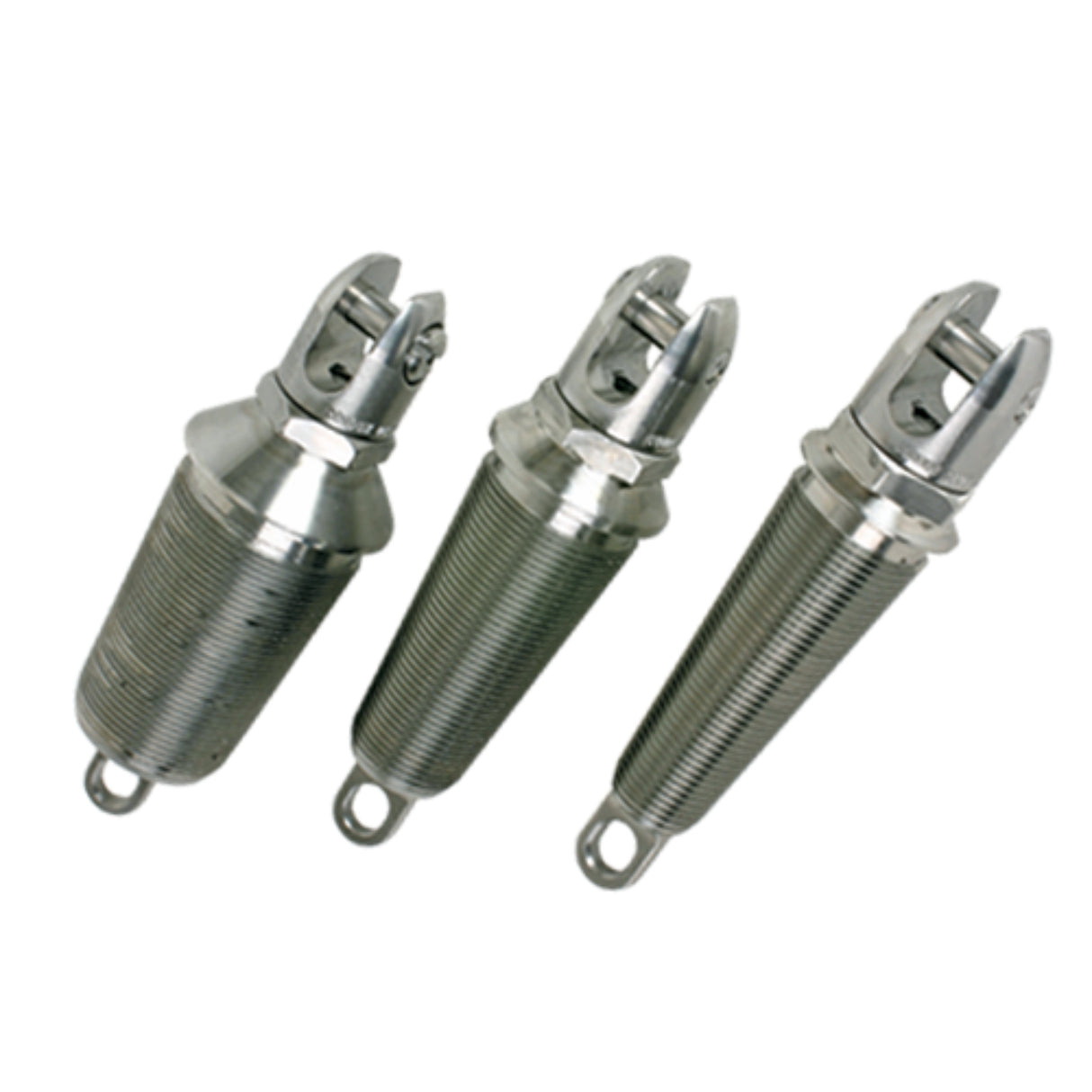

The Condux Swivel Head Innerduct Pulling Eye combines the strength of a traditional pulling eye with the flexibility of a swivel to deliver smooth, twist-free innerduct installations. By integrating swivel functionality directly into the pulling eye, this hybrid tool eliminates the need for separate components, simplifying setup and reducing connection points that can lead to binding or twisting.
Its compact, low-profile design is ideal for tight conduit bends and restricted spaces where maneuverability is key. The Swivel Head Pulling Eye offers exceptional durability and easy installation using a 1⅜″ deep socket or adjustable wrench, making it a reliable, high-performance solution for single or multiple innerduct pulls.
Key Features
- Integrated Swivel Design: Combines swivel and pulling eye into one unit to eliminate twisting and binding during installation.
- Compact & Efficient: Shorter overall length allows easier navigation through tight bends and conduit runs.
- Durable Construction: Built to handle demanding pulls with reliable performance in telecom and utility applications.
- Quick Installation: Easily installs with a 1⅜″ deep socket or adjustable wrench for fast setup.
- Universal Use: Suitable for installing single or multiple innerducts into a single conduit.
Innerduct Compatibility Chart
| Innerduct Eye Part No. | Innerduct I.D. Range | Compatible Innerduct Sizes |
|---|---|---|
| 08960712 | 1.06″–1.43″ (27–36 mm) | SDR 13.5–21 (1″–1¼″) |
| 08960715 | 1.37″–1.68″ (35–42 mm) | SDR 9–21 (1½″) |
| 08960720 | 1.93″–2.12″ (49–54 mm) | SDR 13.5–17 (2″) |
Ordering Information

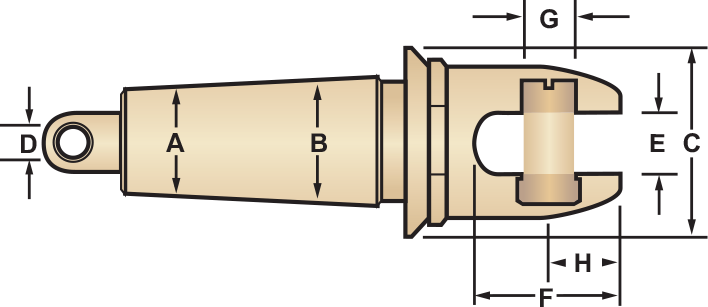

| Part Number | Nominal Size | Innerduct I.D. Range | Max O.D. | Slot Width | Slot Depth |
|---|---|---|---|---|---|
| 08960712 | 1–1¼″ | 1.06–1.43″ (27–37 mm) | 1.75″ (44 mm) | 0.56″ (14 mm) | 1.31″ (33 mm) |
| 08960715 | 1½″ | 1.37–1.68″ (35–43 mm) | 2.00″ (51 mm) | 0.56″ (14 mm) | 1.31″ (33 mm) |
| 08960720 | 2″ | 1.93–2.12″ (49–54 mm) | 2.44″ (62 mm) | 0.56″ (14 mm) | 1.31″ (33 mm) |
Replacement Clevis Pins
| Pulling Eye Part No. | Replacement Pin Part No. |
|---|---|
| 08960712 | 08081036 |
| 08960715 | 08081036 |
| 08960720 | 08081036 |
Compatible with all Condux Pulling Harnesses for seamless system integration.
