Hydronic Flanged Ball Valve | 2412 Series | FNPT x Flange with Drain | Full Port | 600 WOG
Hydronic Flanged Ball Valve | 2412 Series | FNPT x Flange with Drain | Full Port | 600 WOG

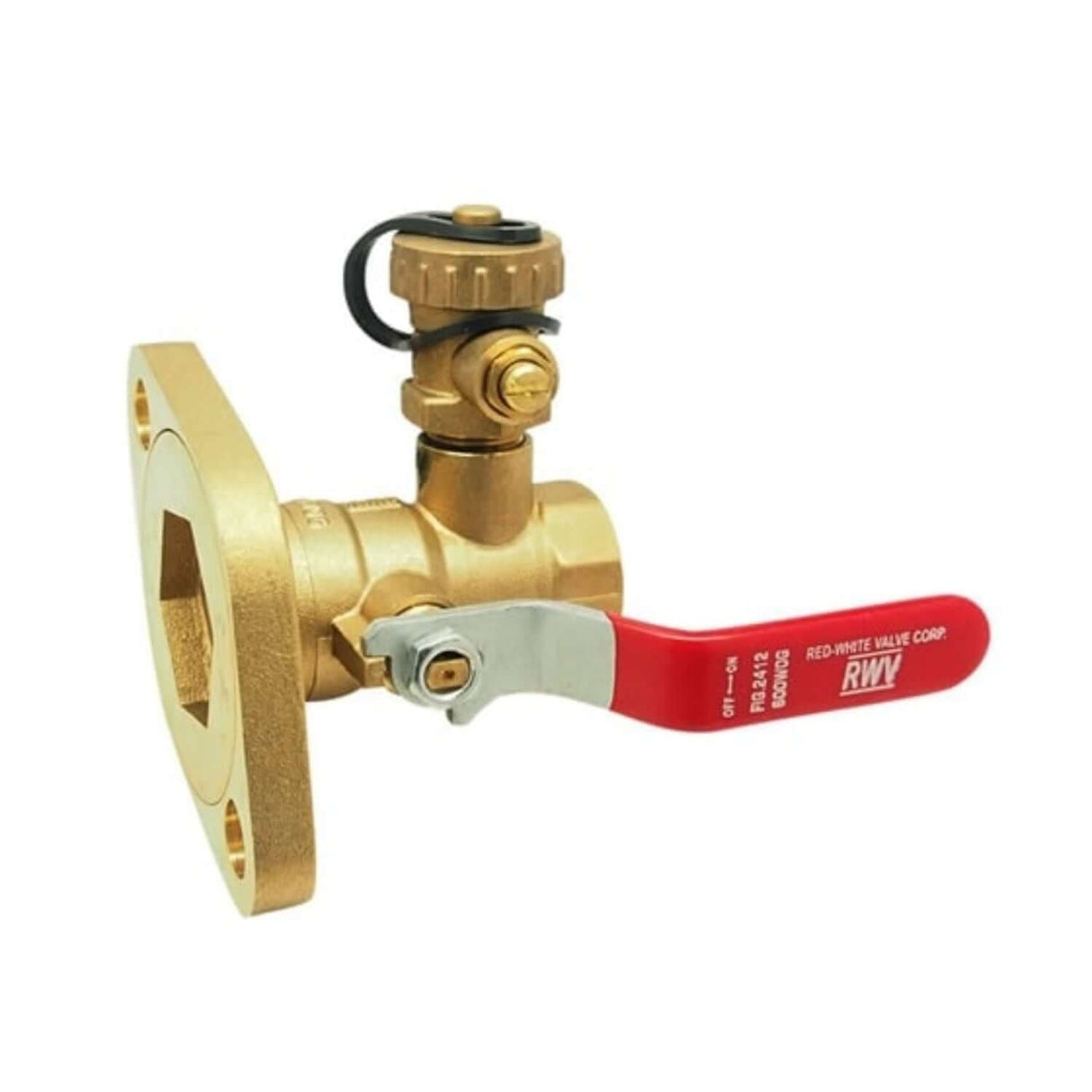

The Red-White Valve 2412 Brass Pump Flange Ball Valve with Drain is designed for maximum flow efficiency, installation flexibility, and long-term reliability. Built from ASTM B283 C37700 brass with a chrome-plated brass ball and virgin PTFE seats, this valve delivers smooth operation and dependable shut-off performance across a wide range of hydronic and plumbing applications.
Its rotating FNPT x Flange connection allows fast, accurate pump alignment during setup, while the integrated side drain valve with cap enables easy bleeding, draining, or winterization. The 2412’s 3-piece construction simplifies servicing and maintenance, and every valve includes a bolt kit and wing handle for ready-to-install convenience.
Key Features
- Full Port Flow: Maintains unrestricted flow for high-volume hydronic and pump applications.
- Rotating Flange Design: Simplifies alignment during installation and maintenance.
- Durable Brass Body: C37700 construction ensures corrosion resistance and long service life.
- Integrated Side Drain: Drain valve with cap allows easy system flushing or winterization.
- Chrome-Plated Brass Ball: Provides smooth, consistent quarter-turn operation.
- Blow-Out Proof Stem: Enhances safety and reliability under pressure.
- 3-Piece Construction: Allows internal service without complete removal from system.
- Includes Bolt Kit & Wing Handle: Ready for direct installation out of the box.
Applications
- Hydronic and HVAC pump connections
- Commercial and industrial water systems
- Pump isolation installations
- Mechanical room manifolds
- General plumbing and water distribution systems
Dimensions & Weights (inches-lbs.)
| Size | Connection | A (in) | B (in) | C (in) | H (in) | L (in) | P (in) | Weight (lb) |
|---|---|---|---|---|---|---|---|---|
| 3/4″ | 3/4 - 14 NPT | 2.97 | 2.52 | 0.63 | 2.07 | 3.58 | 0.73 | 1.80 |
| 1″ | 1 - 11.5 NPT | 3.28 | 2.63 | 0.75 | 2.36 | 4.96 | 0.94 | 2.26 |
| 1-1/4″ | 1-1/4 - 11.5 NPT | 3.79 | 2.80 | 0.77 | 2.58 | 4.96 | 1.22 | 2.62 |
| 1-1/2″ | 1-1/2 - 11.5 NPT | 4.15 | 2.93 | 0.77 | 2.87 | 5.55 | 1.46 | 3.16 |
| 2″ | 2 - 11.5 NPT | 5.03 | 3.23 | 0.79 | 3.25 | 5.55 | 1.95 | 4.74 |
Material & Specifications
| Part | Material | Specification |
|---|---|---|
| Body | Brass | ASTM B283 C37700 |
| End Piece* | Brass | ASTM B283 C37700 |
| End Piece | Brass | ASTM B124 C37700 |
| Ball | Brass / Chrome Plated | ASTM B30 C85700 |
| Seat | PTFE | PTFE |
| Flange | Brass | ASTM B283 C37700 |
| Stem | Brass | ASTM B124 C37700 |
| O-Ring | FKM | NSF Approved |
| Packing Ring | PTFE | PTFE |
| Packing Nut | Brass | ASTM B124 C37700 |
| Handle | Steel / Dacromet Plated | ASTM A36 |
| Handle Nut | Steel / Zinc Plated | ASTM A36 |
*Only for 1-1/2″ and 2″ sizes
⚠ California Proposition 65 Warning:
This product can expose you to chemicals including lead, known to the State of California to cause cancer and reproductive harm.
For more information, visit www.P65Warnings.ca.gov.
