Series 415 Side Fusion Tapping Saddle | 2" Base | DIPS

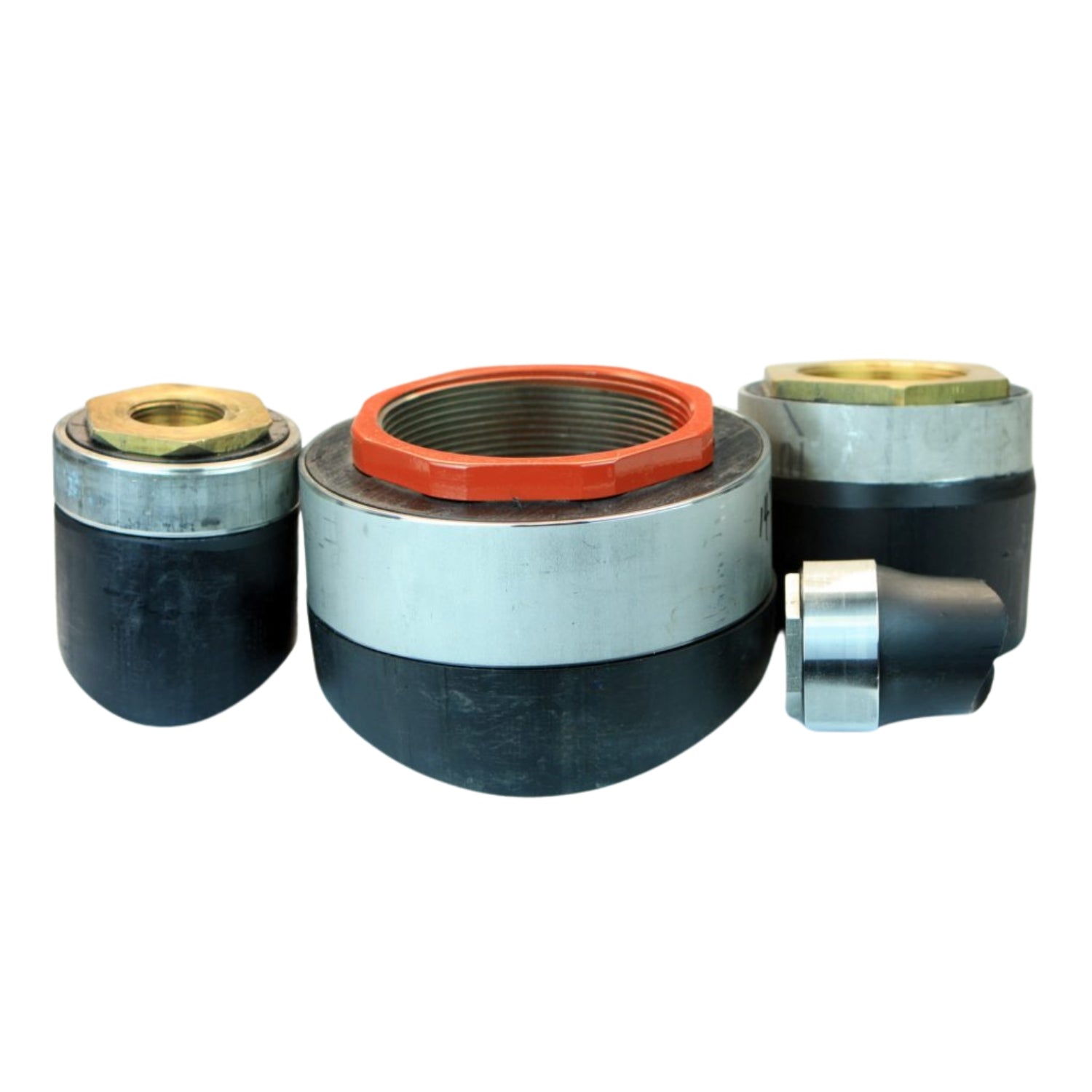

The Poly-Cam Series 415 Side Fusion Tapping Saddle offers a heavy-duty, low-profile solution for creating branch outlets on DIPS HDPE pipelines. Featuring a barbed mechanical design, this saddle is hydraulically compressed into polyethylene or copolymer pipe, forming a permanent, high-strength mechanical seal. A stainless steel compression ring further enhances pullout resistance, while the female-threaded outlet enables secure installation of valves or corporation stops.

Engineered for use with standard side fusion equipment, the 2" pivot base can be machined on-site to match the radius of the main DIPS pipe, ensuring a seamless and reliable fusion connection.

With a pressure rating of 335 PSI and a 50-year minimum design life at 73.4°F (23°C), this tapping saddle is ideal for demanding utility, municipal, and industrial HDPE installations.

Key Features & Benefits

• Threaded Branch Outlet: Female NPT or CC (AWWA) threads from 0.5" to 2"
• 2" Pivot Base Design: Machinable to fit DIPS mains from 2" to 63"
• Mechanical Barbed Seal: Provides a secure, hydraulically compressed fit
• Stainless Compression Ring: Ensures high pullout resistance
• Full Pressure Rating: Rated to 335 PSI
• Material Options: C954 Aluminum Bronze (lead-free), 304 SS, 316 SS, and PE 4710 HDPE
• Standards Compliance: ANSI/ASME B1.20.1–2013 NPT threads
• Certified Performance: Complies with ASTM D1598, D1599, AWWA C906, NSF 61 (PM13569), and ARRA
• Made in the USA

Common Applications

• Municipal Water Systems
• DIPS HDPE Service Lines
• Industrial Piping Networks
• Utility Valve Installations
• Sidewall Fusion for HDPE Systems

Available Configurations (2" BASE DIPS)
