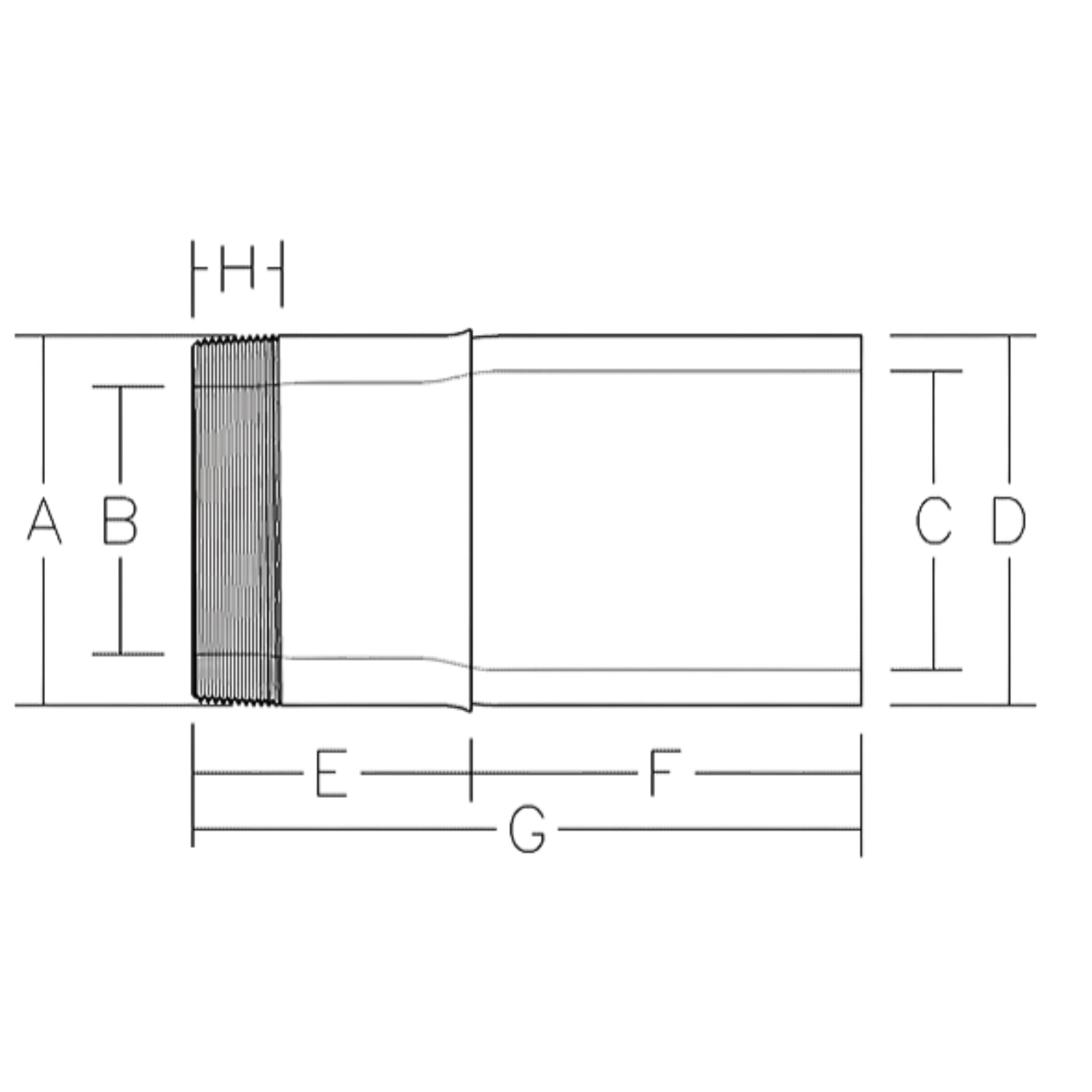

710 Series HDPE Transition Fitting | Male NPT Thread | DR 17 IPS

The Poly-Cam 710 Series Male NPT Thread Transition Fitting provides a secure, high-performance connection between HDPE conduit and NPT-threaded systems. Designed for DR 17 IPS-rated pipe, this multi-level mechanical transition features a hydraulically compressed HDPE or copolymer pipe end that creates a leak-proof seal under all pressure conditions—without the need for fusion welding at the threaded end.

Each fitting includes machined barbed ends and precision-machined NPT threads for maximum seal integrity, long-term durability, and reliable performance in demanding environments. Available in sizes from 0.5" to 12", these fittings are ideal for use in utility, municipal, industrial, and underground applications. AIS (American Iron and Steel) and BABA (Build America, Buy America) compliant options are available upon request.

✅ Key Features & Benefits

• Reliable Mechanical Transition – Barbed end design mechanically seals HDPE under pressure
• DR 17 IPS Compatible – Engineered for use with IPS-rated high-density polyethylene conduit
• Multiple Material Options – Choose from Carbon Steel (epoxy coated), 304 SS, 316 SS, or C954 Aluminum Bronze
• Standard Thread Compliance – Male NPT threads machined to ANSI/ASME B1.20.1 – 2013 standards
• NSF & FDA Certified Coatings – Epoxy-coated carbon steel meets NSF 61, AWWA C116/C213, and FDA 175.300
• Designed for Longevity – 50-year minimum design life with a 2:1 safety factor
• BABA / AIS Options – Compliant variants available for federally funded infrastructure projects

📐 Technical Specifications

• Series: 710
• Connection Type: Male NPT Thread
• Thread Sizes: 0.5" to 12" NPT
• DR Rating: DR 17 IPS
• Fusion Type: Multi-barbed mechanical seal with hydraulic compression
• Installation Method: Follow PPI butt fusion guidelines for HDPE end; strap wrench for threaded end
• Material Options:
  • Carbon Steel (A53/A106, epoxy-coated)
  • 304 / 316 Stainless Steel (ASTM A249 / A269)
  • C954 Aluminum Bronze (lead-free, AB1953 compliant)
• Certifications & Standards: ASTM D3261, D3350, F714, 1598, 1599, ANSI B1.20.1, NSF 61, ARRA Compliant
• See all Series 710 Male NPT Transition Fittings »

🔧 Common Applications

• Utility Metering & Service Connections
• Water Treatment & Transfer Systems
• Chemical and Nutrient Distribution Lines
• Industrial Process Monitoring
• Pump, Valve, and Geothermal Connections

Installation Notes:

• Use strap wrenches only—do not use pipe wrenches
• Always apply pipe joint sealant or Teflon tape
• Use two wrenches during installation to avoid over-torquing
• Pressure test system before backfilling
• Not for use in natural gas systems (does not meet ASTM D2513)

Available Configurations:

Warranty: One-year limited warranty from date of substantial completion.

Note: Be sure to select the correct size and DR classification to meet your project requirements. All fittings are precision-engineered to deliver reliable, leak-free performance in high-stakes environments.

DR Compatibility Matrix:
