Comfit Couplers | HDPE Duct Push-Fit Connectors | 230 PSI Rated | Tool-Free Air-Tight Assembly
Comfit Couplers | HDPE Duct Push-Fit Connectors | 230 PSI Rated | Tool-Free Air-Tight Assembly — Product Overview
Comfit Couplers are engineered for superior performance in fiber optic and HDPE duct systems. Designed for high-pressure, leak-proof connections, these innovative couplers provide unmatched reliability and ease of use in both new installations and repair applications. Manufactured to meet the expectations of top utilities, contractors, and duct manufacturers, Comfit Couplers deliver exceptional tensile strength, chemical resistance, and installation efficiency.
Key Features
- High-Pressure Resistance: Leak-tested to 230 PSI, ensuring reliable, leak-free performance under demanding conditions.
- Durable and Chemical Resistant: Engineered to resist corrosion and most common chemicals, making them ideal for harsh and industrial environments.
- Versatile Application: Suitable for both blowing and pulling operations, accommodating a wide range of installation methods and field conditions.
- Compact Push-Fit Design: Streamlined, low-profile body allows quick installation in confined areas like manholes, trenches, and duct banks.
- Tool-Free Assembly: Simply push the duct ends into the coupler for a fast, secure, and air-tight connection — no tools or adhesives required.
Innovative Design for Enhanced Usability

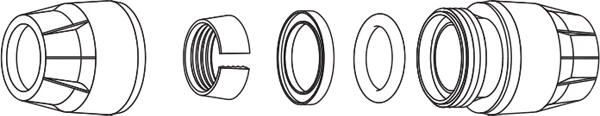

Comfit’s compact, push-fit design reduces installation time and eliminates the need for mechanical or fusion tools. The couplers are reusable and feature an air-tight sealing mechanism that ensures long-term reliability while simplifying disassembly for maintenance or reconfiguration. Designed with field efficiency in mind, they are the preferred choice for contractors seeking a cost-effective, robust duct connection solution.
Specifications
| Part Number | Nominal OD (mm) | Nominal OD (in) | Duct OD (mm) | Duct OD (in) | Max Tension (PSI) | Units per Box |
|---|---|---|---|---|---|---|
| 08566109 | 26.6 | ¾ | 26.6 | 1.050 | 580 | 144 |
| 08566110 | 33.4 | 1 | 33.4 | 1.315 | 580 | 70 |
| 08566112 | 42.2 | 1¼ | 42.2 | 1.660 | 1130 | 56 |
| 08566115 | 48.3 | 1½ | 48.3 | 1.900 | 1470 | 36 |
| 08566120 | 60.3 | 2 | 60.3 | 2.375 | 2400 | 13 |
Applications
- Telecommunication duct systems
- Fiber optic cable installation and protection
- Power and signal duct connections
- Utility and municipal infrastructure
- Blowing and pulling cable operations
