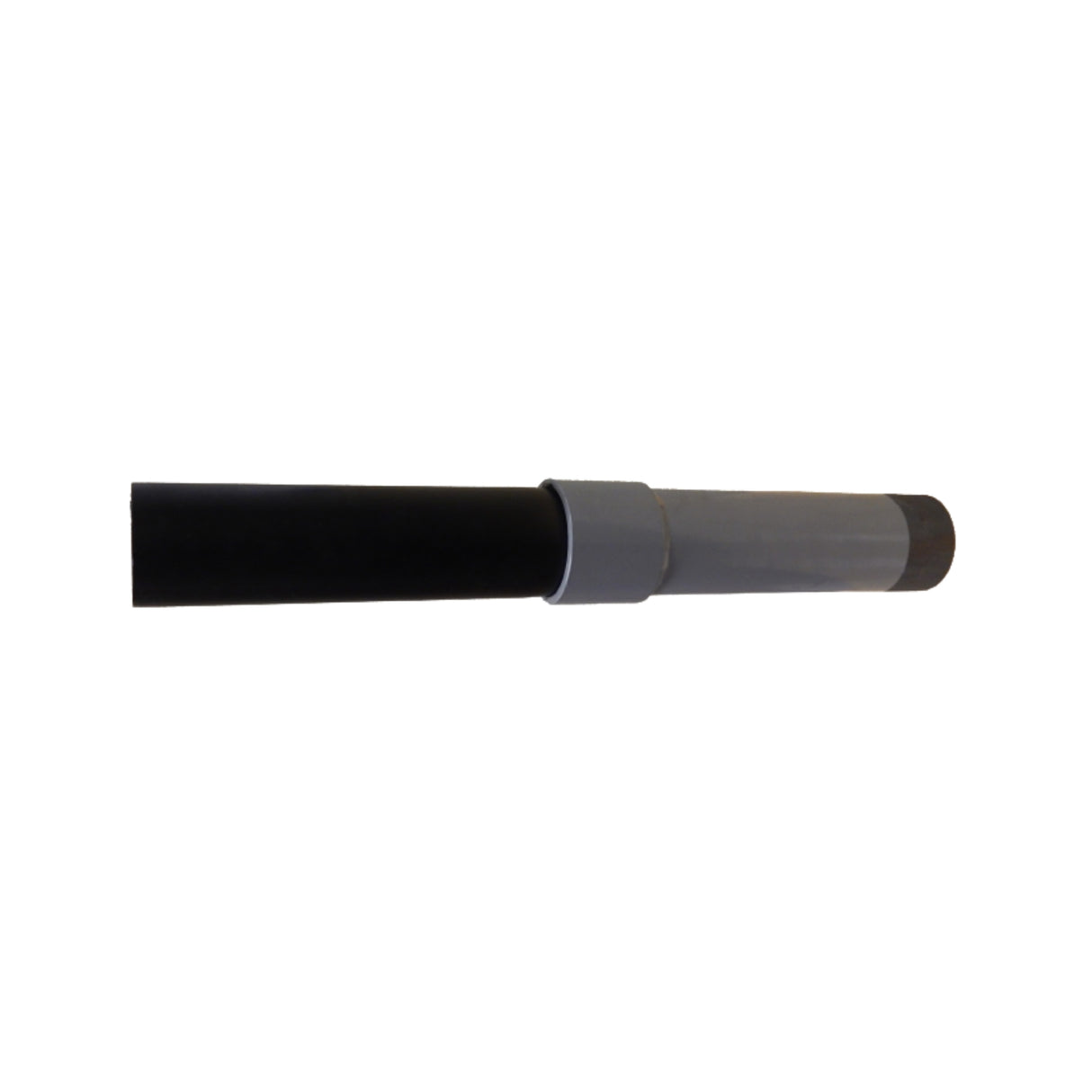

Integrity Fusion Heavy-Duty Weld-End Transition Fittings provide a robust mechanical connection between HDPE and steel piping systems. Designed for SDR 7, 9, 11, and 17 HDPE pipe, each fitting is precision-machined and internally and externally epoxy-coated for superior corrosion protection and long-term durability.
Each transition features an internally beveled steel collar and full-length HDPE extension, ensuring a piggable, leak-tight joint rated to the maximum allowable operating pressure (MAOP) of the connected HDPE pipe. These fittings meet ASTM and AWWA performance standards and are suitable for municipal, industrial, and utility applications where a welded steel interface is required.
Key Features & Benefits
- Weld-End Steel Transition — Provides a secure, pressure-rated connection from HDPE to steel systems.
- Epoxy-Coated Protection — Internal and external coating ensures long-term corrosion resistance.
- Full HDPE Coverage — Prevents internal corrosion and maintains a smooth, piggable bore.
- Pressure-Rated by SDR — Supports MAOP ranges from 125 PSI (SDR 17) to 335 PSI (SDR 7).
- Industry Certified — Meets ASTM D3261, F1598, F1599, AWWA C901/C906, and NSF/ANSI 61 & 372 standards.
Typical Applications
- Municipal water and wastewater systems
- Oilfield, industrial, and process piping
- Geothermal and irrigation systems
- Mining, landfill, and dredging projects
Heavy-Duty Weld-End Transition Dimensions
| SDR | Nominal Size | X Exposed HDPE (in.) | Y Steel Collar Length (in.) | D HDPE OD (in.) | d HDPE ID (in.) | Z Steel Collar Width (in.) | Z1 Uncoated Weld Zone (in.) | Weight (lb) | Item Code |
|---|---|---|---|---|---|---|---|---|---|
| SDR 7 | 2″ IPS | 15.52 | 13.76 | 2.375 | 1.943 | 3.00 | 2.00 | 8.1 | 400719 |
| SDR 7 | 3″ IPS | 15.23 | 17.84 | 3.500 | 2.864 | 4.03 | 2.00 | 14.4 | 400722 |
| SDR 7 | 4″ IPS | 15.12 | 17.92 | 4.500 | 3.682 | 5.28 | 2.00 | 24.1 | 400725 |
| SDR 7 | 6″ IPS | 13.05 | 17.88 | 6.625 | 5.421 | 7.08 | 2.00 | 49.2 | 400728 |
| SDR 7 | 8″ IPS | 11.72 | 22.82 | 8.625 | 7.057 | 9.81 | 2.00 | 97.6 | 400731 |
| SDR 9 | 2″ IPS | 15.52 | 13.76 | 2.375 | 1.943 | 3.00 | 2.00 | 7.9 | 400720 |
| SDR 9 | 3″ IPS | 15.23 | 17.84 | 3.500 | 2.864 | 4.03 | 2.00 | 13.9 | 400723 |
| SDR 9 | 4″ IPS | 15.12 | 17.92 | 4.500 | 3.682 | 5.28 | 2.00 | 23.3 | 400726 |
| SDR 9 | 6″ IPS | 13.05 | 17.88 | 6.625 | 5.421 | 7.08 | 2.00 | 47.5 | 400729 |
| SDR 9 | 8″ IPS | 11.72 | 22.82 | 8.625 | 7.057 | 9.81 | 2.00 | 94.6 | 400732 |
| SDR 11 | 2″ IPS | 15.52 | 13.76 | 2.375 | 1.943 | 3.00 | 2.00 | 7.7 | 400718 |
| SDR 11 | 3″ IPS | 15.23 | 17.84 | 3.500 | 2.864 | 4.03 | 2.00 | 13.6 | 400721 |
| SDR 11 | 4″ IPS | 15.12 | 17.92 | 4.500 | 3.682 | 5.28 | 2.00 | 22.7 | 400724 |
| SDR 11 | 6″ IPS | 13.05 | 17.88 | 6.625 | 5.421 | 7.08 | 2.00 | 46.2 | 400727 |
| SDR 11 | 8″ IPS | 11.72 | 22.82 | 8.625 | 7.057 | 9.81 | 2.00 | 92.6 | 400730 |
| SDR 17 | 6″ IPS | 13.05 | 17.88 | 6.625 | 5.845 | 7.08 | 2.00 | 44.2 | 400737 |
| SDR 17 | 8″ IPS | 11.72 | 22.82 | 8.625 | 7.611 | 9.81 | 2.00 | 89.1 | 400738 |
All dimensions in inches unless noted. Manufactured from PE4710 resin and A106/A53 Schedule 40 carbon steel with internal/external epoxy coating. Complies with ASTM and AWWA performance standards.
