Molded 4-Way Cross | IPS | SDR 9 | 250 PSI

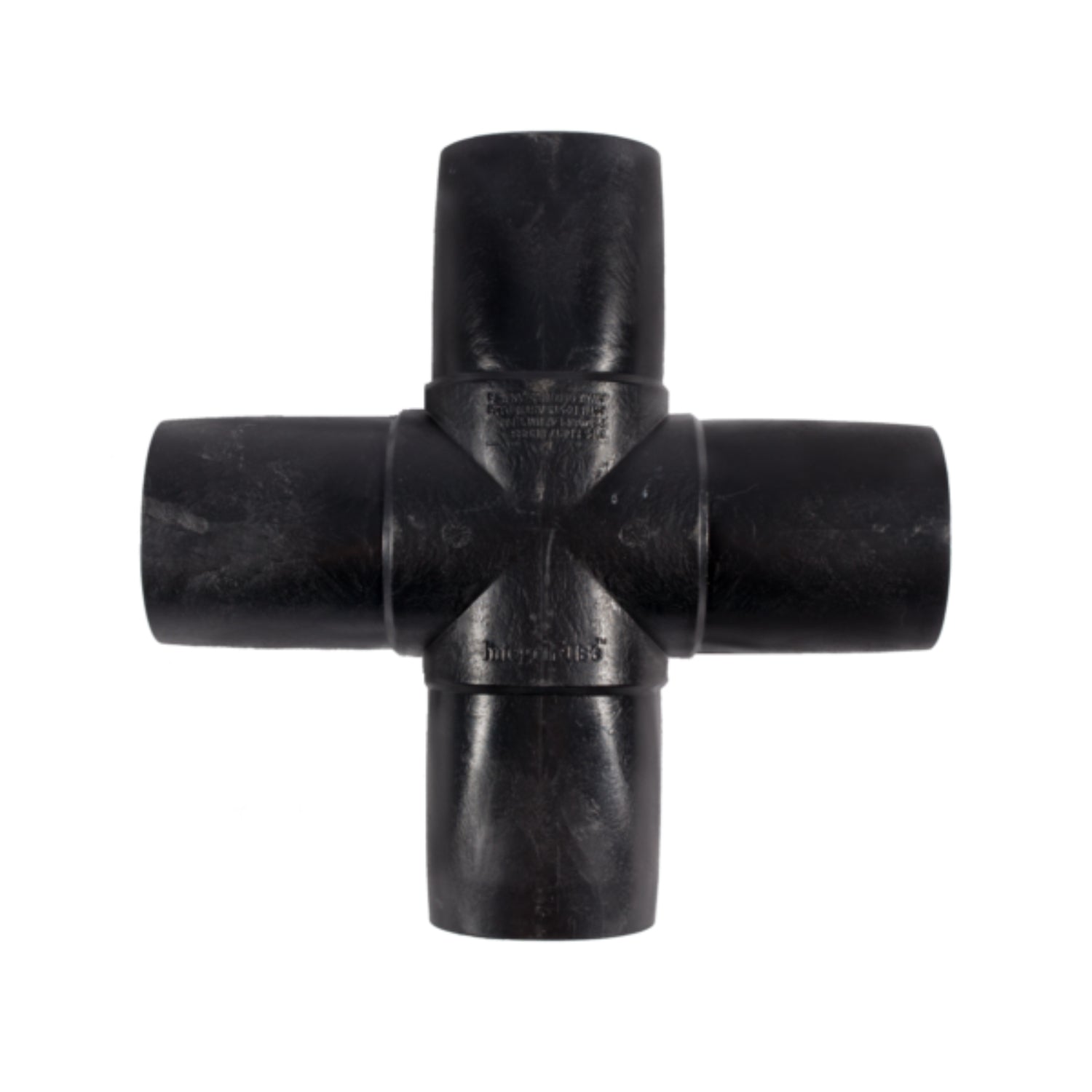

Unlock efficient flow distribution with the HDPE Molded 4-Way Cross, engineered for IPS piping systems in demanding industrial and municipal applications. This injection-molded butt fusion fitting features four openings positioned at 90-degree angles, allowing for a clean and precise intersection between four pipe sections. It enables smooth redirection or redistribution of liquids or gases without internal restrictions—maintaining full flow capacity and structural integrity across the system.
Manufactured from NSF-listed, bi-modal virgin HDPE resin (PE3408/PE4710/PE100), this cross fitting offers excellent resistance to stress cracking, corrosion, and harsh environmental conditions. Available in SDR 9 with a 250 PSI Maximum Allowable Operating Pressure (MAOP @ 73.4°F), it supports high-performance reliability in both new installations and system retrofits.
Ideal for potable water, gas distribution, mining, and industrial systems, this fitting is designed and tested to meet or exceed key industry standards including ASTM D2513, D3261, AWWA C901/C906, FM 1613, and NSF 61.
Key Features:
- Fitting Type: Molded 4-Way Cross (Butt Fusion)
- Pipe Standard: IPS
- Pressure Rating: 250 PSI (MAOP @ 73.4°F)
- SDR Rating: SDR 9
- Material: NSF-listed PE3408/PE4710/PE100 HDPE Resin
- Size Range: 2” – 4” nominal pipe sizes
- Compliance: ASTM D2513, D3261, F-714; AWWA C901/C906; FM 1613; NSF 61
IPS
SDR 9 (standard dimension ratio)
250 PSI (MAOP @ 73.4o F)
| Nominal Size | A [in.] | B [in.] | C [in.] | D [in.] | E [in.] | Weight [lbs.] | Item Code | FM Class |
|---|---|---|---|---|---|---|---|---|
| 2” IPS | 8.96 | 4.45 | 0.264 | 2.375 | 2.64 | 1.1 | 100773 | ----- |
| 3” IPS | 11.81 | 5.90 | 0.389 | 3.500 | 3.54 | 2.8 | 100777 | ----- |
| 4” IPS | 13.98 | 6.89 | 0.500 | 4.500 | 3.94 | 5.3 | 100781 | ----- |
