RED-WHITE VALVE CORP.  |  SKU: 30078270  |  MPN: 5015AB 1/2

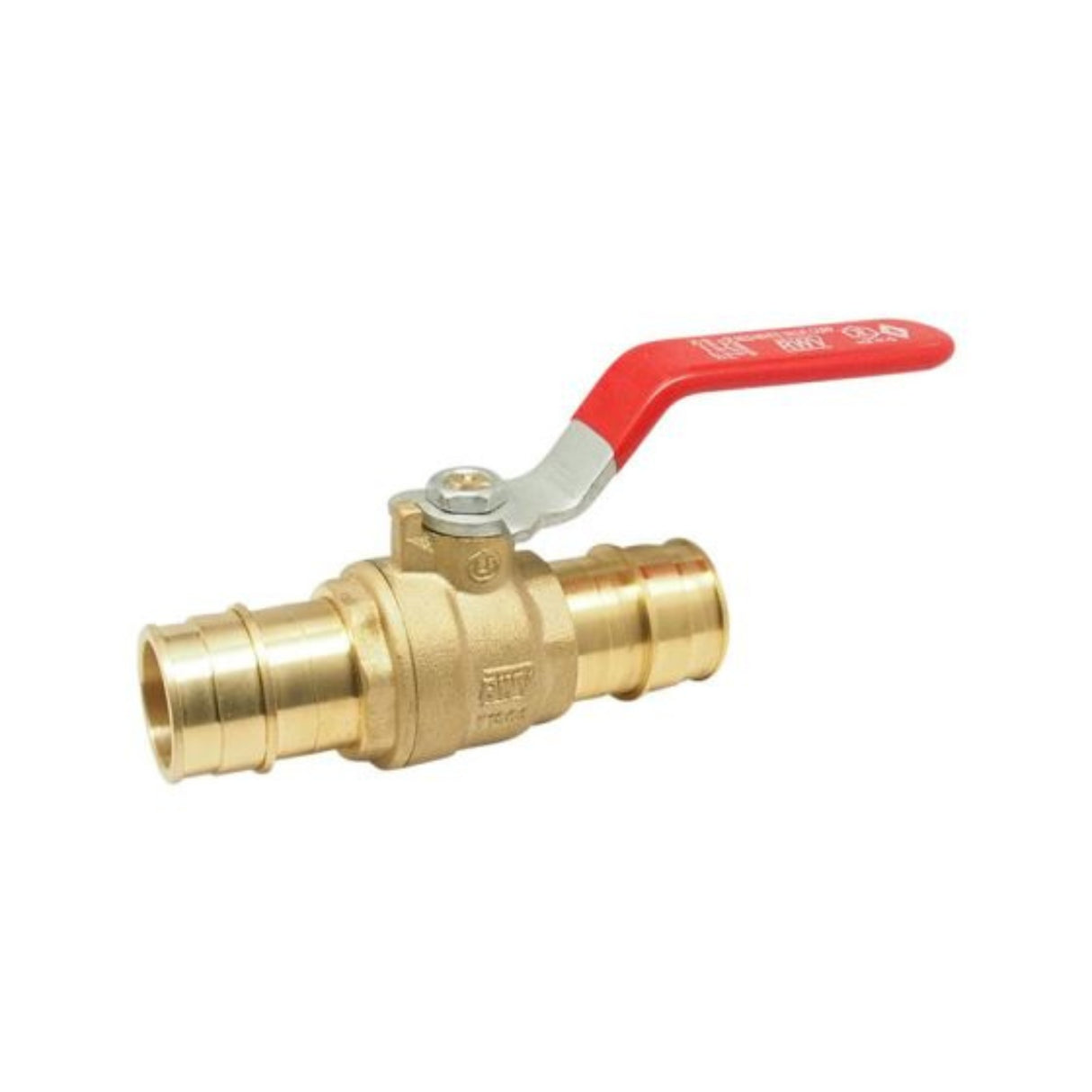

Hydronic PEX Ball Valve | 5015AB Series | Barb × Barb | Full Port | DZR Lead-Free Brass

$13.40
  • Lead-Free DZR Brass Construction — Manufactured from ASTM B927 C27453 brass for corrosion resistance and full AB1953, NSF/ANSI 61 & 372 compliance.
  • PEX (F1960) Barb × Barb Ends — Compatible with ASTM F1960 expansion systems for reliable, leak-free installations.
  • Full-Port Flow Design — Provides unrestricted flow, minimizing pressure drop in hydronic and potable water systems.
  • Pressure Rated 400 PSI WOG — Performs under demanding temperature and pressure conditions from 15°F to 200°F.
  • Optional Models Available — Includes versions with drain (5015ABD), foot (5015ABF), both (5015ABDF), or wing handle (5015ABW) for installation flexibility.
📄 Download Spec Sheet

Hydronic PEX Ball Valve | 5015AB Series | Barb × Barb | Full Port | DZR Lead-Free Brass

5015AB Series Hydronic Ball Valves provide a reliable, lead-free solution for PEX plumbing and hydronic systems. Constructed from DZR (Dezincification-Resistant) brass and certified under NSF/ANSI 61 & 372, these full-port valves are engineered to deliver consistent flow, corrosion resistance, and lasting leak protection for residential and commercial applications.

Key Features & Benefits

  • Lead-Free DZR Brass Construction — Engineered from ASTM B927 C27453 brass for corrosion resistance and full AB1953 and NSF/ANSI 61 & 372 compliance.
  • PEX (F1960) Barb × Barb Connection — Compatible with ASTM F1960 expansion PEX systems for quick, secure installation.
  • Full-Port Flow Path — Unrestricted water flow for maximum system efficiency and minimal pressure drop.
  • Reliable Sealing System — Chrome-plated brass ball, virgin PTFE seats, and double NBR O-ring stem packing provide smooth operation and superior sealing.
  • High Pressure Rating — Rated 400 PSI WOG; 300 PSI from 15 °F to 160 °F and 150 PSI max at 200 °F.

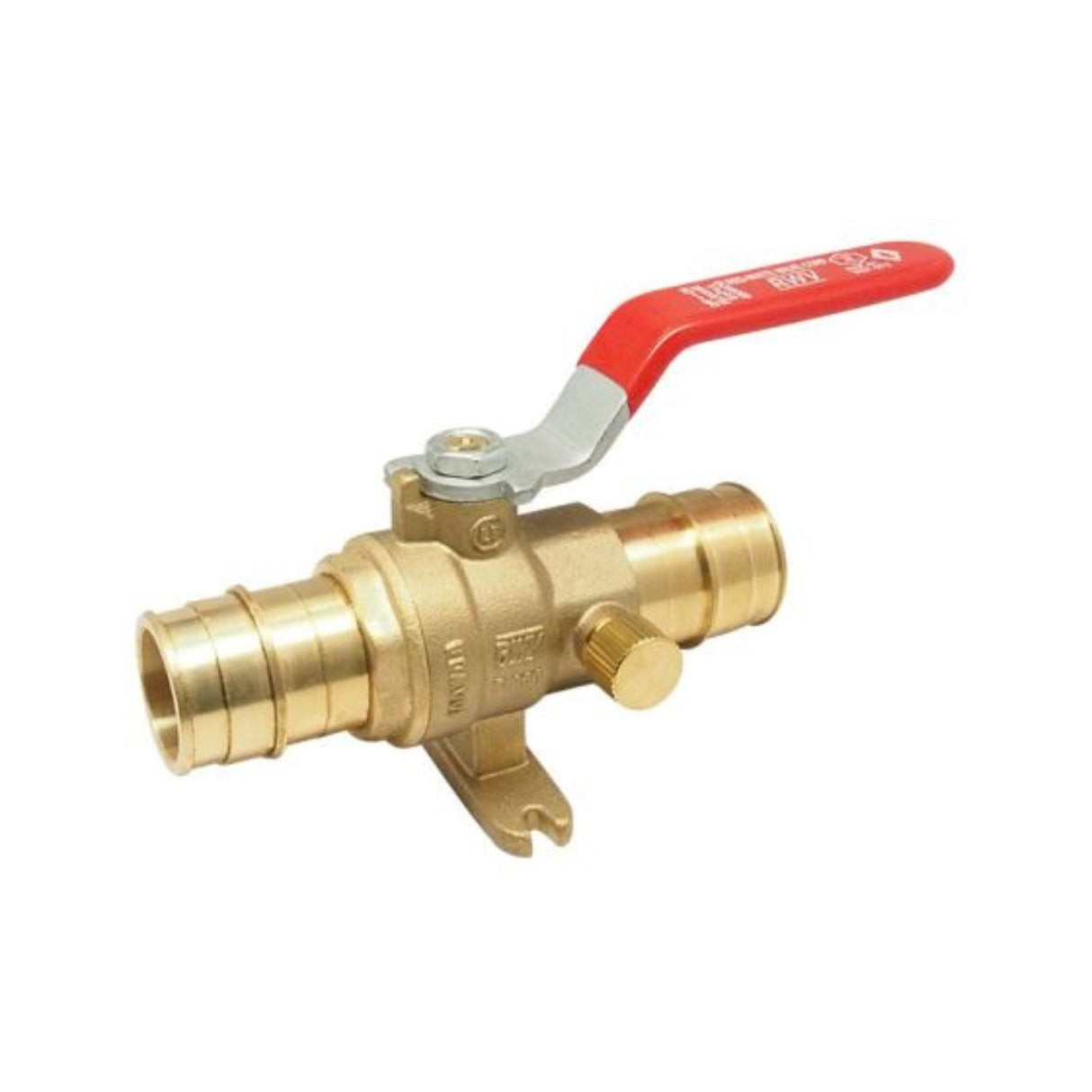

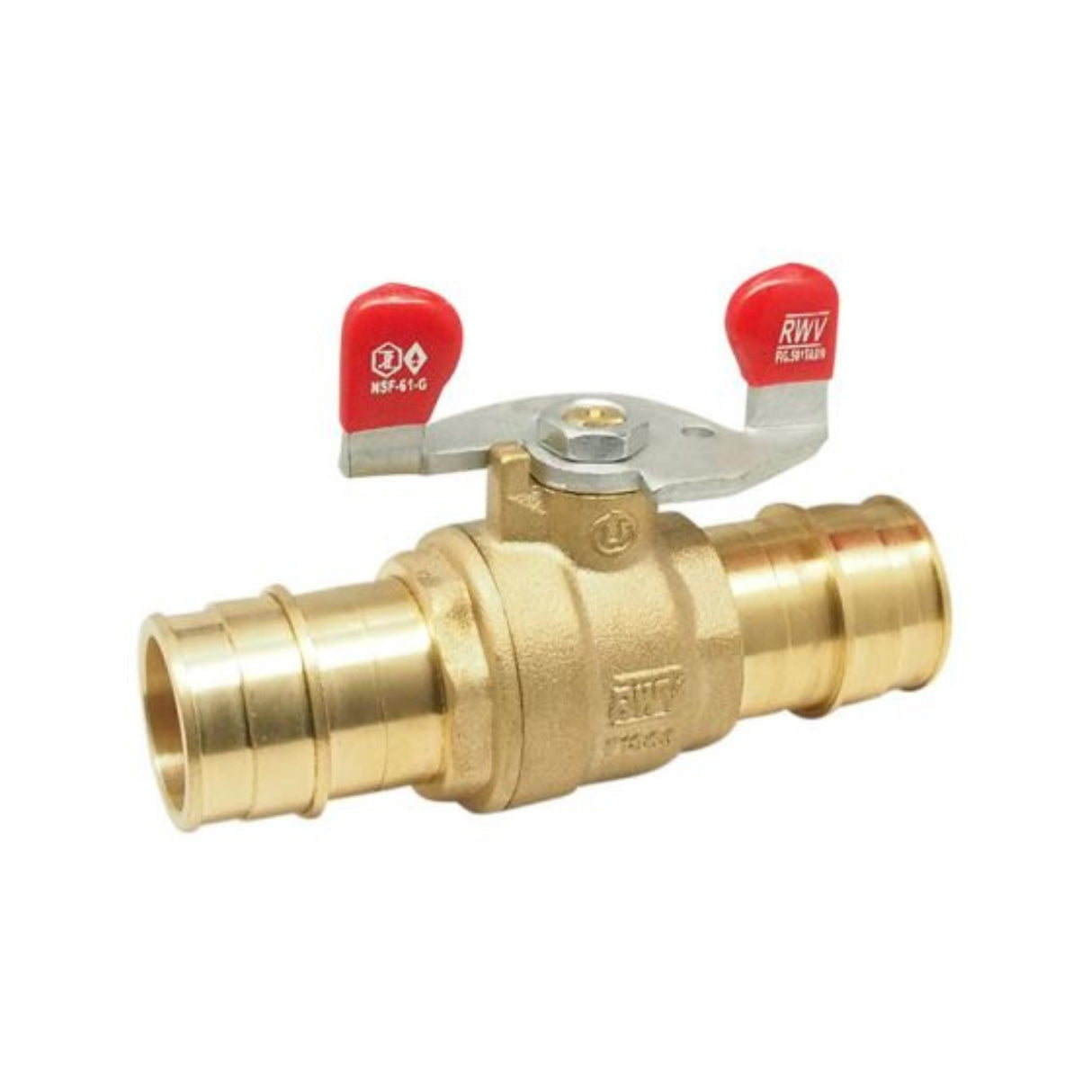

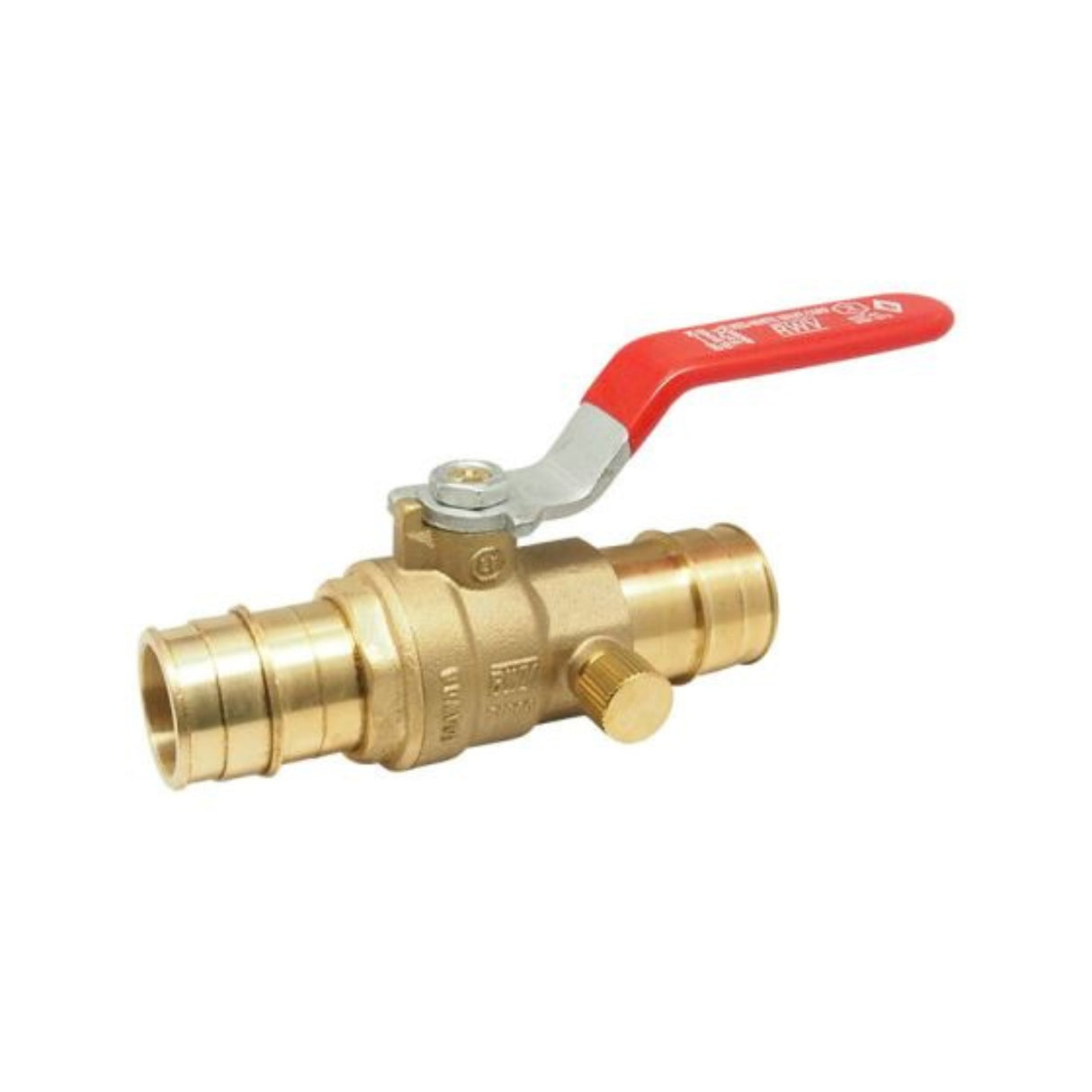

  • Optional Configurations — Available with drain (5015ABD), mounting foot (5015ABF), or both drain & foot (5015ABDF), plus optional wing handle (5015ABW).

Pressure / Temperature Rating

Pressure Temperature Range
300 PSI WOG 15 °F to 160 °F
150 PSI Up to 200 °F

Dimension, Weight

Size A [in] H [in] L [in] P [in] Weight [lb]
1/2" 2.48 1.38 3.19 0.39 0.28
5/8" 3.07 1.38 3.19 0.39 0.43
3/4" 2.48 1.77 3.58 0.50 0.44
1" 3.86 1.77 3.58 0.73 0.68
1-1/4" 4.63 2.03 4.96 0.94 1.16
1-1/2" 5.63 2.24 4.96 1.22 1.62
2" 6.67 2.70 5.55 1.46 2.78
2-1/2" 8.96 3.07 5.55 1.95 5.08
3" 10.81 3.90 7.91 2.44 8.92

Material Construction

# Part Material Specification
1 Body DZR Lead-Free Brass ASTM B927 C27453
2 End Piece DZR Lead-Free Brass ASTM B927 C27453
3 Ball Chrome-Plated Lead-Free Brass ASTM B927 C27453
4 Seat PTFE PTFE
5 Stem DZR Lead-Free Brass ASTM B927 C27453
6 O-Ring NBR NSF Approved
7 Handle Steel, Dacromet Plated ASTM A36
8 Handle Nut Steel, Zinc Plated ASTM A36

Warning (California Prop 65): This product can expose you to chemicals including lead, known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
