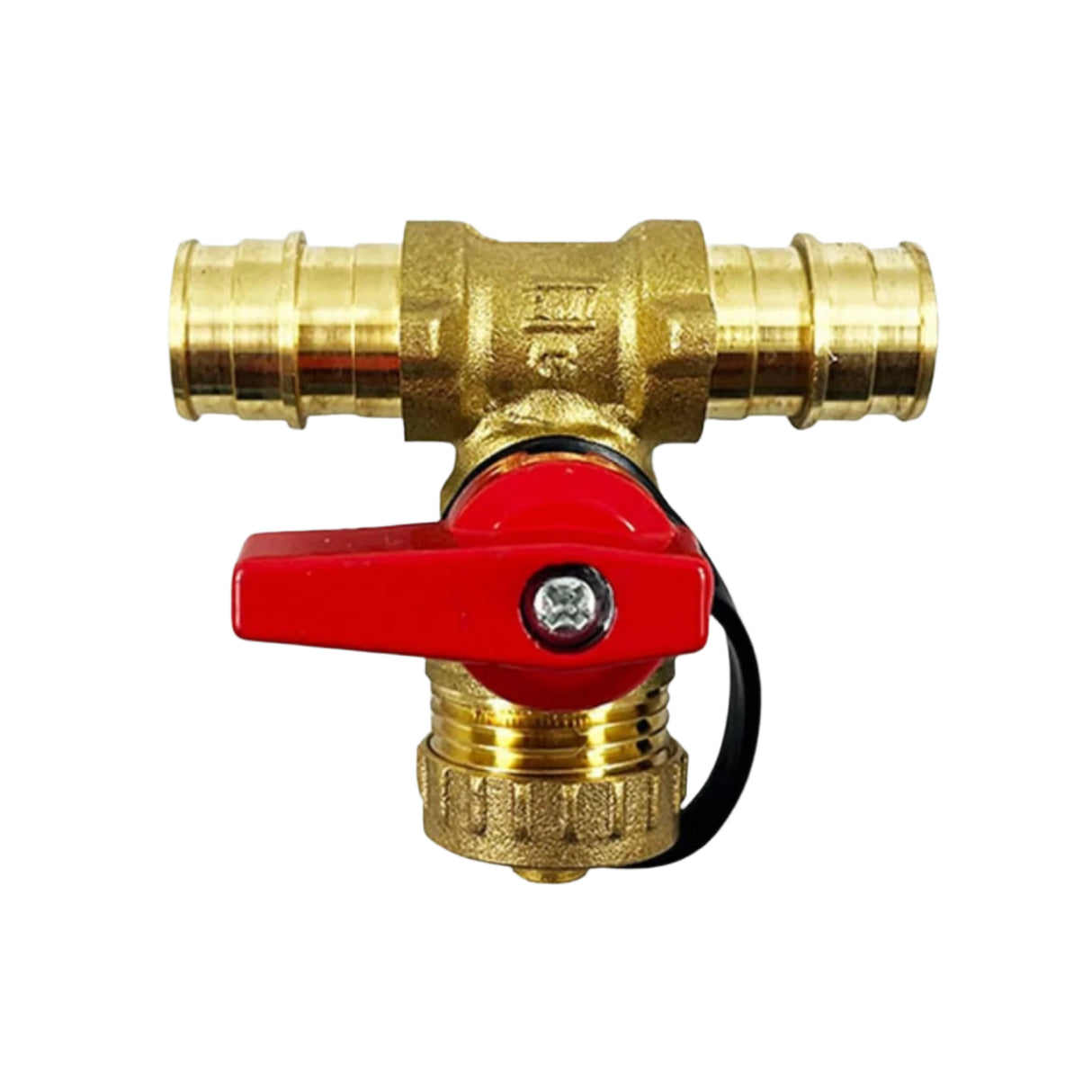

Hydronic Tee Drain Valve | 8040E Series | PEX × PEX (F1960) | Full Port | DZR Lead-Free Brass

Hydronic Tee Drain Valve | 8040E Series | PEX × PEX (F1960) | Full Port | DZR Lead-Free Brass

8040E Series Hydronic Tee Drain Valves are built for reliability, safety, and long service life in potable water, hydronic, and heating systems. Constructed from DZR lead-free brass and certified under NSF/ANSI 61 & 372, this valve provides a secure PEX (ASTM F1960) × PEX (ASTM F1960) connection and includes a high-flow hose drain with a cap and chain for fast, controlled drainage.

Key Features & Benefits

• Lead-Free DZR Brass Construction — Engineered for potable water use, compliant with NSF/ANSI 61 & 372 and AB1953 low-lead requirements.
• PEX (F1960) × PEX (F1960) Connections — Easy installation with expansion-style PEX fittings for secure, flame-free plumbing integration.
• Full-Port Design — Provides unrestricted flow with minimal pressure drop for optimal system performance.
• Integrated Drain with Cap & Chain — High-flow drain outlet simplifies system maintenance and winterization.
• Durable Sealing Components — Chrome-plated brass ball, virgin PTFE seats, and EPDM gaskets ensure a long-lasting, leak-free seal.
• High Pressure Rating — Rated 400 PSI WOG for dependable operation in residential, commercial, and hydronic installations.
• Temperature Range — Safe from 15 °F to 260 °F; antifreeze or anti-boiling additives recommended for extreme conditions.

Pressure / Temperature Rating

Dimension, Weight

Material Construction

Warning (California Prop 65): This product can expose you to chemicals including lead, known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
