PVC Elbows | Schedule 80 | 45° Sweep | Bell End
$2,004.26
Unit price
/
Select Option

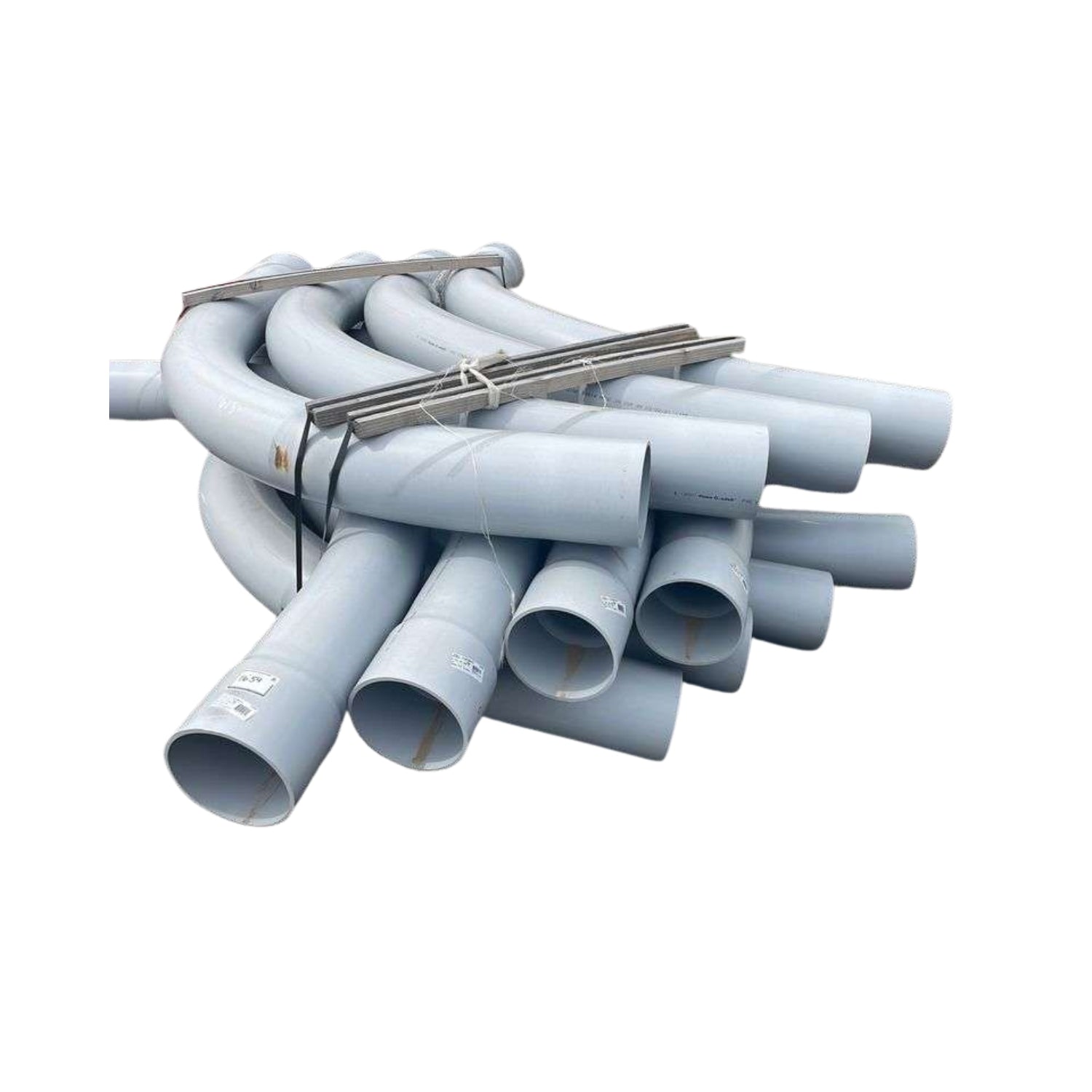

PVC Elbows | Schedule 80 | 45° Sweep | Bell End
Schedule 80 PVC 45° Sweep Elbows provide heavy-duty performance for conduit systems requiring reliable directional changes. Constructed from extra-thick PVC with integral bell ends, these elbows deliver superior impact resistance and code-compliant performance. Designed for underground, encased, or exposed use, they are UL 651 listed and meet NEC and NEMA TC-2 standards.
Key Features:

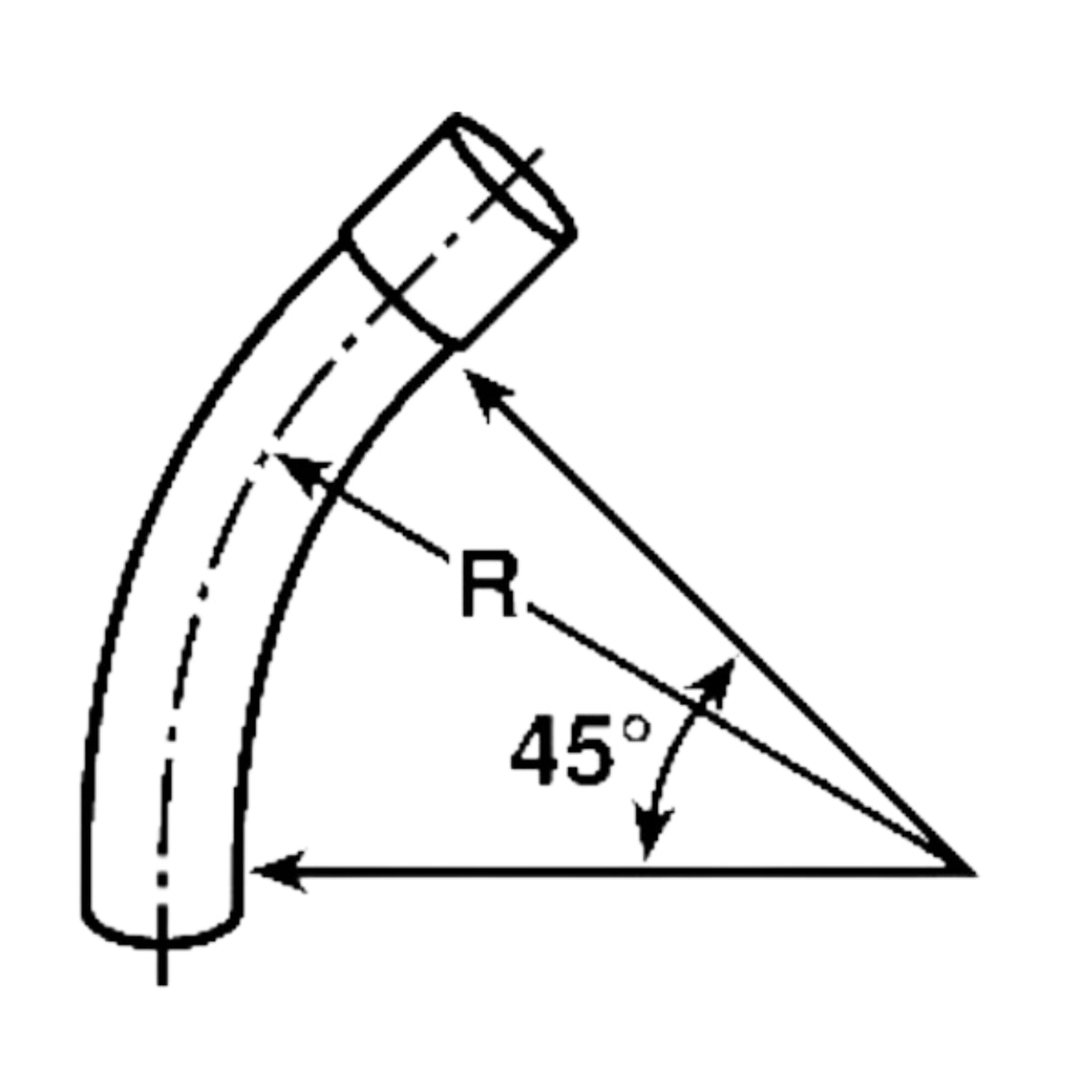

- 45° sweep bend: Smooth directional changes reduce cable strain and pulling tension
- Heavy-wall Schedule 80: Thick PVC walls withstand demanding commercial and utility environments
- Bell-end connection: Integral belled ends ensure fast, secure solvent-weld assembly
- UL 651 listed and NEC compliant: Meets NEMA TC-2 standards for safe conduit installations
- Available in 1-1/2" to 5": Full range of trade sizes with multiple radius options
Available Configurations & Part Numbers:
| Part Number | Trade Size | Angle | Radius | Connection |
|---|---|---|---|---|
| UB7DHB | 1-1/2" | 45° | 24" | Bell End |
| UB7DJB | 2" | 45° | 24" | Bell End |
| UB7FJB | 2" | 45° | 36" | Bell End |
| UB7DKB | 2-1/2" | 45° | 24" | Bell End |
| UB7DLB | 3" | 45° | 24" | Bell End |
| UB7FLB | 3" | 45° | 36" | Bell End |
| UB7DNB | 4" | 45° | 24" | Bell End |
| UB7FNB | 4" | 45° | 36" | Bell End |
| UB7APB | 5" | 45° | Standard Radius | Bell End |
