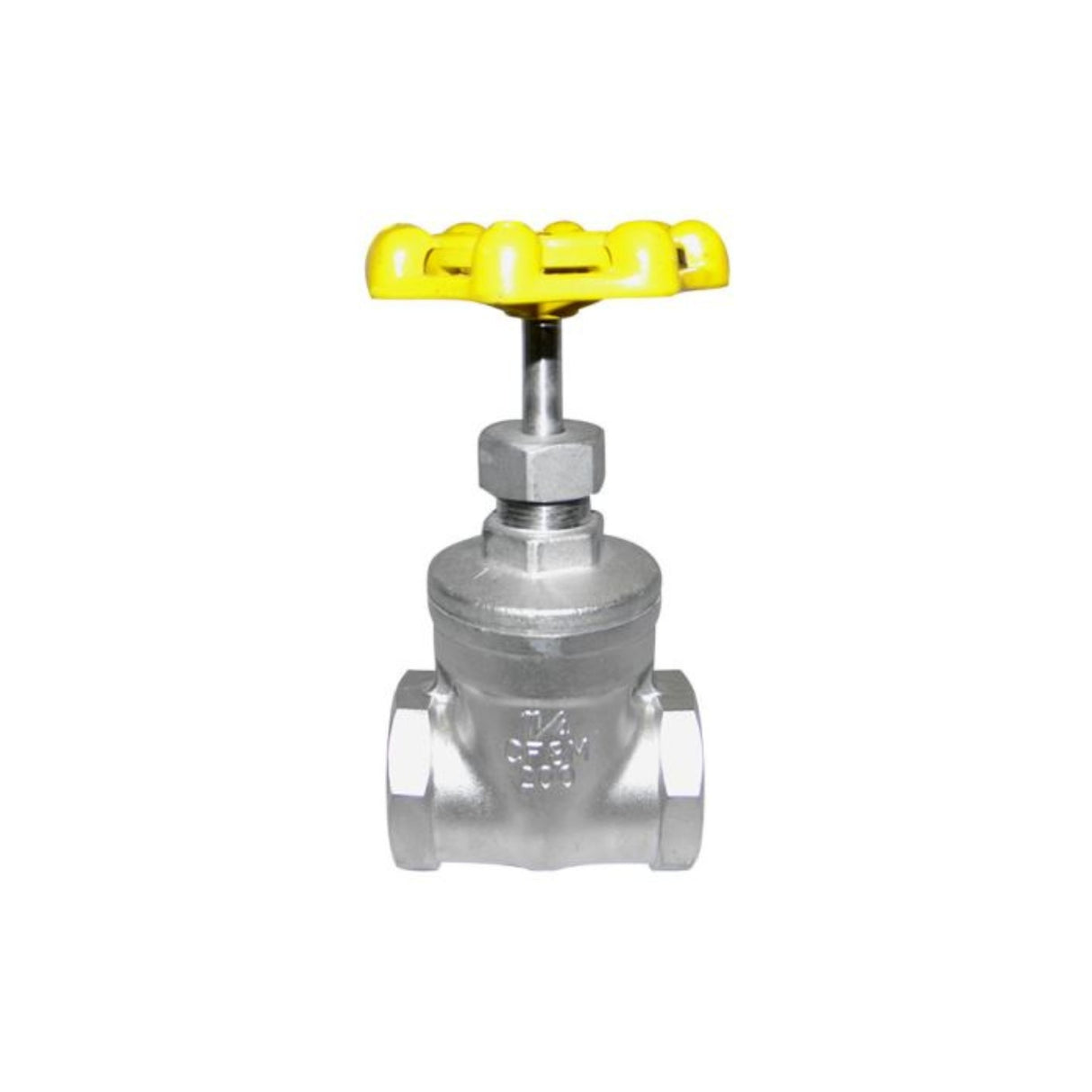

Stainless Steel Gate Valve | 882 Series | FNPT × FNPT | Solid Disc | 200# WOG
$48.80
Unit price
/
Select Option
Stainless Steel Gate Valve | 882 Series | FNPT × FNPT | Solid Disc | 200# WOG
Red-White Valve 882 Series Stainless Steel Gate Valves are engineered for dependable shutoff and long service life in demanding industrial, commercial, and residential systems. Built from ASTM A351 CF8M stainless steel with precision-machined components, this valve provides excellent resistance to corrosion and mechanical stress. Its solid disc and insert bonnet design ensure smooth operation, tight sealing, and minimal maintenance requirements.
Key Features & Benefits
- All-Stainless Construction: Body and bonnet are made from A351 CF8M stainless steel with A276 316 stainless trim for maximum corrosion resistance and durability.
- Solid Disc Design: Provides a tight shutoff and reliable performance in water, oil, and gas service.
- FNPT × FNPT Threaded Ends: Standard NPT threads allow for simple installation and maintenance.
- Pressure & Temperature Rating: Rated for 200# WSP/WOG and up to 350°F for broad industrial and mechanical use.
- PTFE Sealing: PTFE packing and gasket ensure leak-proof operation under high-pressure conditions.
- Easy Operation: Equipped with a durable cast iron handwheel and stainless steel stem for smooth, controlled flow adjustment.
Applications
- Industrial and chemical processing systems
- Water, oil, and gas flow control
- HVAC and boiler room systems
- General-purpose fluid management
Dimensions, Weights (in-lb) & Valve Data
| Size | D [in] | H [in] | L [in] | Wt. [lb] |
|---|---|---|---|---|
| ½″ | 2.36 | 3.66 | 2.13 | 0.88 |
| ¾″ | 2.76 | 4.06 | 2.28 | 1.11 |
| 1″ | 2.76 | 4.41 | 2.56 | 1.63 |
| 1¼″ | 3.15 | 4.92 | 2.91 | 2.20 |
| 1½″ | 3.54 | 5.71 | 3.07 | 2.35 |
| 2″ | 3.94 | 6.69 | 3.43 | 4.35 |
Pressure / Temperature Rating
| Pressure | Temperature |
|---|---|
| 200# WSP/WOG | 350°F Max Temp |
Materials & Specifications
| Item | Description | Material | Specification |
|---|---|---|---|
| 1 | Body | Stainless Steel | A351 CF8M |
| 2 | Bonnet | Stainless Steel | A351 CF8M |
| 3 | Disc | Stainless Steel | A276 316 |
| 4 | Stem | Stainless Steel | A276 316 |
| 5 | Stem Nut | Stainless Steel | A276 316 |
| 6 | Washer | Stainless Steel | A276 316 |
| 7 | Packing | PTFE | - |
| 8 | Gland | Stainless Steel | A276 316 |
| 9 | Gland Nut | Stainless Steel | A351 CF8M |
| 10 | Gasket | PTFE | - |
| 11 | Handwheel | Cast Iron | - |
| 12 | Name Plate | Aluminum | B85 |
| 13 | Handwheel Nut | Stainless Steel | A276 316 |
All specifications verified against Red-White Valve 882 Series spec sheet.
