Molded Transition Saddle | 200/125 PSI HDPE | Multi-Base | IPS & DIPS

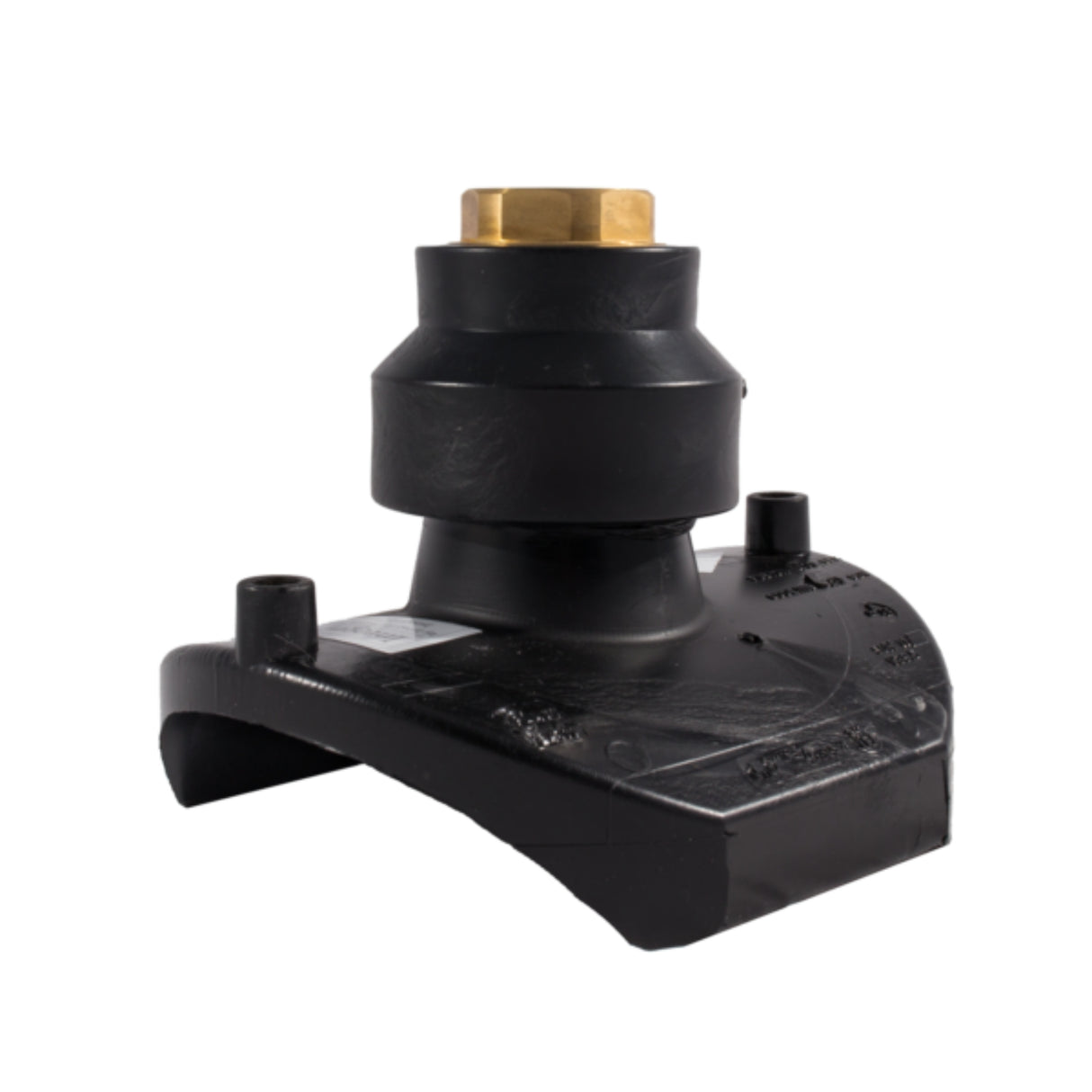

Unlock versatility and long-term performance with the IntegriFuse Molded Electrofusion Transition Saddle, engineered for use on IPS and DIPS piping systems. Designed with a flexible multi-base that fits SDR 11 and SDR 17 pipe sizes, this saddle eliminates the need for multiple saddle inventories—saving time and cost on varied job sites.
Pressure-rated to 200 PSI (SDR 11) and 125 PSI (SDR 17), each saddle is molded from high-density, NSF-listed bi-modal virgin HDPE resin (PE3408/PE4710/PE100). Its flexible base ensures a tight, gap-free seal across various pipe diameters for secure, consistent installations.
The overmolded threaded outlet—factory-fused for durability—is available in ANSI/AWWA standard CC or NPT patterns, using certified No-Lead Brass or corrosion-resistant 316 Stainless Steel. Each saddle includes standard straps, requiring no additional clamps or tools for installation.
Key Features:
- Multi-Base Flexibility: Compatible with both SDR 11 and SDR 17 IPS & DIPS pipe systems
- Threaded Outlet Options: Overmolded CC or NPT threads in No-Lead Brass or 316 Stainless Steel
- High-Performance Resin: Manufactured from NSF-certified PE3408/PE4710/PE100 HDPE
- Wide Size Range: Molded for nominal pipe sizes from 2” to 36”
- Certified Quality: Meets ASTM F1055, D2513, D3261, AWWA C901/C906, FM 1613, NSF 61
Applications:
- Potable water distribution
- Natural gas and air systems
- Industrial piping
- Landfill and mining operations
- Oil and gas infrastructure
Technical Notes:
- MAOP: 200 PSI (SDR 11), 125 PSI (SDR 17) at 73.4°F
- Thread Sizes: ¾" to 2" CC or NPT
- Fusion Compatibility: Fusion times align with SDR 11; valid for +/- 1 SDR range. For thicker walls, contact manufacturer for adjusted barcode times.
- Training Requirement: Installation must be performed by certified personnel trained in electrofusion methods per ASTM standards.
IPS & DIPS Multi-Base Saddles
SDR 11/17 Flexible Saddle Bases Will Fit Multiple Pipe Diameters
200/125 PSI (MAOP @ 73.4o F)
| Base Size (D) [in.] | Outlet Size | Outlet Type | Thread Pattern | H [in.] | W [in.] | Weight [lbs.] | Item Code | # of Straps IncL |
|---|---|---|---|---|---|---|---|---|
| 6" IPS/DIPS (multi-base) | 3/4" | Brass | CC | 2.53 | 200844 | 1 | ||
| 1" | Brass | CC | 2.53 | 200820 | 1 | |||
| 1" | Brass | NPT | 2.53 | 200818 | 1 | |||
| 2" | Brass | NPT | 3.67 | 200816 | 1 | |||
| 1" | 316 Stainless | NPT | 2.53 | 200819 | 1 | |||
| 2" | 316 Stainless | NPT | 3.67 | 200817 | 1 | |||
| 8" IPS/DIPS - 10" IPS/DIPS (multi-base) | 3/4" | Brass | CC | 2.53 | 200845 | 1 | ||
| 1" | Brass | CC | 2.53 | 200825 | 1 | |||
| 1" | Brass | NPT | 2.53 | 200823 | 1 | |||
| 2" | Brass | CC | 3.67 | 200821 | 1 | |||
| 1" | 316 Stainless | NPT | 2.53 | 200824 | 1 | |||
| 2" | 316 Stainless | NPT | 3.67 | 200822 | 1 | |||
| 12" IPS/DIPS - 18" IPS/DIPS (multi-base) | 3/4" | Brass | CC | 2.53 | 200846 | 1 | ||
| 1" | Brass | CC | 2.53 | 200830 | 1 | |||
| 1" | Brass | NPT | 2.53 | 200828 | 1 | |||
| 2" | Brass | NPT | 3.67 | 200826 | 1 | |||
| 1" | 316 Stainless | NPT | 2.53 | 200829 | 1 | |||
| 2" | 316 Stainless | NPT | 3.67 | 200827 | 1 | |||
| 20" IPS/DIPS - 22" IPS/DIPS (multi-base) | 3/4" | Brass | CC | 2.53 | 200847 | 1 | ||
| 1" | Brass | CC | 2.53 | 200835 | 1 | |||
| 1" | Brass | NPT | 2.53 | 200833 | 1 | |||
| 2" | Brass | NPT | 3.67 | 200831 | 1 | |||
| 1" | 316 Stainless | NPT | 2.53 | 200834 | 1 | |||
| 2" | 316 Stainless | NPT | 3.67 | 200832 | 1 | |||
| 20" IPS/DIPS - 36" IPS/DIPS (multi-base) | 3/4" | Brass | CC | 2.53 | 200840 | 2 | ||
| 1" | Brass | CC | 2.53 | 200838 | 2 | |||
| 1" | Brass | NPT | 2.53 | 200836 | 2 | |||
| 2" | Brass | NPT | 3.67 | 200839 | 2 | |||
| 1" | 316 Stainless | NPT | 2.53 | 2005837 | 2 | |||
| 2" | 316 Stainless | NPT | 3.67 | 2005837 | 2 |
