Hanger Sheave Arms & Replacement Parts | OEM Fit for 5"–8" Sheaves
$1,715.75
Unit price
/
Select Option
Heavy Duty Hanger Sheaves – Replacement Parts & Optional Alignment Arm | OEM Fit for 5"–8" Sheaves
These are OEM replacement components for Heavy Duty Hanger Sheave assemblies. Use these parts to service worn components (sheaves, arms, axles) without replacing a full assembly. Select the exact component you need using the variant options above.
Key Features
- OEM Direct-Fit Parts – Match original hanger sheave specifications for reliable fit and performance.
- Serviceable Components – Replace high-wear items individually to keep crews moving and reduce downtime.
- Heavy-Duty Build – Designed for harsh underground and utility pulling environments.
- Optional Alignment Arm – Sold separately; compatible with 5" sheaves only.
Available Replacement Parts (Matches Variant Options)
| Component | Size / Fits | Part Number | Notes |
|---|---|---|---|

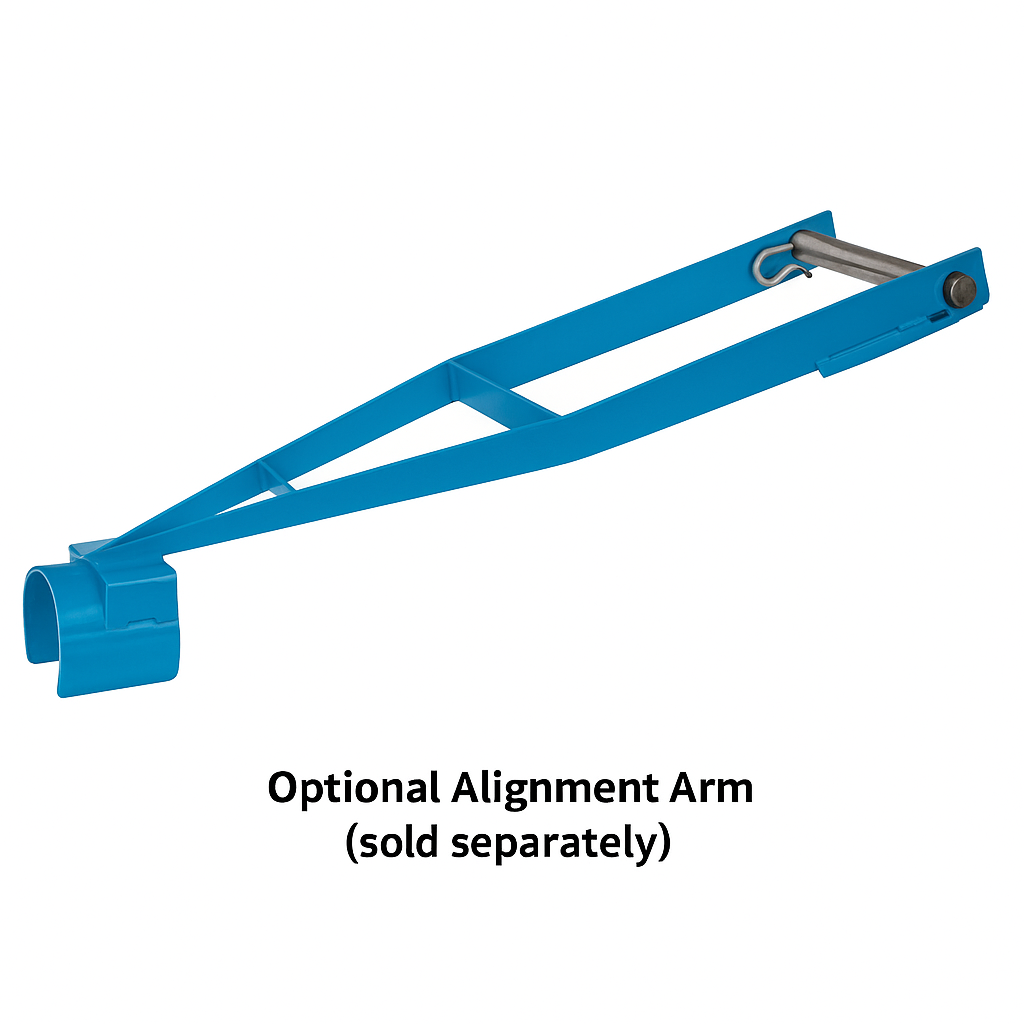

| Optional Alignment Arm (Sold Separately) | 5" sheaves only | 08045901 | Accessory item |

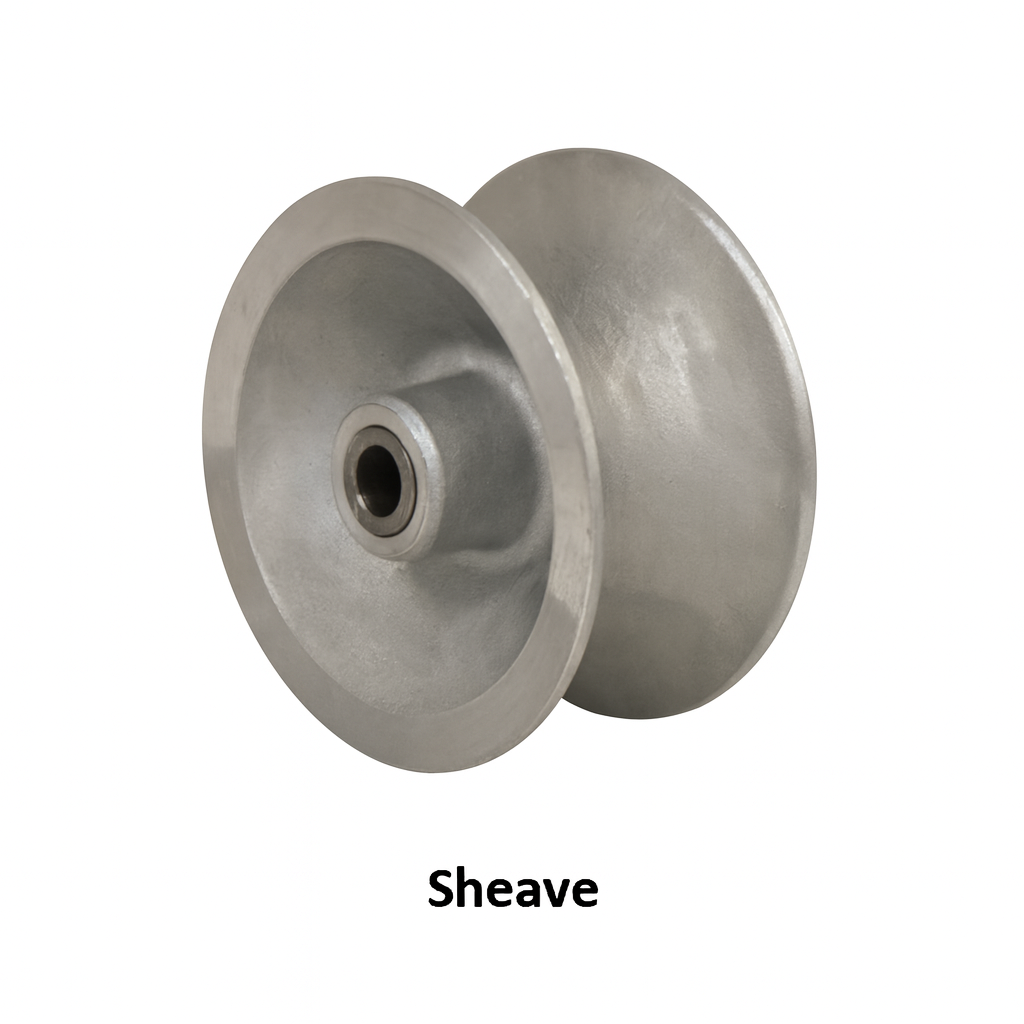

| Replacement Sheave | 5" × 20" | 08042735 | — |
| Replacement Sheave | 5" × 11" | 08042734 | Also used on 6" × 11" assemblies per manufacturer guidance |
| Replacement Sheave | 8" × 11" | 08042738 | — |

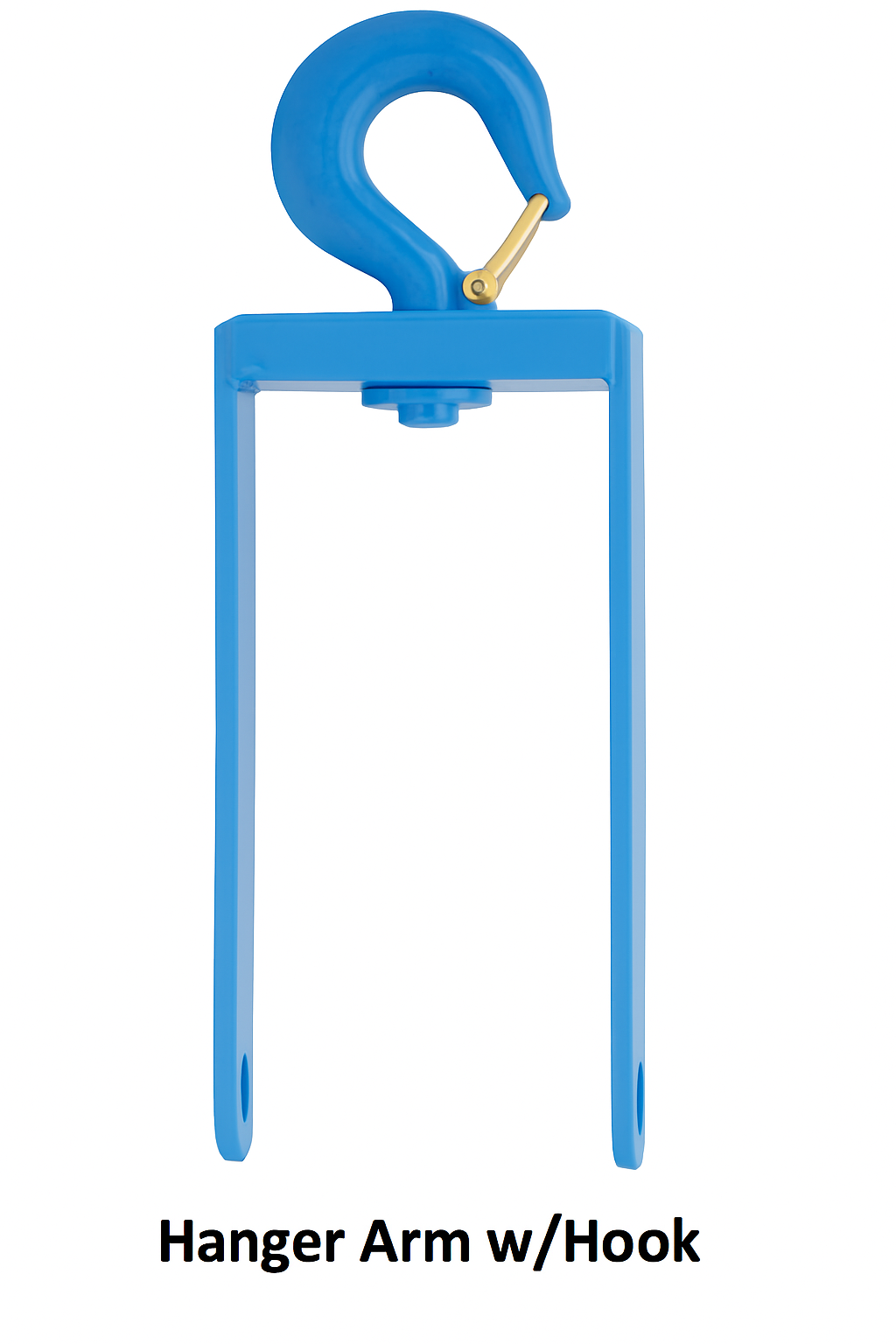

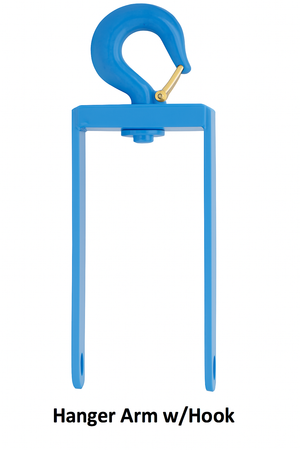

| Replacement Hanger Arm w/Hook | 5" × 11" | 08042801 | — |
| Replacement Hanger Arm w/Hook | 5" × 20" | 08042811 | — |
| Replacement Hanger Arm w/Hook | 8" × 11" | 08042841 | — |

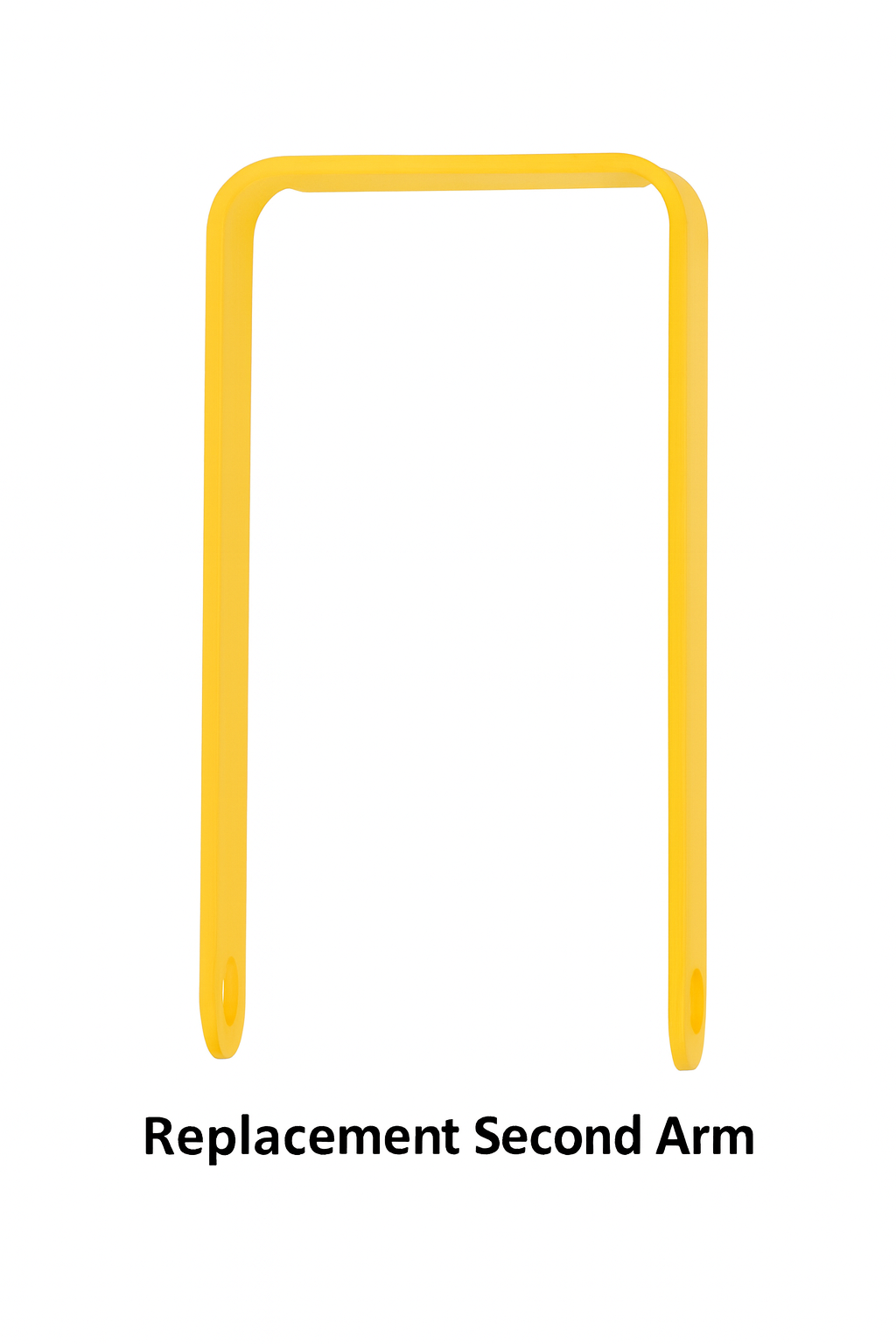

| Replacement Second Arm | 5" × 11" | 08042809 | Companion arm (no hook) |
| Replacement Second Arm | 5" × 20" | 08042819 | Companion arm (no hook) |
| Replacement Second Arm | 8" × 11" | 08042849 | Companion arm (no hook) |

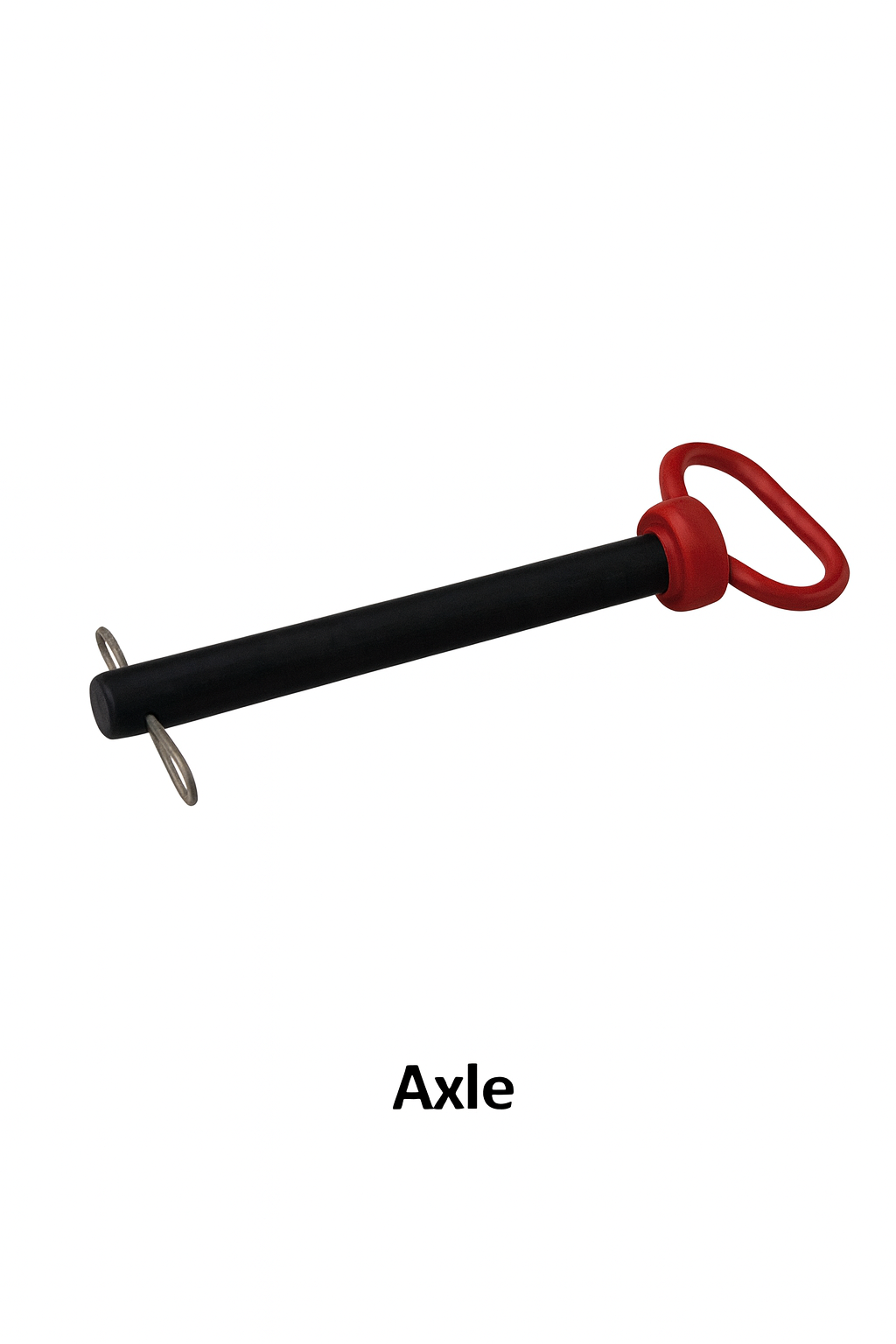

| Replacement Axle | Fits 5" × 11" & 5" × 20" | 02291808 | Shared axle for both 5" configurations |
| Replacement Axle | 8" × 11" | 02291809 | — |
Reference Fit Matrix (Assembly-Level)
Use this chart as a quick reference for which components pair together by sheave size.
| Sheave Size (in) | Sheave Size (mm) | Hanger Arm w/Hook | Second Arm | Axle | Sheave |
|---|---|---|---|---|---|
| 5 × 11 | 127 × 279 | 08042801 | 08042809 | 02291808 | 08042734 |
| 5 × 20 | 127 × 508 | 08042811 | 08042819 | 02291808 | 08042735 |
| 8 × 11 | 203 × 279 | 08042841 | 08042849 | 02291809 | 08042738 |
