Replacement Duct Adapters | Fiber Optic
$910.60
Unit price
/
Select Option
Each

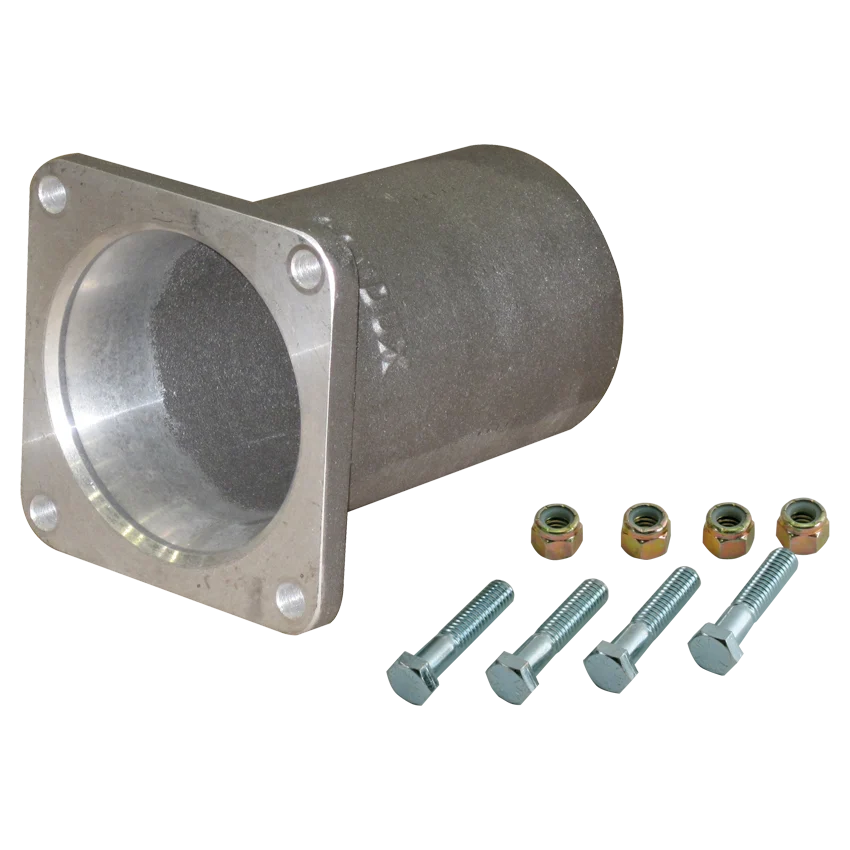

Duct Adapters | Includes Mounting Bolts | Flexible Cable Guides
Duct Adapters are designed for use with Condux flexible cable guides and provide a secure connection between the cable guide and duct system during fiber optic cable installation.
Each adapter includes mounting bolts and is available in multiple configurations to support different Flex Guide diameters and duct sizes. Select the correct adapter based on the required diameter and duct application.
Key Features
- Mounting Bolts Included – Each duct adapter includes the required mounting hardware for installation.
- Multiple Diameter Options – Available for 2", 4", 5", 6", and 8" Flex Guide sizes.
- Flexible Cable Guide Compatibility – Designed to connect Condux flexible cable guides with compatible duct systems.
- Replacement Applications – Suitable for replacement installations and maintenance of existing cable guide systems.
Ordering Information
| Part Number | Diameter (in) | Diameter (mm) | Duct Size (in) | Duct Size (mm) | OD (in) | OD (mm) | ID (in) | ID (mm) |
|---|---|---|---|---|---|---|---|---|
| 08931010 | 2 | 51 | 1.00 | 25 | 0.90 | 23 | 0.72 | 18 |
| 08931013 | 2 | 51 | 1.25 | 32 | 1.22 | 31 | 1.00 | 25 |
| 08931015 | 2 | 51 | 1.50 | 38 | 1.44 | 37 | 1.19 | 30 |
| 08931020 | 2 | 51 | 2.00 | 51 | 1.91 | 49 | 1.66 | 42 |
| 08934020 | 4 | 102 | 2.00 | 51 | 1.91 | 49 | 1.65 | 42 |
| 08934030 | 4 | 102 | 3.00 | 76 | 2.94 | 75 | 2.69 | 68 |
| 08934035 | 4 | 102 | 3.50 | 89 | 3.44 | 80 | 3.13 | 87 |
| 08934040 | 4 | 102 | 4.00 | 102 | 3.94 | 100 | 3.69 | 94 |
| 08935020 | 5 | 127 | 2.00 | 51 | 1.98 | 50 | 1.75 | 44 |
| 08935030 | 5 | 127 | 3.00 | 76 | 2.98 | 76 | 2.76 | 70 |
| 08935035 | 5 | 127 | 3.50 | 89 | 3.45 | 88 | 3.25 | 83 |
| 08935040 | 5 | 127 | 4.00 | 102 | 3.93 | 100 | 3.30 | 95 |
| 08935050 | 5 | 127 | 5.00 | 127 | 4.93 | 125 | 4.50 | 114 |
| 08936040 | 6 | 152 | 4.00 | 102 | 3.93 | 100 | 3.50 | 89 |
| 08936050 | 6 | 152 | 5.00 | 127 | 4.94 | 125 | 4.63 | 118 |
| 08936060 | 6 | 152 | 6.00 | 152 | 5.94 | 151 | 5.63 | 143 |
| 08988080 | 8 | 203 | 8.00 | 203 | 7.94 | 202 | 7.62 | 194 |
