Roller Guide for Duct Rodders | Conduit Accessory
$137.20
Unit price
/
Select Option

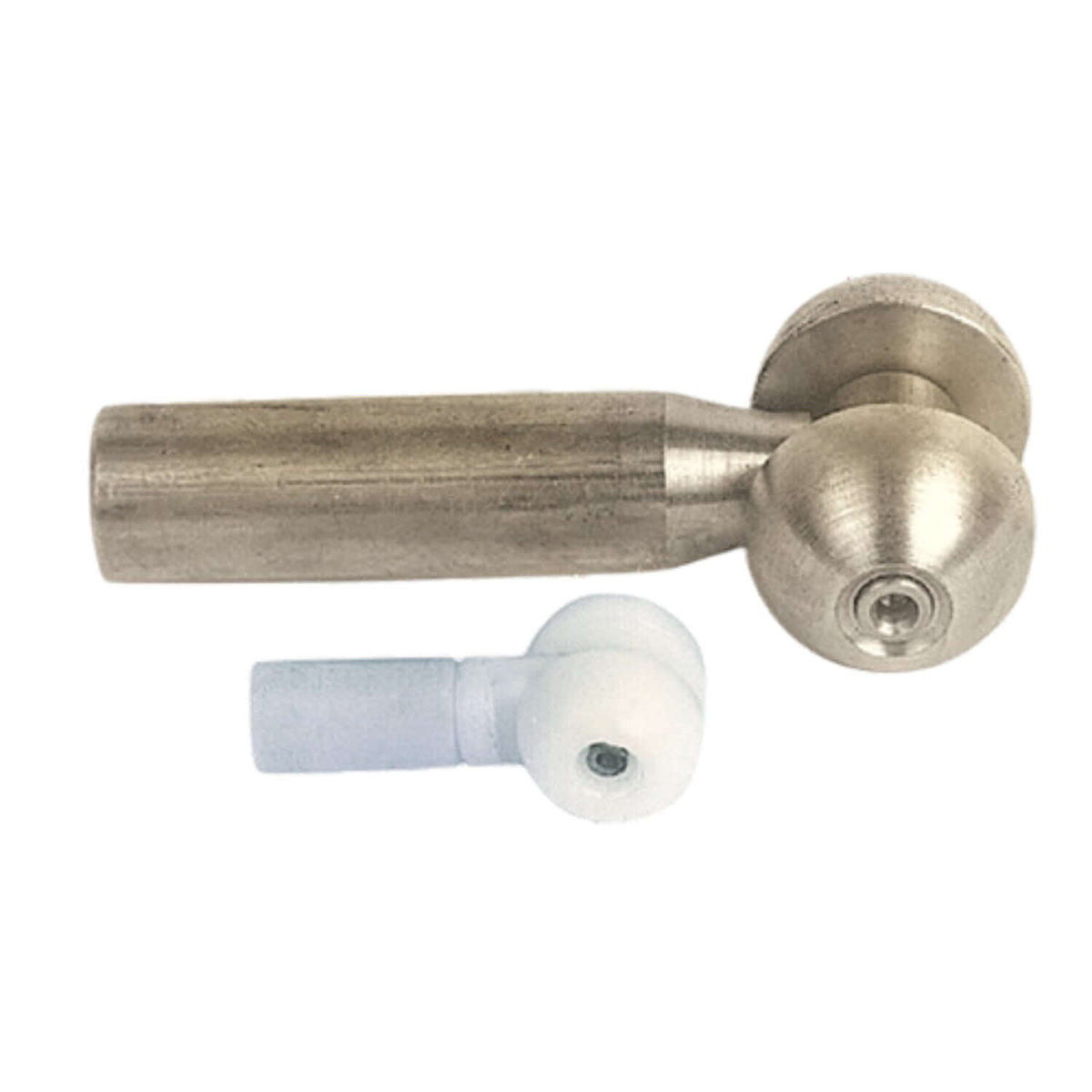

Roller Guide for Duct Rodders
The Roller Guide for Duct Rodders helps guide duct rod around bends, sweeps, and duct misalignments. It can also be used when the conduit is already occupied by other cables.
Key Features
- Guides Duct Rod: Helps the rod travel around bends, sweeps, and misaligned duct sections.
- Suitable for Occupied Conduit: Can be used when other cables are already present.
- Multiple Configurations: Available for several duct-rod diameters and conduit I.D. ranges.
- Select by Application: Match the USC thread, rod diameter, and duct range to your duct rodder setup.
Ordering Information
| Part Number | USC Thread | Rod Diameter (in) | Duct Range I.D. (in) |
|---|---|---|---|
| 08037430 | #12-24 | 3/16 | 0.50–1.25 |
| 08037440 | 5/16-18 | 1/4 | 1.00–2.50 |
| 08037460 | 3/8-16 | 5/16 | 1.50–6.00 |
| 08037401 | 3/8-16 | 5/16 | 2.50–6.00 |
| 08037401 | 3/8-16 | 7/16 | 2.50–6.00 |
| 08037401 | 3/8-16 | 1/2 | 3.00+ |
