Stainless Steel 90° Flex Connectors | Type 316 | Polished Brite Finish | NEMA 4X | High-Temp Rated

Stainless Steel 90° Flex Connectors | Type 316 | Polished Brite Finish | NEMA 4X | High-Temp Rated

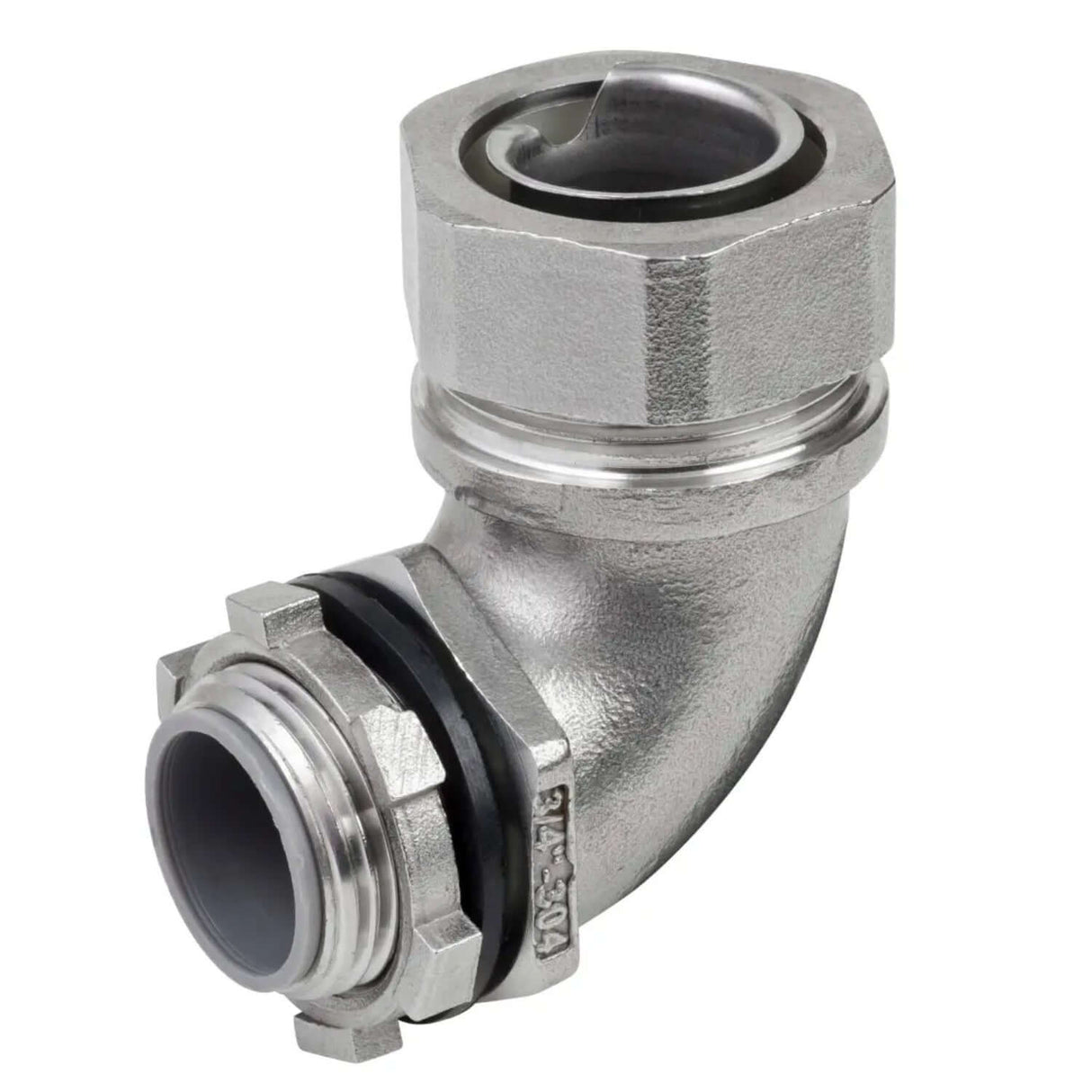

Stainless Steel 90° Flex Connectors provide a secure, corrosion-resistant connection between stainless flexible conduit and other fittings at a 90° angle. Manufactured from Type 316 stainless steel, these connectors ensure exceptional performance, cleanliness, and reliability in environments where hygiene and durability are critical. They are ideal for use in food processing, pharmaceutical, and industrial applications that demand contamination-free conduit systems.

Key Features & Benefits

• Premium Type 316 Stainless Steel: Offers superior corrosion resistance and mechanical strength for long-term performance in harsh or sanitary environments.
• Polished “Brite” Finish: Enhances corrosion resistance while maintaining a professional, clean appearance.
• Complete Assembly: Includes Neoprene O-ring and 316 stainless steel locknut for a secure and reliable installation.
• Standard NPT Threads: Tapered threads allow for quick, easy, and leak-free connection.
• Damp Location Approved: Designed for use with Calbrite PVC and Clear-Coated Stainless Flex Conduit to prevent contamination from oils, dirt, and moisture.
• High-Temperature Ratings: Stainless body up to 1700°F; internal components withstand up to 600°F.

Certifications & Compliance

• NEMA 4X Approved for corrosion-resistant performance in harsh and wet conditions.
• Temperature Ratings:
• Stainless Steel Body – 1700°F
• Insulated Throat (Gray) – 350°F
• Plastic Ferrule (White) – 450°F
• Neoprene O-Ring – 600°F

Applications

• Connects stainless flexible conduit to fittings at a 90° angle.
• Protects electrical wiring in pumps, motors, HVAC systems, and enclosures.
• Used in food, beverage, and pharmaceutical facilities requiring sanitary, sealed conduit systems.
• Suitable for marine, wastewater, and other corrosive or damp environments.

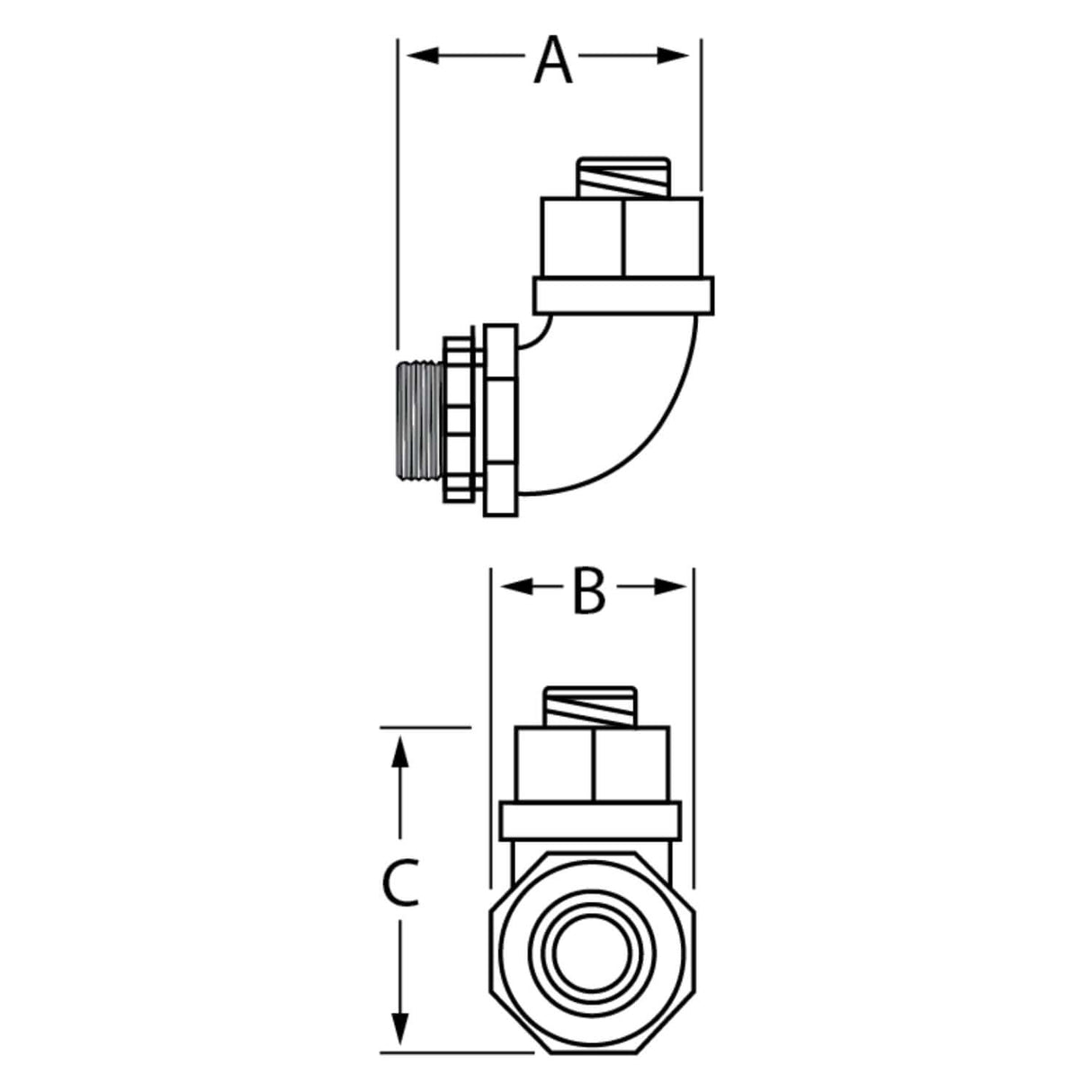

Dimensional Data
