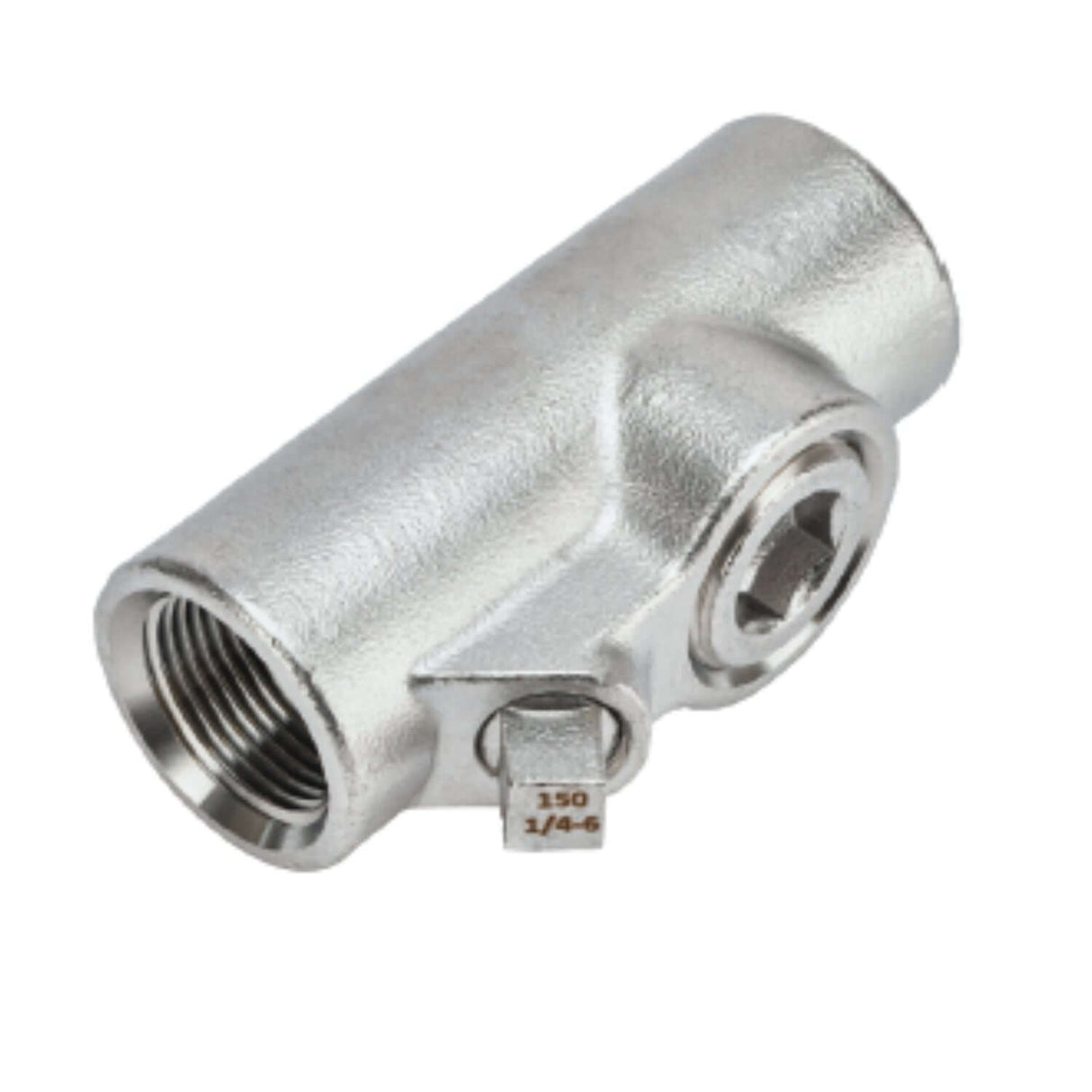

Stainless Steel EYS (Seal-Off) Hazardous Location Fittings are designed to prevent the passage of gases or vapors through conduit systems in explosive environments. Made from Type 316 stainless steel, these fittings provide exceptional corrosion resistance and mechanical strength, ensuring safety and long-term reliability in both industrial and sanitary settings.
Engineered for use in Class I, II, and III hazardous locations, these fittings are UL 1203 and CSA C22.2 listed for explosion-proof and dust-ignition-proof performance. The large access opening simplifies packing of sealing compound and fiber dam, allowing for efficient installation and inspection. Their polished “brite” finish provides superior resistance to corrosion and an easy-to-clean surface ideal for hygienic or outdoor environments.
Key Features & Benefits
- Explosion-Proof & Dust-Ignition Proof: Prevents gas or vapor transmission through conduit systems, ensuring safe operation in volatile environments.
- Premium Type 316 Stainless Steel: Provides maximum corrosion resistance, perfect for chemical, marine, and food-processing facilities.
- Easy Installation: Large access port simplifies sealing compound application and maintenance for both horizontal and vertical installations.
- Polished “Brite” Finish: Enhances corrosion protection while providing a professional, clean appearance.
- Certified for Hazardous Areas: UL 1203 and CSA C22.2 listed for use in Class I, II, and III Div. 1 & 2 environments.
Certifications & Compliance
- UL 1203 Listed (File #E465422)
- CSA C22.2 Listed
- Approved for:
- Class I, Div. 1 & 2 — Groups A, B, C, D
- Class II, Div. 1 & 2 — Groups E, F, G
- Class III — Dust-laden or ignitable fiber environments
Applications
- Used to prevent gas and vapor migration through conduit systems
- Ideal for vertical or horizontal installations in hazardous environments
- Common in oil & gas, chemical, manufacturing, and food-processing industries
Dimensional Data
| Part Number | Trade Size (in) | Overall Length (in) | Overall Width (in) | Overall Height (in) | Sealing Compound (oz) | Small Plug Hole (in) | Large Plug Hole (in) | Weight (lb/ea) |
|---|---|---|---|---|---|---|---|---|
| S60700EYS0 | 3/4 | 3.500 | 1.380 | 2.100 | 1½ | 0.470 | 0.920 | 0.880 |
| S61000EYS0 | 1 | 3.760 | 1.650 | 2.370 | 2 | 0.470 | 0.920 | 1.180 |
