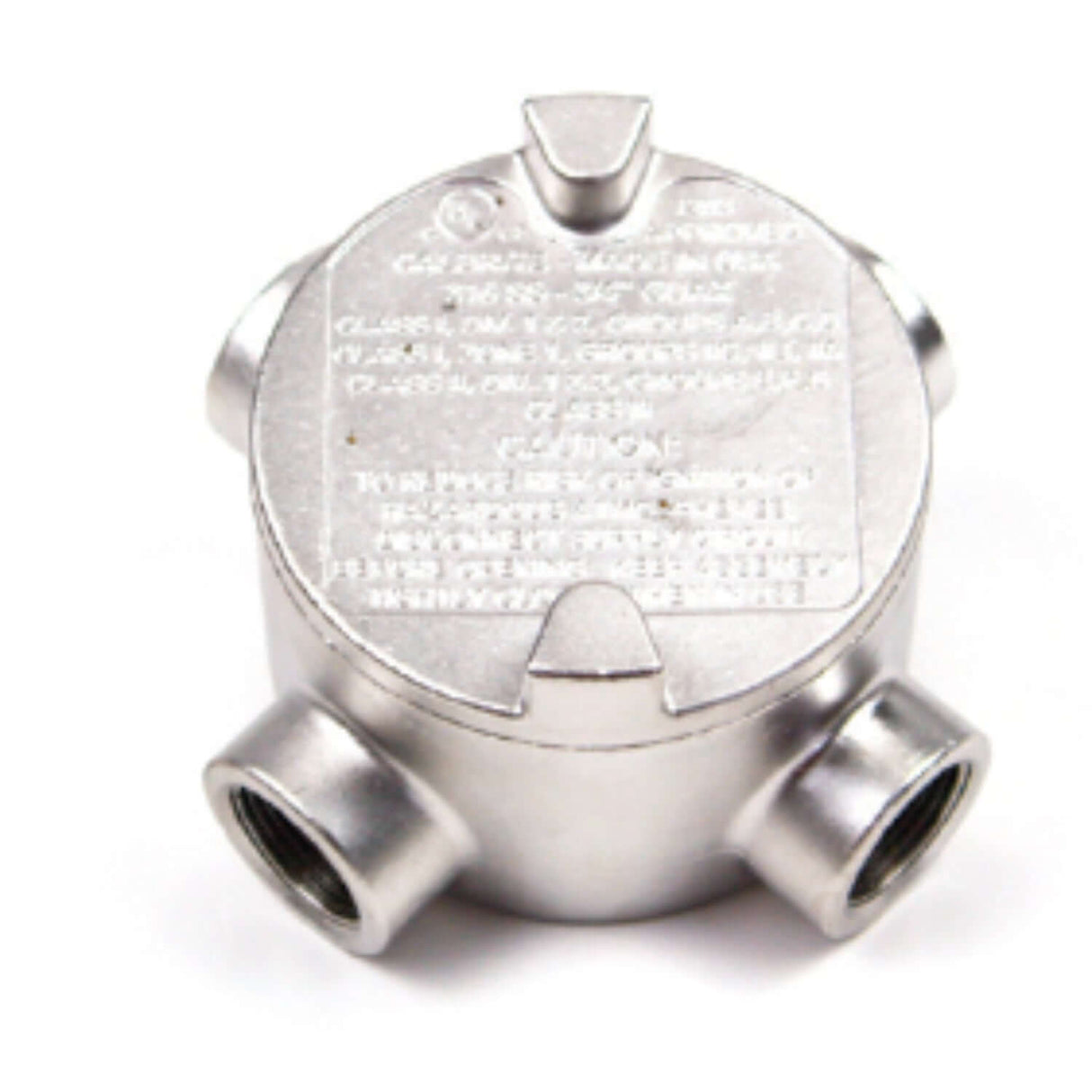

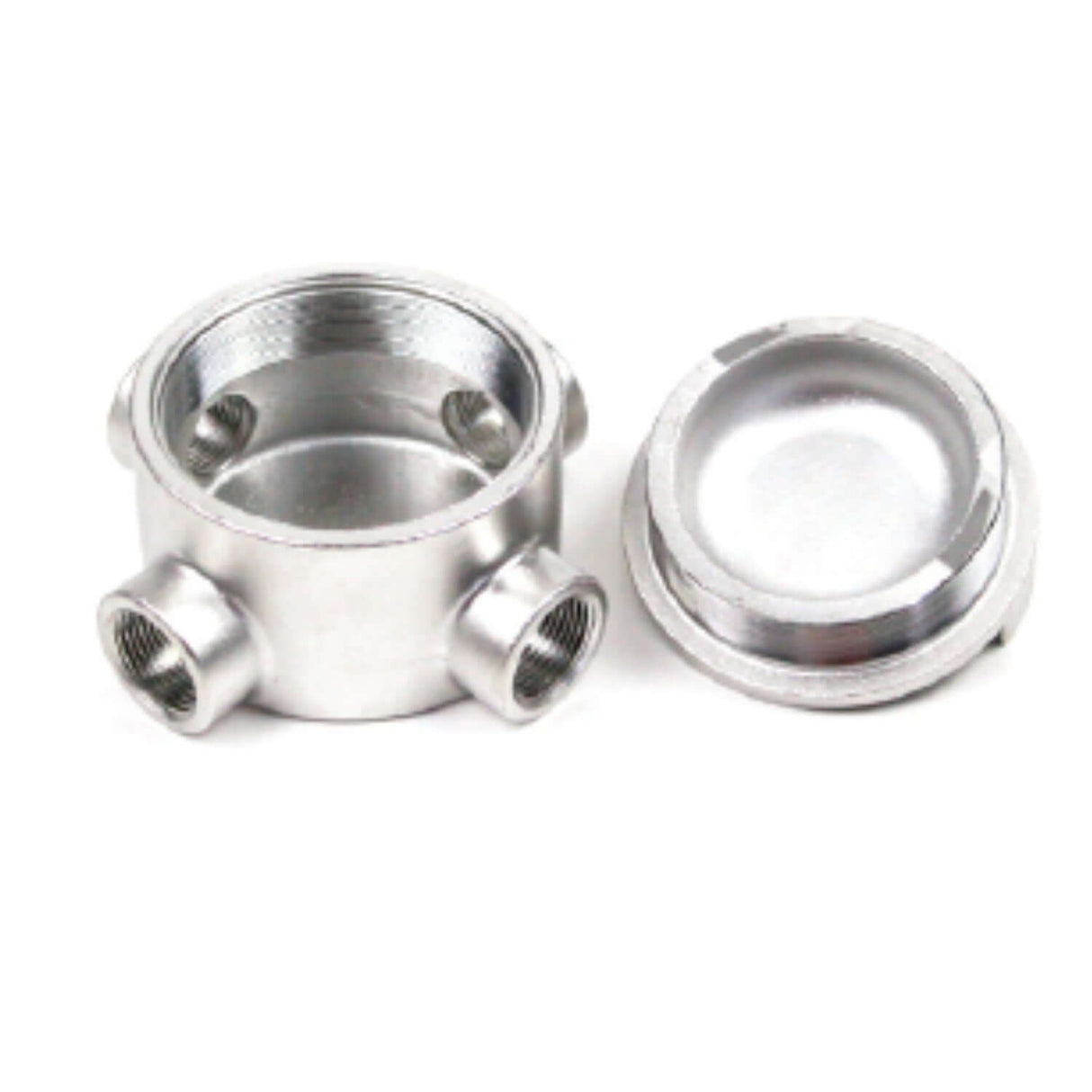

Stainless Steel GUAX Hazardous Location Outlet Boxes | Type 316 | UL 1203 & CSA Listed | Explosion-Proof
Stainless Steel GUAX Hazardous Location Outlet Boxes | Type 316 | UL 1203 & CSA Listed | Explosion-Proof
Stainless Steel GUAX Hazardous Location Outlet Boxes are built to deliver maximum safety and corrosion resistance in explosive and demanding environments. Manufactured from Type 316 stainless steel, these outlet boxes provide secure conduit connections and easy access for maintenance, upgrades, or directional changes. Ideal for critical industrial, commercial, and sanitary applications, they ensure reliability in both wet and hazardous conditions.
These boxes are UL 1203 and CSA C22.2 listed for explosion-proof and dust-ignition-proof performance, making them suitable for Class I, II, and III environments. The machined tapered female threads offer a smooth bore inside diameter for precise fitment with stainless threaded conduit, while the integrated tightening ears simplify installation and removal. A grounding screw and neoprene O-ring are included to ensure proper grounding and sealing.
Key Features & Benefits
- Explosion-Proof & Dust-Ignition Proof: Certified for hazardous locations, providing superior safety and reliability in explosive and combustible environments.
- Premium Type 316 Stainless Steel: Delivers unmatched corrosion resistance and performance under extreme environmental conditions.
- Polished “Brite” Finish: Enhances corrosion protection while maintaining a clean, professional aesthetic.
- Easy Maintenance: Cast-in tightening ears enable quick access for inspection or modification without added tools.
- Grounding & Sealing Included: Comes complete with grounding screw and neoprene O-ring for secure and watertight installation.
Certifications & Compliance
- UL 1203 Listed (File #E468171)
- CSA C22.2 Listed
- Rated for use in:
- Class I, Div. 1 & 2 — Groups A, B, C, D
- Class II, Div. 1 & 2 — Groups E, F, G
- Class III — Dust-laden or ignitable fiber environments
Applications
- Joining and protecting conduit in hazardous areas
- Making directional conduit changes or system extensions
- Providing access points for wiring, upgrades, or maintenance
- Use in refineries, chemical plants, wastewater facilities, and food processing environments

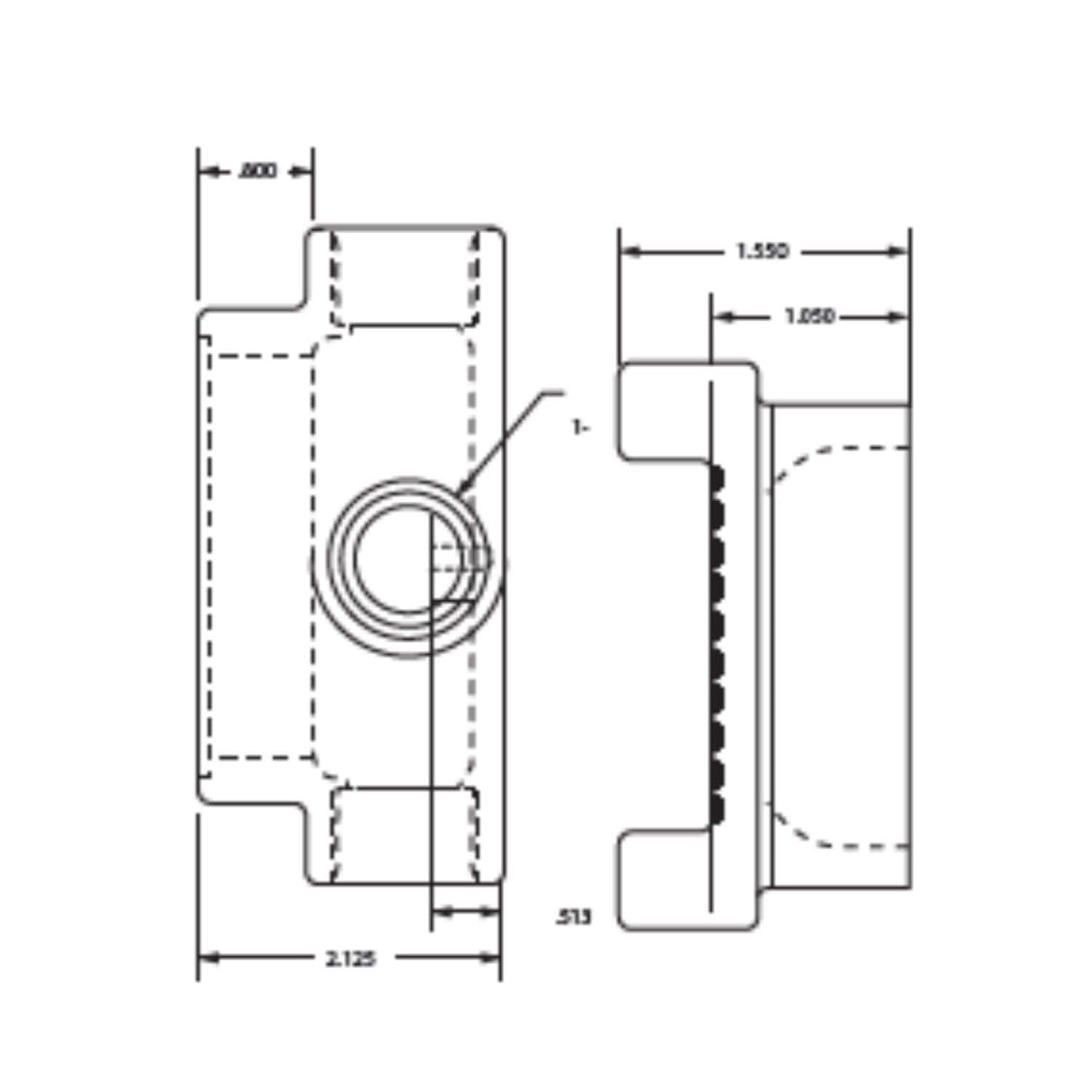

Dimensional Data
| Part Number | Trade Size (in) | Overall Length (in) | Overall Width (in) | Overall Height (in) | Weight (lb/ea) |
|---|---|---|---|---|---|
| S60700GUAX | 3/4 | 4.750 | 4.750 | 3.020 | 3.640 |
| S61000GUAX | 1 | 5.080 | 5.080 | 3.100 | 4.060 |
